Building Time Attendance Swing Gate Turnstile , Swipe Card Speed Gate Systems

Categories Speed Gate Turnstile
Brand Name: Goldantell
Model Number: GAT-646
Certification: CE/ROHS/FCC/IS9001
Place of Origin: Guangdong,China
MOQ: 1pc
Price: negotiation
Payment Terms: T/T ,western Union,LC,Paypal
Supply Ability: 2,000pcs per month
Delivery Time: 7 working days after received your payment
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Product Name: Time Attendance Swing Gate
Material: 304 stainless steel/316 stainless steel
Net weight: 70KG/PC
Gross weight: 80KG/PC
Application: office, building, hotel, club, etc.
Compatible: RFID Reader&Fingerprint Reader ,Coin access,QR code reader,Bar code System,ESD Tester Access Control, remote button
Color: Silvery
Delivery: By air or sea
Warranty: 2 years
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Building Time Attendance Swing Gate Turnstile , Swipe Card Speed Gate Systems


Office Time Attendance Swing Gate With LED Lights Swipe Card Biometric


Speedgate



Time Attendance Swing Gate Specifications

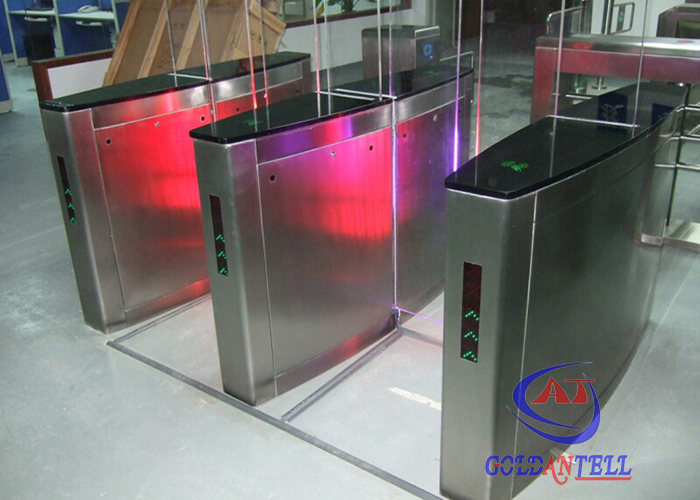

Goldantell product picture


Technical parameters



Housing material: domestic standard 304#

stainless steel, 2.0mm thickness

Processing technology: special secondary

processing


Working voltage: AC220±10%V 50±10%HZ


Drive motor: DC24V brush motor


Size: 1400mm (L) * 310mm (W) * 1000mm (H)


Retractable arm length: 235 mm


Passage width: 550 mm


Direction: single or bi-directional (optional)


Working environment: indoor/outdoor (with a tent over) -10℃~70℃

Relative humidity: ≤90% coagulation free


Time of opening/closing: 1 second


Pass speed: 40 persons/min (open), 25-30 persons/min (closed)


Time to work after power on: 3 seconds


Reset time after break down: 10 seconds


Normal running life: 3 million


Communication interface: standard RS485 interface, distance ≤1200m


Input interface: +12V level signal or pulse width>100ms 12V pulse, drive current>10mA

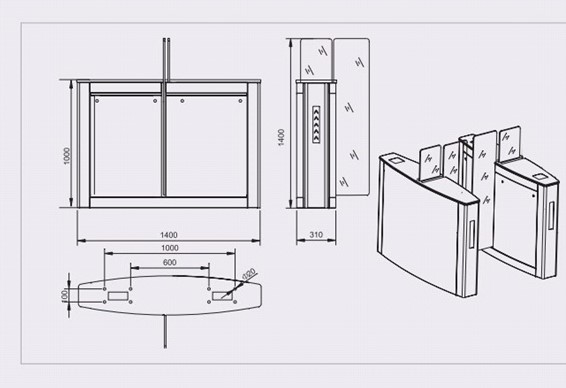

Appearance, Dimension, Material & Surface Finish


Appearance: customized according to customer’s requirement.


tainless steel thickness of the cabinet: customized within 1.2~2.0mm.


Material of the cabinet: 304 / 316 grade stainless steel.


Surface finish of the cabinet: satin finish / polishing / anti-fingerprint/frosted finish / electroplating / baking


finish.


System Integration


Integrate with access control system required by customers, and built-in reader appointed by customer.


Integrate with visitor management system.


Integrate with ticketing system.


Direction Indicator


The installation position of direction indicator can be adjusted.


The pattern of direction indicator can be customized.


Application


Subway Station, Bus Station,Airports, Hoverport, Terminal,Tourism Sports,Exhibition,


Hotel,Factory,Bank,Prison,Hospital,School,Library,Theater,Canteen,Swimming Hall,Fitness Gym,


Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Toll Management,Special


Access Control


Competitive Advantage


1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom


package.


2. we can provide not only product, but also system software management.Save your time and cost.


3. Special service from Goldantell:


For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if


spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any


fee.


4. Friendly and professional customer service people help you in 16 hours.
