Piezoelectric Transducer Ultrasound Ultrasonic Impedance Measuring Instrument 0.15 Deg Accuracy

Piezoelectric Transducer Ultrasound Ultrasonic Impedance Measuring Instrument 0.15 Deg Accuracy

Testing Piezoelectric Ultrasonic Transducer 0.15 Degree Phase Accuracy

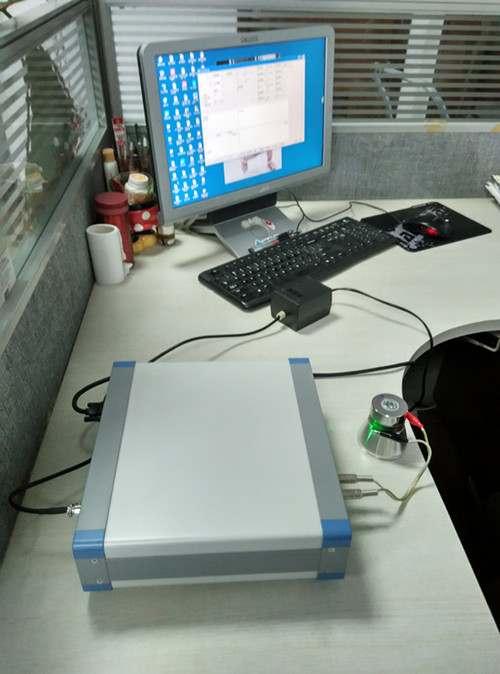

Chengcheng Weiye would like to present you the latest ultrasonic impedance analyzer to assist you in measuring specifications and testing performance of a variety of apparatus and equipment. The ultrasonic impedance analyzer is usually used to test transducer. Equivalent to HP 4294A precision analyzer, and it incorporates memory and storage functions, applicable for testing frequency, impedance and mechanical Q factor of transducer.

Frequency Range: 1KHZ-500Khz

Min.Frequency Step: 0.1HZ

Measurement accuracy: < 1%

Measurement speed: ten seconds per pieces(equivalent to 600 scan dots)

Frequency accuracy: ±15ppm

Phase Accuracy: 0.15 degree

Enviroment temperature: 10-40 cº

Impedance Range: 1Ω～1MΩ

Frequency step: 0.1Hz～any

Ultrasonic equipment testing, ultrasonic cleaning, ultrasonic welding, ultrasonic medical

Features of ultrasonic impedance analyzer

1. with the help of the ultrasonic transducer detector, ultrasonic welding equipment's condition can be easily tested by analyzing related specifications and graphs.

2.Ultrasonic cleaner requires the performances of vibrators keep as close as possible, and the transducer impedance analyzer can help conduct impedance analysis and measurement during the whole process of transducer and ultrasonic cleaner production.

3.The ultrasonic frequency impedance analyzer is also able to demarcate resonant impedance and static capacitance of ultrasonic cleaning equipment so as to better match ultrasonic generator. Besides, the multifuction detector is able to analyze its new resonance points, impedance, capacitance and vibration modal properties after the cleaning tank is full of water.

Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer specializing in ultrasonic transducers, ultrasonic apparatus and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.
Our headquarter is located in Beijing, China. Our manufacturing base is in Baoding, Hebei province. Cheng-cheng Weiye also has two branches in Shenzhen and Zhangjiagang and two sales agents in Japan and the USA. At present, there are five departments of the company comprising R&D, Production, Domestic Sale, Export and After-sales service.
We have close cooperation with the Institute of Acoustics, Chinese Academy of Sciences, Tsinghua University and other scientific research institutes and work together with many renowned experts in the ultrasonic industry within China. With a microcomputer control processing center and possession of advanced power ultrasonic inspection equipment (HP-4294A for example), our R&D capacity in the field of ultrasonic products is superior to that of our competitors.
All of our products are manufactured according to the ISO standard, ensuring our product quality and we were also awarded RoSH certification.
We energetically develop international markets while keeping our products in a strong competitive position with a large share of the domestic market. Currently, our products are exported to the United States, Australia, France, Slovakia, Turkey, Singapore, India and Hong Kong and other locations.
Relying on our strong technical ability in research and development in professional ultrasonics, we ensure our customers can feel confident in buying "Cheng-cheng Weiye" products.
We would like to create, together with you, a bright future in the ultrasonic application field.
