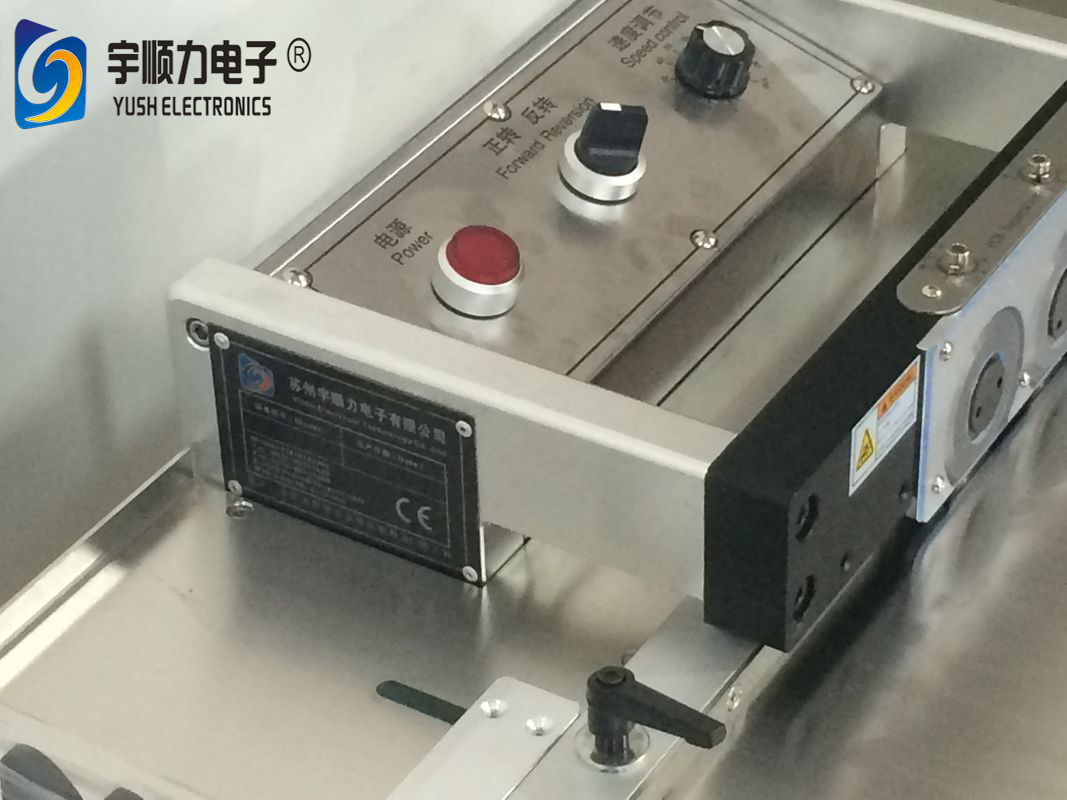

Circular Moving Separate Type PCB Prototyping Equipment Long Length Model

Circular moving separate type PCB Separator,pcb cutting machine Long length model

Machine Parameters

1. Maximum length of the board: unlimited

2. Thickness:0.6~3mm

3. Feed pcb Speed:80, 120, 200, 300mm/s

4. Material of blade :SKH7 HSS

5. Power supply: 220V/50HZ 40W

6. Operating temperature: 10~35℃

7. Can cut LED panel, fiberboard, aluminum board , FR4

8. Size: 540mm(L)*280mm(W)*240mm(H)

9. Weight: 40kg

10. Storage temperature: -20℃~50℃

Advantages

1. It is quite suitable for aluminum board.

2. It can cut the board without warping.

3. The stress is very low when cut board.

Features

1. For cutting any length v cut pcb, aluminum pcb, fiber board, FR4, LED pcb, pcba.

2. Threee pair of blades can guarantee the aluminum plate without deformation and damage after cutting.

3. Due to three times cutting, cutting process is smooth and can locate v cut very well to avoid v-cut jumping out.

4. High quality blade and samll cutting force ensures long life of blade.

5. Blades are calibrated by Excitation double-frequency laser interference measurement instrument, which can ensure rear and front blades cut same places of the v cut. Perfect cutting effect.

YSVC-3S secification pcb separator machine pcb separator machine

YUSH Electronic Technology Co.,Ltd  was founded in 2005,is located in the world manufacturing city Jiangsu,Guprofessional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team,half of them have over 10 years experience in electronic equipment industry.

Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine.From then on we pay more attention to product quality,safe to use and product innovation,so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.Up to now YuSH have became one of the biggest PCB separator production base in China.
