Categories | Transmission Line Stringing Tools |
---|---|
Place of Origin: | China |
Brand Name: | Boyu |
Certification: | ISO9001 |
Model Number: | TYSH80S,TYSZ3-1 |
MOQ: | 10 set |
Price: | Negotiable |
Packaging Details: | Container |
Delivery Time: | 25-35 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 100 sets/month |
Price Terms: | FOB(Shanghai) or CIF (assigned port) |
Wheel number: | 3 |
Material: | Nylon |
Rated load: | 5kn |
Weight: | 2.82kg |
Conductor size: | <=LGJ185 |
After sales service: | available |
Company Info. |
Yixing Boyu Electric Power Machinery Co.,LTD |
Verified Supplier |
View Contact Details |
Product List |
Tri-Bundle Stringing Block , Pulley Board Transmission Line Stringing Tools Nylon Wheel
Quick details:
1. Transmission Line Stringing Accessories and Tools
2. Three Wheels
3. Nylon Made Wheels
4. Conductor size:<=LGJ185
5. Weight: 2.82kg
6. Rated Load: 5kn
7. Boyu Brand
Description:
Tri-Bundle Stringing Block: Applied to one pull three bundle smallbore conductor in line construction ,and maximum applicable angle iron ∠90
Pulley Board : Hoisting block
Specification:
Model | rated load | weight | Conductor size | remark | |
TYSH80S | Tri-Bundle Stringing Block | 5kn | 2.82kg | <=LGJ185 | Nylon wheel |
TYSZ3-1 | Pulley Board | 10kn | 1.6kg |

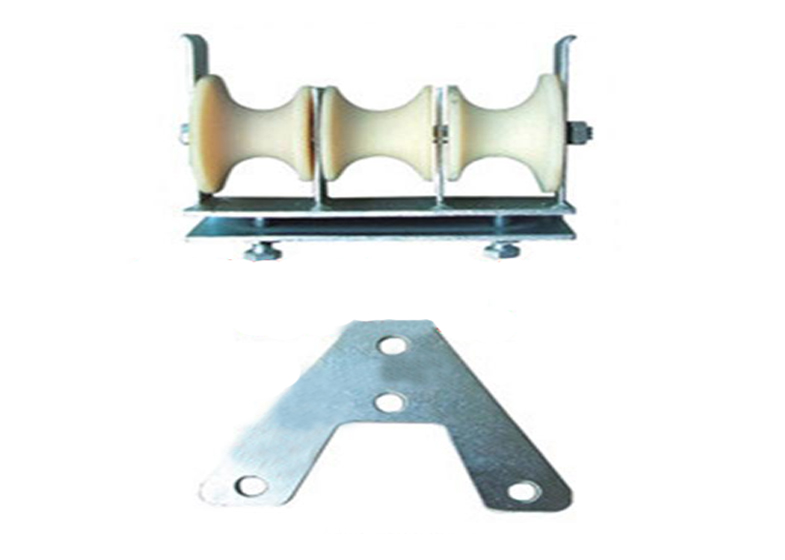

More pictures:
Tri-Bundle Stringing Block , Pulley Board Transmission Line Stringing Tools Nylon Wheel
![]() |
