FX 1-16 Refrigerant air dryers
FX refrigerant dryers - the smart choice
The benefits add up :
Solid performance
Steady pressure dew point
No freezing of condensed moisture
No chance of moisture entering the compressed air system.
Simple reliability
Quality components, generously sized
Simple and proven design
Effective control system (hot gas bypass).
Easy Installation
Plug and play concept
Single electrical connection
All units pre-commissioned
Self regulating.
Minimal maintenance
Long service intervals
Few component replacements
Ergonomic design for fast access to key components.
Significant cost savings
Increased reliability and lifetime of tools and equipment
Reduced pipe work leaks, meaning reduced energy bill
Fewer repairs to tools, machines and pipe work
Less inconvenient breakdowns and stoppages
Minimal chance of product spoilage through moisture carryover.

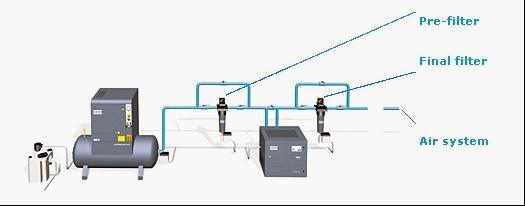

Air purification
No installation is complete without filtration
Technical data
Technical specification : 50 Hz version
| Outlet pressure dew point | Maximum working pressure | ||||
| + 5 °C / 41 °F | + 3 °C / 37 °F | ||||
| Inlet capacity | Pressure drop | Inlet capacity | Pressure drop | ||
| m³/min | bar | m³/min | bar | ||
| FX 1 | 0.42 | 0.2 | 0.36 | 0.15 | |
| FX 2 | 0.72 | 0.33 | 0.6 | 0.25 | |
| FX 3 | 0.96 | 0.33 | 0.84 | 0.25 | |
| FX 4 | 1.38 | 0.33 | 1.2 | 0.25 | |
| FX 5 | 2.1 | 0.4 | 1.8 | 0.3 | |
| FX 6 | 2.7 | 0.42 | 2.34 | 0.32 | |
| FX 7 | 3.48 | 0.5 | 3 | 0.38 | |
| FX 8 | 4.15 | 0.24 | 3.6 | 0.18 | |
| FX 9 | 4.75 | 0.33 | 4.09 | 0.25 | |
| FX 10 | 6.01 | 0.24 | 5.23 | 0.18 | |
| FX 11 | 7.51 | 0.26 | 6.49 | 0.2 | |
| FX 12 | 8.89 | 0.36 | 7.69 | 0.27 | |
| FX 13 | 11.53 | 0.33 | 10.03 | 0.25 | |
| FX 14 | 13.82 | 0.4 | 12.02 | 0.3 | |
| FX 15 | 17.3 | 0.4 | 15.02 | 0.3 | |
| FX 16 | 20.73 | 0.4 | 18.02 | 0.3 | |
Filter selection
Model | Outlet pressure dew point | |||||||
+ 5 °C / 41 °F | + 3 °C / 37 °F | |||||||
Inlet capacity | Pre filter | After filter | Inlet capacity | Pre filter | After filter | |||
l/s | - | l/s | - | |||||
FX 1 | 7 | DD9 | PD9 | 6 | DD9 | PD9 | ||
FX 2 | 12 | DD17 | PD17 | 10 | DD17 | PD17 | ||
FX 3 | 16 | DD17 | PD17 | 14 | DD17 | PD17 | ||
FX 4 | 23 | DD32 | PD32 | 20 | DD32 | |||
|
