Brand Name: | IKB-MKB |
Model Number: | K-TEK-B83TP |
Certification: | CE, FCC, ROHS, IP65, IP68, ISO 9001-2015 |
Place of Origin: | Shenzhen, China |
MOQ: | 1pc |
Payment Terms: | Full payment in advance, Western Union, T/T, Paypal |
Supply Ability: | 3000psc/month |
Delivery Time: | ASAP Within 2 weeks upon payment confirmed |
Packaging Details: | Each keyboard to one box, several boxes to one carton. |
Material: | Metal stainless steel |
Colour: | Brushed stainless steel or Black |
Interface: | USB or PS/2 |
Panel mounting version: | Top panel mounting |
Layout: | Standard or any customized layout |
Keycoed: | Standard or any customized layout |
Company Info. |
Key Technology ( China ) Limited |
Verified Supplier |
View Contact Details |
Product List |

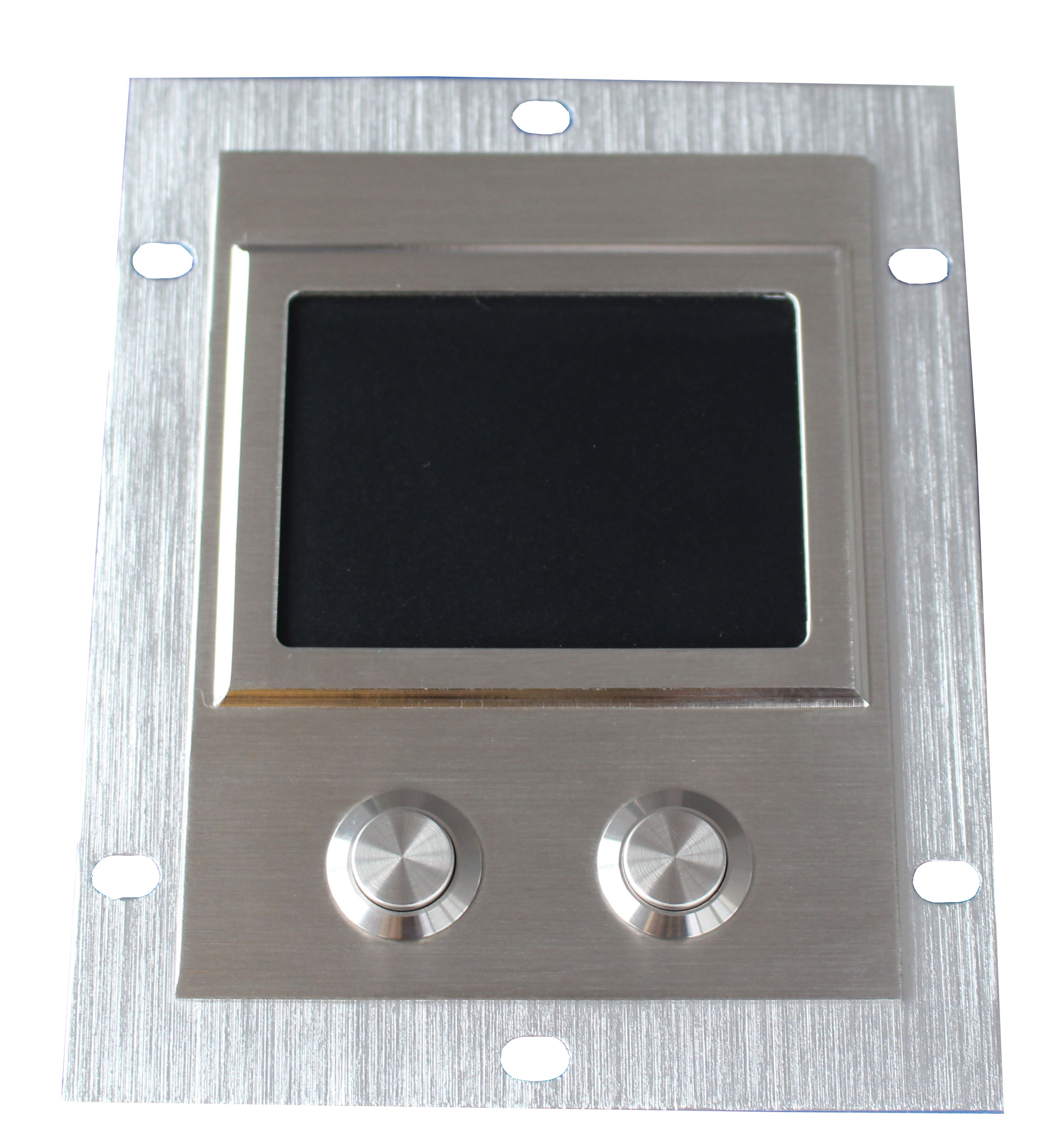

IP65 high sensitive industrial 304 steel touchpad with 2 short stroke key buttons
Main Features:
1. Rear stainless steel plate with mounting holes for rear panel mounting.
2. Any customized layout and keycode are warmly accepted.
3. with extremely good tactile feeling for fast and accurate data
input without any noise
4. IP65 explosion proof rear panel mounting industrial touchpad
with 2 short stroke key buttons
5. Plug and play USB or PS/2 interface was welcomed.
Application:
A: MILITARY: Army, Navy, Air force, Marine and Boating etc.
>
Specifications:
ITEM | SPECIFICATION | ||
Mechanical | Front Plate | Quality brushed stainless steel | |
Touchpad thickness | 1.3 mm PCB thickness inclusive of mylar layer | ||
Validated touch width | 46.50mm (max) | ||
Validated touch length | 62.50mm (max) | ||
Mounting Rack | Aluminum alloy | ||
Back Metal Cover | Rear side integrated electronics protected by a metal cover | ||
Touchpad lifespan | > 10 Mio times | ||
Dimensions | Touchpad: 65.0mm x 49.0mm; Front Mounting Panel: 83.0mm x 110.0mm (front panel), Rear Mounting Panel: 107.0mm x 134.0mm | ||
Interface | PS2 and USB both available | ||
Electrical | Power supply | 5V DC+ 10%, | |
Work current | 4.0 mA (normal) | ||
X/Y position sensing resolution: | 1000 points/inch (40 points/mm) | ||
X/Y position reporting: | Relative | ||
Tracking speed: | Maximum 1,016 m/sec | ||
Protection level: | IP65 dynamic (front panel) | ||
Static Release: | 15 KV (front panel) | ||
EMC Standard: | EN55022(B) | ||
Environmental | Operating temperature: | -20°C to +60°C | |
Storage temperature: | - 40°C to + 70°C | ||
Operating RH: | 10%-95% | ||
Atmospheric pressure: | 60-106Kpa | ||
Reliability | MTBF | >50000h | |
MTTR | < 30min | ||
Key switch lifespan | >5 million actuations | ||
OS | OS is under All windows, Linux, Unix, Mac OS9 / OSX | ||
Packing Details | Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. |
