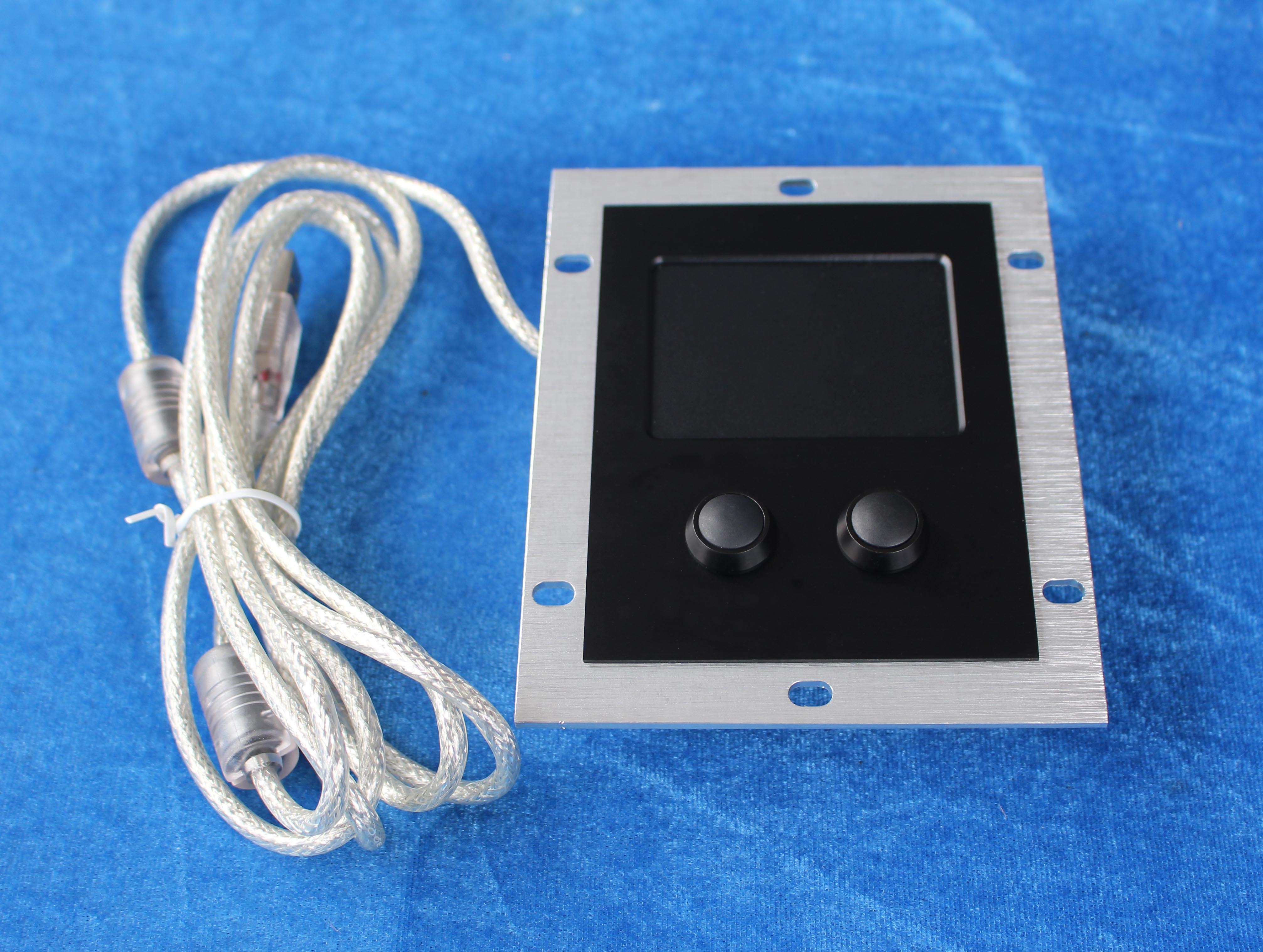

Rear Panel Mounting Industrial Touchpad Pointing Device With Mounting Holes
Main Features:
1. Rear panel-mounting
2. Compatible with WINDOWS98/ME/2000/XP
3. 2 buttons over the industrial touchpad
4. Designed to operate in harsh environments, making it ideal for
application in public place
5. Dust-proof and liquid-proof, IP65 waterproof
6. PS/2 or USB interface
7. IP65 Sealed and Ruggedized Touchpad with scroll function optional
8. CE, FCC, RoHS, IP65, ESD
Specifications:
ITEM | SPECIFICATION | ||
Mechanical | Front Plate | Quality brushed stainless steel | |
Touchpad thickness | 1.3 mm PCB thickness inclusive of mylar layer | ||
Validated touch width | 46.50mm (max) | ||
Validated touch length | 62.50mm (max) | ||
Mounting Rack | Aluminum alloy | ||
Back Metal Cover | Rear side integrated electronics protected by a metal cover | ||
Touchpad lifespan | > 10 Mio times | ||
Dimensions | Touchpad: 65.0mm x 49.0mm; Front Mounting Panel: 83.0mm x 110.0mm (front panel), Rear Mounting Panel: 107.0mm x 134.0mm | ||
Interface | PS2 and USB both available | ||
Electrical | Power supply | 5V DC+ 5%, | |
Work current | 4.0 mA (normal) | ||
X/Y position sensing resolution: | 1000 points/inch (40 points/mm) | ||
X/Y position reporting: | Relative | ||
Tracking speed: | Maximum 1,016 m/sec | ||
Protection level: | IP65 (front panel) | ||
Static Release: | 15 KV (front panel) | ||
EMC Standard: | EN55022(B) | ||
Environmental | Operating temperature: | -20°C to +60°C | |
Storage temperature: | - 30°C to + 70°C | ||
Operating RH: | 10%-95% | ||
Atmospheric pressure: | 60-106Kpa | ||
Reliability | MTBF | >20000h | |
MTTR | < 30min | ||
Key switch lifespan | >5 million actuations | ||
OS | OS is under All windows, Linux, Unix, Mac OS9 / OSX | ||
Packing Details | Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. |
![]() |
