Tensile Strength Single arm Textile Testing Equipment with Different grips

Electrical Tensile Strength Single arm Textile Testing Equipment with Different grips

Usage
It controlled by mictocomputer, displayed by LCD, printer ourputs reports.Used for testing breaking tenacity, elongation at break of single yarn made of cotton,wool,jute,corespun yarn etc,at the same time including synthetic fiber filament,textured yarns. Adopting a strength testing system of high accuracy and figure.

Standards

GB/T3916,14344;ISO2062;ASTMD2256,BS1932.Pt.2;DIN53842.1,53835.2; NF G07-002,302,310;KS K0409.

Feature

1. Dynamic Data Sampling Frequency is More than 800HZ, ease to catch peak value, most precisely indicate property of textile material.

2. Sharp blue LCD Panel, the operator simply selects the required test module and test standard;

3. A graphical icon on each button clearly illustrates its current function. This greatly simplifies the screen by only showing commands relevant to the current task.

4. Use Misbishi 16bit MCU, Misbishi 16bit A/D converter, more excellent anti-jamming, more rapid data transfer.

Advantages

1. Transmission mechanism uses ball screw, making it stable and accurate.

2. Adopt imported AC servo motor, low noise, micromanipulation.

3. Real-time and LED display of tensile curve.

4. Powerful ability to display, analyze and manage data.

4. LPT( line print terminal ) with print interface.

5. All types can be controlled by PC via lastest software.

6. All machines route are customizable.

7. Memory function when power failure, overload protection, position limit protection and auto return.

8. Adopt 24 bits high precise AD converter (Resolution reach to 1/10,000,000) and accurate load cell to ensure

fast and accurate data collection.

9. High degree of automation, Multi-function, flexible configuration.

Technical index

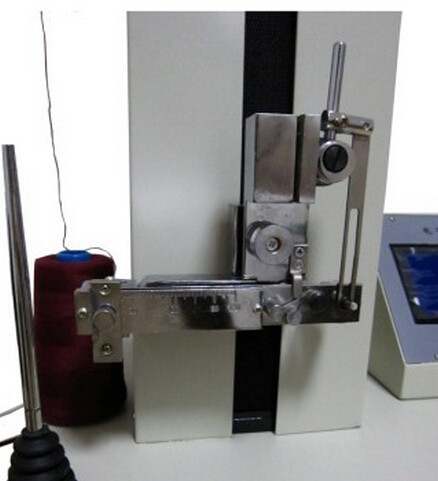

Grips
