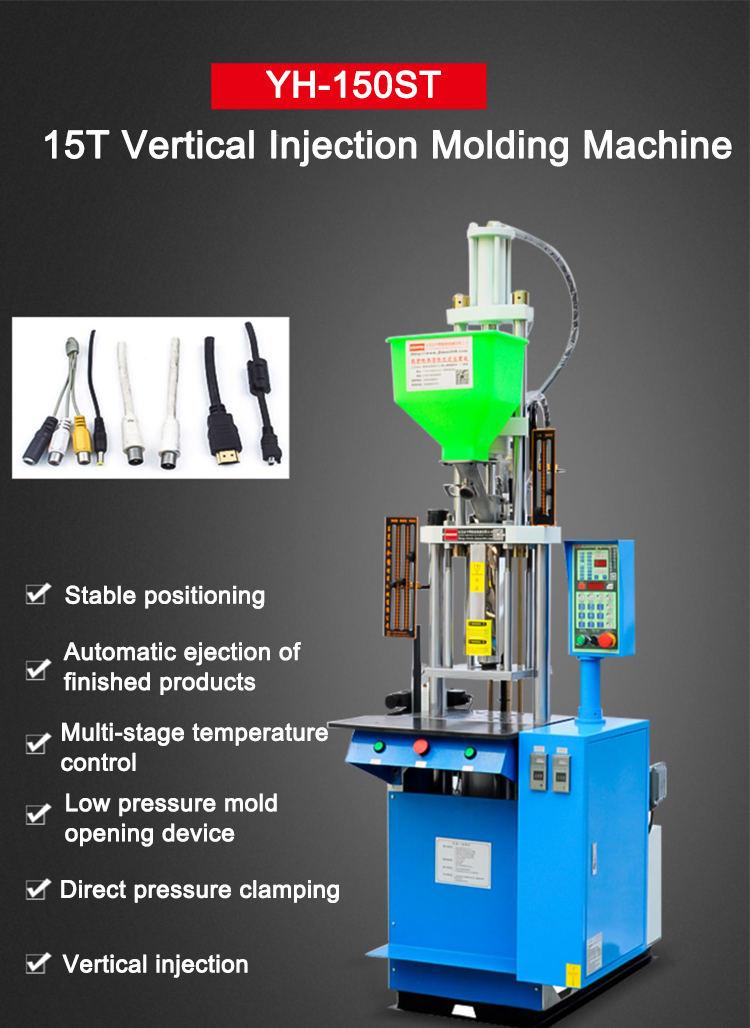

YH-150ST Automatic Vertical Injection Molding Machine for Micro USB and Type C USB

Categories	Cable Injection Molding Machine
Plastic Processed:	PP, PC, ABS, PVC, PE, PE/PP
Condition:	New
Style:	VERTICAL
Plasticizing Capacity(g/s):	41/57
Mold Height(mm):	60 - 160 mm
Ejector Stroke(mm):	120 mm
Ejector Force(kN):	15 kN
Theoretical Shot Volume(cm³):	65 cm³
Injection Rate (g/s):	57 g/s
Machine Type:	Hydraulic
Injection Weight (g):	57 g
Screw Speed (rpm):	1 - 230 rpm
Screw diameter (mm):	26 mm
Weight (KG):	820 kg
Place of Origin:	China
Open Stroke(mm):	200 mm
Power (kW):	3 kW
Warranty:	2 years
Key Selling Points:	High-accuracy
Applicable Industries:	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Energy & Mining
Showroom Location:	None
Machinery Test Report:	Not Available
Video outgoing-inspection:	Provided
Warranty of core components:	1 Year
Core Components:	Motor, PLC
Marketing Type:	Ordinary Product
Packaging Details:	Wooden package
Port:	shenzhen
Supply Ability:	1000 Set/Sets per Month
Price:	$4,000.00/sets 1-2 sets
MOQ:	1 set

Contact Now

Add to Cart

Company Info.

Yihan (shenzhen) Automation Equipment Co., Ltd.

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Parameter	Model	UNIT	YH-150ST		YH-200ST
Injection unit	Screw Diameter	mm	22	26	22	26	28
	Iniection Pressure	kg/cm2	1421	1018	1853	1328	1145
	(PS)Max.Shot Weight(PS)	g	40	51	41	57	66
	Injection Rate	mm	120		120
	Screw Speed Max.	Turn	0-230		0-255
	Nozzle Retraction	mm	--		135
	Number of temperature Control	Snt	2		2/3
Clamping unit	Clamping Force	Tons	15		25
	Platen Size	mm	465*280		490*320
	Distance Between Tie Bere	mm	290		320*160
	Min.Mold Height	mm	40/100		60/100
	Openging Stroke	mm	200		200
	Max. Open daylight	mm	240/300		260/300
	Ejetor Force	Tons	1.5		2
PowerHeading unit	Max. Hydaulic Pressure	kg/cm2	140		140
	Pump Outpet	1/min	23		28
	Pump Motor power	kw/HP	2.2/3.0HP		3.0/4.0HP
	Berrel Heating Power	kw	2		2
	Total Weight	kw	4.2		5.3
Other	Machine Weight	kg	820		1050
	Machine Dimensions(LWH)	m	1.30.92.3		1.40.92.4
