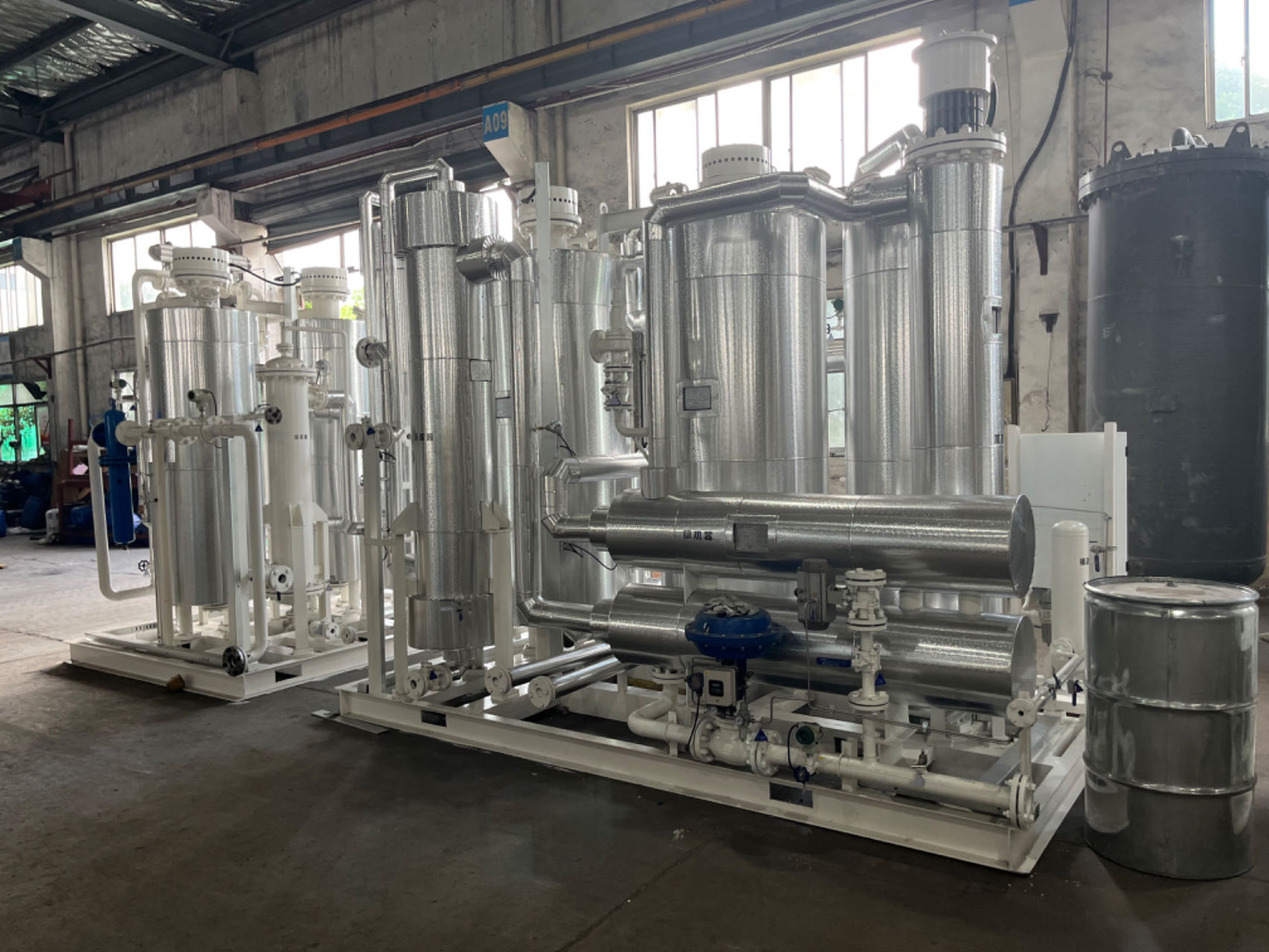

Stabilized Exhaust Gas Recovery System Purification Sled Argon Recovery Unit

Purification sled product introduction

Purification Sled,Argon Recovery Unit,Rare Gas Recovery

For initial removal of CO and O2 from crude argon. pry block structure and stabilized gas supply function.

The function of this system is to remove hydrocarbons, carbon monoxide, oxygen, carbon dioxide, moisture and other impurities from the exhaust gas. Its main equipment are:

• cooler: to reduce the temperature of the tail gas from ambient to below 15°C. 2. return heater: to combine the forward flow ambient temperature tail gas with the downstream flow out of the reactor;
• return heaters: exchanging the positive flow of normal temperature tail gas with the hot tail gas downstream from the reactor, recovering the waste heat of the gas;
• electric heater: to heat the flow gas to the required temperature point for catalytic reaction;
• catalytic decarbonization module: using special catalysts to catalyze carbon-containing compounds to carbon dioxide at a set reaction temperature.to carbon dioxide at a set reaction temperature.

The chemical reaction equation in the reactor is as follows:

2CO + O2 = 2CO2

CH4 + 2O2 = 2CO2 + 2H2O

• cooler: cools down the reacted crude argon to below 15°C. 6. decarburization, dehydration, and CO2 removal
• CO2 removal, dehydration module: the use of molecular sieve adsorption of CO2 and water in the crude argon, molecular sieve purification system adsorber consists of two molecular sieve purification system adsorbers.

Molecular sieve purification system adsorber consists of two molecular sieve adsorber, two molecular sieve adsorber a work, a heated dirty argon adsorber.

One of the two molecular sieve adsorbers is working, and the other is regenerated by the heated dirty argon gas. After the indicators are qualified, it enters into the next module

Shanghai Vision Energy Technology Co., Ltd has been focusing on the recovery and reuse of rare gas waste gas in domestic and international photovoltaic, semiconductor and chemical industry for many years, and has a number of core independent patents;

We are a qualified supplier of many multinational companies, domestic listed companies, central enterprises and top scientific research institutions.

Our customer's Contract satisfaction rate is 100%, and there is no any lawsuit and dispute.

We can provide customers with large or standard argon recovery devices.

What we stand for

Safe, environmentally friendly, and treating exhaust gases not as useless emissions but as a resource to be utilized

Our products pursue

Exhaust gas recycling and reuse can be done better than new purchase because:
1. Safe and environmentally friendly
2. Stable purity
3. Reliable supply
4. Lower cost

Main Business Segments

Gas Recycling Business - Helping Customers Reduce Costs and Increase Efficiency
Including: Argon AR, Hydrogen H2, Neon Ne, Helium He, Xenon Xe, Krypton Kr, natural gas LNG supply and recovery;

Exhaust gas treatment business - helping customers to save energy and reduce emissions
Includes: VOCs treatment business for coating industry exhaust, chemical industry exhaust, printing and dyeing industry exhaust; Meets China's national standards as well as local standards.

Wastewater treatment business -providing more economical solutions
Includes: wastewater treatment for industrial and mining enterprises, meeting China's national and local standards.
