| Categories | YOKOGAWA Transmitter |
|---|---|
| Brand Name: | YOKOGAWA |

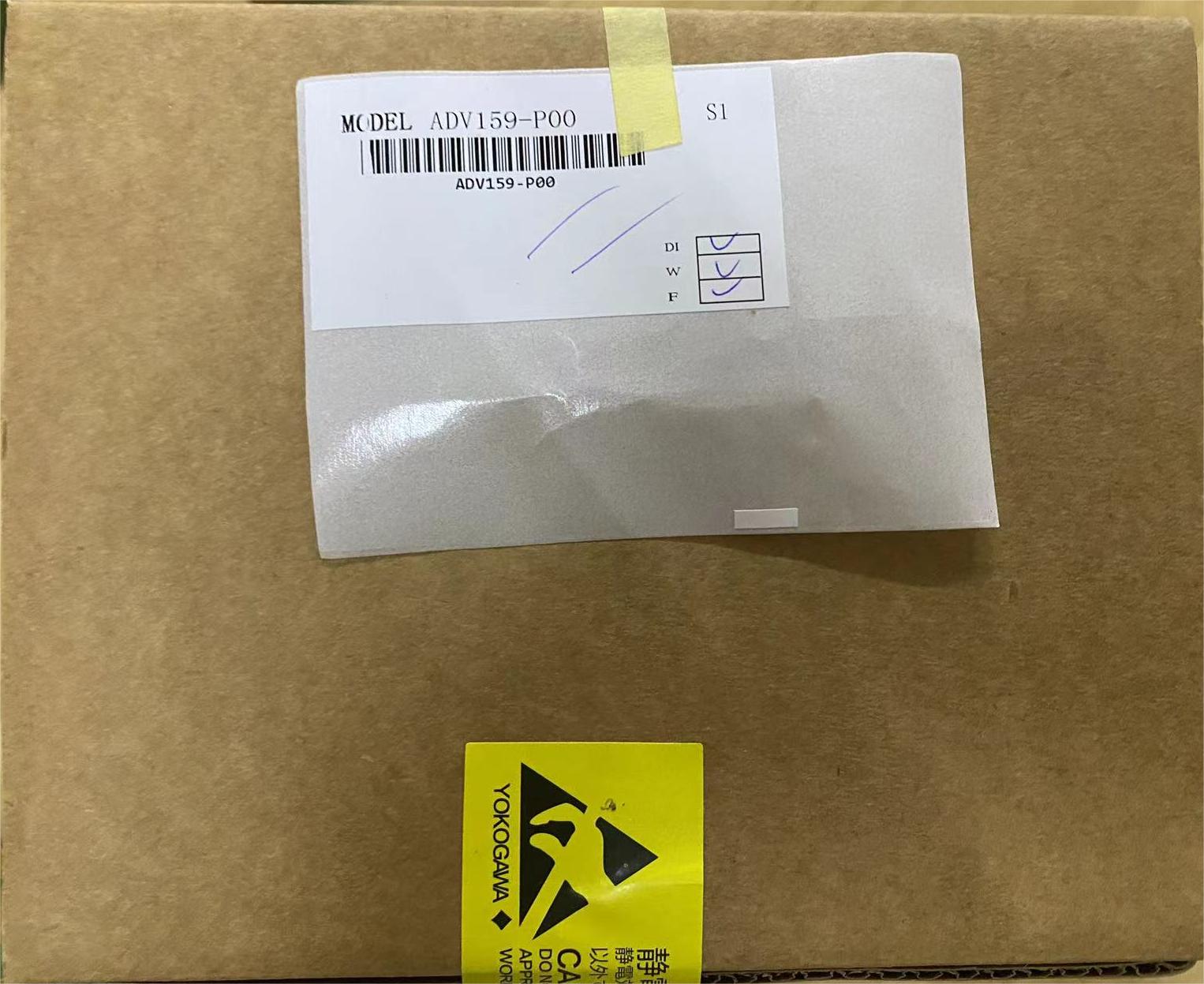

| Model Number: | ADV159-P00 |
| Certification: | CE |
| Place of Origin: | Indonesia |
| MOQ: | 1pc |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
| Delivery Time: | on request |
| Packaging Details: | standard carton packing |
| Manufacturers: | Yokogawa |
| Number of I/O channels: | 32-channel input |
| Signal isolation: | Isolated channels |
| Input contact rating: | 5 V DC, 20 mA or more |
| Pushbutton input function: | Supported |
| nput response time: | 8 ms (for status input) |
| Minimum ON detection time: | 20 ms (for pushbutton input) |
| Weight: | 0.4 kg |
| Company Info. |
| SC Automation Limited |
| Verified Supplier |
| View Contact Details |
| Product List |
The Digital I/O Modules (CENTUM-ST Compatible) receive contact or
voltage status signals from the field, and/or output status signals
to the field via transistor contacts.
| Item | Specifications | ||
| Model | ADV859 | ADV159 | ADV559 |
| Number of I/O channels | 16-channel input, 16-channel output | 32-channel input | 32-channel output |
| Signal isolation | Isolated channels | Isolated channels | Isolated channels |
Input signal | Contact input: OFF signal 100 kΩ or more ON signal 200 Ω or less Minimum current value when contact is short- circuited: 1.25 mA Voltage input: OFF signal 4.5 to 25 V DC ON signal ±1 V DC, 200 Ω or less | ||
| Input contact rating | 5 V DC, 20 mA or more |  | |
| Pushbutton input function | Not supported | Supported | – |
| Input response time | 8 ms (for status input) | 8 ms (for status input) |  |
| Minimum ON detection time | – | 20 ms (for pushbutton input) | – |
| Maximum ON/OFF cycle |  | 25 Hz (for pushbutton input) |  |
| Output signal | Transistor contact | – | Transistor contact |
| Output contact rating | Inductive load, resistive load: 30 V DC, 100 mA (*1) | – | Inductive load, resistive load: 30 V DC, 100 mA (*1) |
| Output response time | 16 ms or less | – | 16 ms or less |
| Pulse width | 8 ms to 7200 s |  | 8 ms to 7200 s |
| Pulse width resolution | 8 ms, add max. 1ms for ON/OFF delay time | 8 ms, add max. 1ms for ON/OFF delay time | |
Maximum current consumption | 450 mA (5 V DC) | 330 mA (5 V DC) | 570 mA (5 V DC) |
| Weight | 0.3 kg | 0.4 kg | 0.3 kg |
| External connection | Dedicated cable (KS2) | Dedicated cable (KS2) | Dedicated cable (KS2) |
| Compatible card | ST2 compatible | ST3 compatible | ST4 compatible |
