MC3051GP MC800 Instrument Pressure Transmitter Silicon Pressure Transducer

Model MC3051GP/MC800 diffused silicon pressure transmitter

The MC530/510 monocrystalline silicon pressure transmitter is assembled with a high precision and high stability chip with imported stainless steel isolation diaphragm.

The K series pressure transmitter adopts the international advanced level of diffused silicon sensor, with high-precision electronic components, and is assembled by a strict process. Give full play to the technical advantages of the sensor, so that the series of pressure transmitters have excellent technical performance. The transmitter has strong resistance to overload and shock, small temperature drift, high stability and high measurement accuracy.

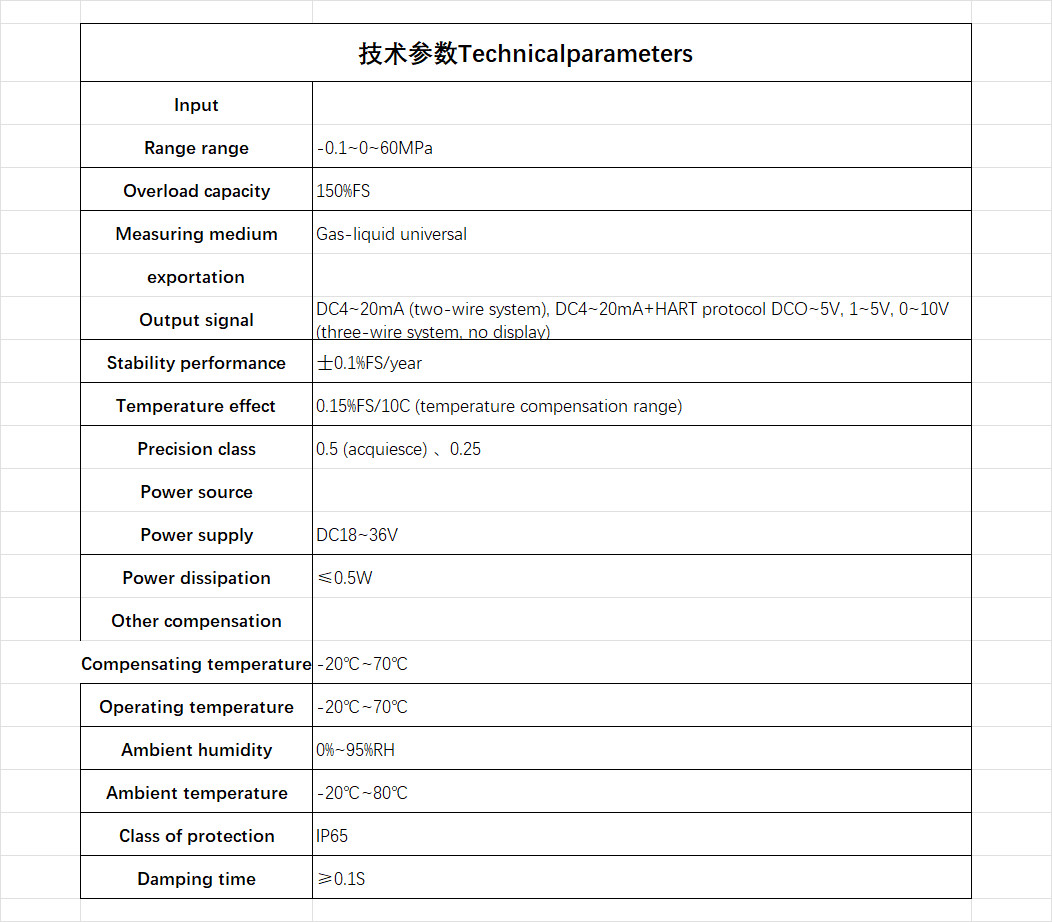

Performance parameter

1. Measuring medium: liquid, gas, steam, oil and other media compatible with 316

2. Measuring range:

Gauge pressure (G) - maximum (0~60)MPa, minimum (0~20)KPa;

Absolute pressure (A) a maximum of (0~40)MPa, minimum of (0~20)KPa;

Negative pressure (B) one (-0.1~40)MPa, minimum (-20)KPa;

3. Accuracy grade: 0.1%F·S 0.25%F·S 0.5%F·S;

4. Long-term stability: less than 0.25%F·S/ year, less than 0.5%F·S/ year;

5. Overload capacity: 2~5 times of the range

6. Working temperature :-40°C~80C; Supplement; Compensation temperature :-20C~70°C;

7. Power supply voltage :15-36VDC(24VDC);

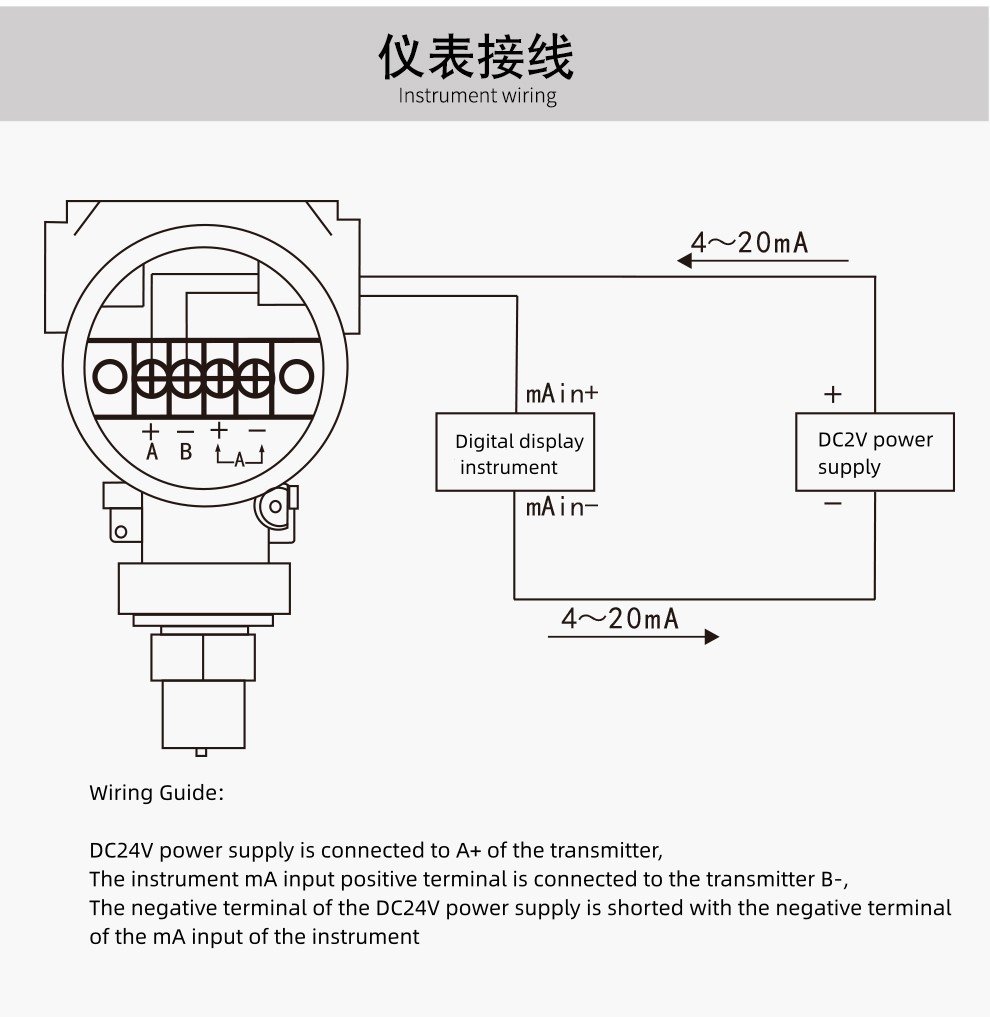

8. Output signal: (4~20) mA(two-wire system);

9. Display mode: Pointer head or digital display is optional;

10. Calibration: By adjusting the precision potentiometer to achieve zero and range adjustment;

11. Process connection :M20x1. Outer grain (middle 3 inner hole) or customized by user

Related function

High precision, good stability

Strong resistance to overload and shock

Strong anti-interference ability

Good temperature stability

Multiple process connection methods

Multiple processes link material

Imported diffused silicon core

Measuring medium: gas universal

Wide range, high cost performance

Pressure type: gauge pressure, negative pressure

18~36V wide voltage supply

IP65 protection rating

304 stainless steel pressure connection

314 diaphragm

Cast aluminum housing

Pressure inducer interface thread M20*1.5

Applicable operating temperature 0~120℃
