600W 700W 1200W 220V MPPT Solar Panel Inverter On Grid Tie IP65

600W 700W 1200W 220V MPPT Solar Panel Inverter On Grid Tie IP65

600W 700W 1200W 220V MPPT Solar Panel Inverter On Grid Tie IP65
600W 700W 1200W 220V MPPT Solar Panel Inverter On Grid Tie IP65
Categories Micro Solar Inverter
Place of Origin: Zhejiang, China
Brand Name: TTNergy
Model Number: WVC-700
Packaging Details: Carton box
Supply Ability: 2000 Piece/Pieces per Day
Price: $112.00/pieces 1-49 pieces
Input Voltage: 22-60V
Output Voltage: 110/230V autoswitch
Output Current: 5.9A/3.05A
Output Frequency: 50/60Hz
Output Type: Single
Size: 230*200*41.6mm
Type: DC/AC Inverters
Inverter Efficiency: 95%
Certificate: CE Rohs
Warranty: 5 years
Weight: 1.56Kg
Max input power: 800watt
DC Max short-circut current: 32A
Waterproof rating: IP65 standard 36v dc ac power inverter
Total harmonic distortion: <5%
Output Power: 1 - 200KW
Rated output power: 700w micro inverter
Night loss power: <1W
PV open circuit voltage: 30-60VDC
Contact Now
Company Info.
TTN New Energy Technology (Wenzhou) Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

600W 700W 1200W 220V MPPT Solar Panel Inverter On Grid Tie IP65

Products Description

TTNergy Micro inverter
Higher yields / Safe & Reliable / Smart / User-friendly
TTN New Energy's fifth-generation WVC series communication products adopt a waterproof streamlined design, which can better provide heat dissipation for the equipment. The built-in maximum power point tracking engine (MPPT) can better capture the changes in light, even in rainy weather, and it can capture and collect sunlight to the greatest extent. The inverter is compatible with a variety of conventional solar panels with an open circuit voltage of 22~60V, and through technical means, the panel can exert its best performance.
WVC series Grid-connected Smart Micro inverter * The output power of the product has the widest power range in the industry (300~2800W).
* Compatible with multi-region voltage range 85V-262VAC, dynamic adjustment frequency value 48-61Hz.
* Safety mechanisms: overload protection, overheating protection, short circuit protection, overvoltage protection, support hot swap.
* Equipped with the fifth-generation high-efficiency MPPT low-light capture engine, it still has excellent performance in extreme weather conditions.
* Built-in 433MHz channel communication module, with WVC-Modem can realize ultra-long distance communication.
* New IOT monitoring mode to realize point-to-point communication function.
model
WVC-700(R3)
Maximum input power
2*400W
Output voltage mode
120V/230V automatic switching
Solar panel open circuit voltage range
30-60V
Peak power tracking voltage
22-60V
Min/Max starting voltage
22-60V
Maximum DC short circuit current
32A
Maximum input working current
28A
Output parameters
@120V
@230V
Peak output power
750Watt
750Watt
Rated output power
700Watt
700Watt
Rated output current
5.9A
3.1A
Rated voltage range
80-160VAC
180-280VAC
Rated frequency range
48-51Hz/58-61Hz
48-51Hz/58-61Hz
Power Factor
>99%
>99%
Number of circuit connections per string
6 sets (single phase)
12 sets (single phase)
Output efficiency
@120V
@230V
Static MPPT efficiency
99.5%
99.5%
Maximum output efficiency
95%
95%
Power loss at night
<1w
<1w
Total harmonic distortion
<5%
<5%
Appearance and technical characteristics
range of working temperature
-40 ℃ to +65 ℃
Size(mm)
283*200*42
net weight
1.56kg
waterproof level
IP65
Cooling method
Self-cooling
Communication mode
433Mhz communication mode
Power transmission mode
Reverse transmission, load priority
surveillance system
Mobile App, Browser
Electromagnetic Compatibility
EN50081.Party EN50082.Party 1
Grid disturbance
EN61000-3-2 Safety Regulation 62109
Grid detection
DIN VDE 0126
certificate
CE, CEC, appearance patent
Package weight
specification
Single (packaging)
FCL (15 units)
Gross weight
2.8Kg
14.5Kg
Size(mm)
342*375*140
440*380*260
WVC series micro inverters have a total of 300W, 600W, 700W, 1200W, 1400W, 1600W, 2000W, 2400W, 2800W and other power options, please contact customer service.

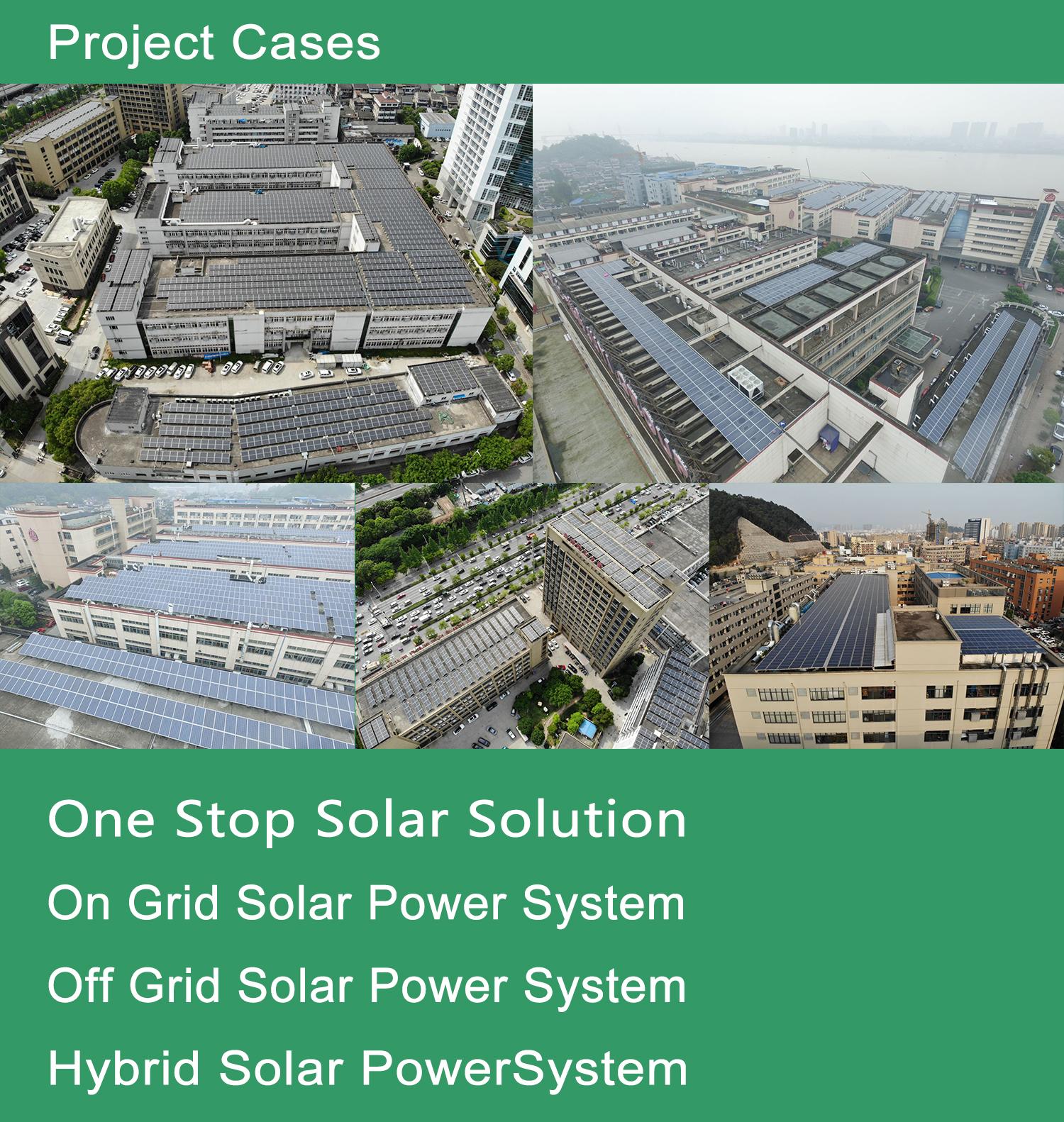

Projects
