RNA816T/826T High Precision Inclination Sensor Tiltmeter For Wind Power Monitoring

RNA816T/826T high-precision inclination sensor Tiltmeter for Wind power monitoring

▶ GENERAL INTRODUCTION

RNA816T/826T 100% homemade inclination sensor is a domestic product developed by RION for high-end users. All internal components are 100% domestic, including microcontroller, MEMS measurement unit, power circuit, signal circuit, etc.

​

▶ MAIN FEATURE

★ 100% parts localization

★ Resolution 0.0008°

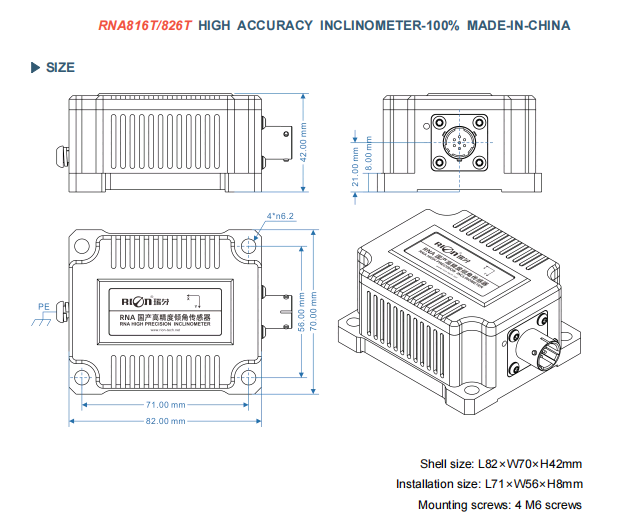

★Size: L82×W70×H42mm

★ DC 9～36V wide voltage input

★ Single-axis Y-axis range ±90°

★ Dual-axis range ±1～±60° optional

★ IP67 protection grade

★ Wide temperature operation -40～+85℃

★ Single/double axis inclination measurement

★ Output mode RS422, RS485 are optional

★ Horizontal/vertical installation modes are optional

▶ APPLICATION

★ Wind power monitoring

★ Bridge and Dadian monitoring

★ Ancient building monitoring

★ High-speed rail track monitoring

★ Ground satellite communication vehicles

★ Railway gauge ruler and gauge leveling

★ Satellite communication vehicle

★ Geological equipment tilt monitoring

★ Engineering vehicle levelin

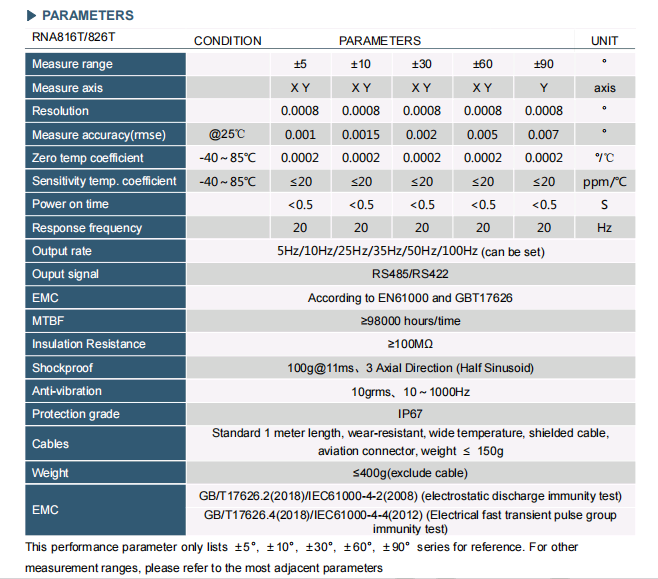

▶ PARAMETERS

Shenzhen Rion Technology Co., Limited(RION for short) is a high-tech company specialized in design and manufacturing MEMS inclinometer, 3D compass. RION has excellent developing team both in software and hardware. In hardware, RION has the ability of manufacture and test advanced inertial navigation and integrated navigation system by equipment such as marble test platform, high-low temperature chamber, super low temperature chamber, single/triple axis turntable, several high precise automatic indexing table, impact-vibration table, 3 axis non-magnetic calibration bench, special vehicle carried dynamic test device and so on. In software, our engineers are composed mainly by professional postgraduates, doctors. we develop the inclinometer, 3D anti-magnet compass etc in China. RION’s business covers the newest technology, tech-equipment and aerospace equipment, new energy, IOT, energy saving and so on. RION’s products are the core parts of automation, intelligence, informationization, digitalization with wide application in engineering machinery, intelligent robot, oil drilling, coal mining, technology equipment, marine surveys, high precise mapping, new energy and so on.

RION is also honored by ISO9001 , 11 software copyright, many products national expertise report, several appearance patent, 2 patent of invention, 7 self-developed core technology.

RION is a Chinese brand with vigor and passion, forging itself to fully self-developed enterprise. Expecting promising future, RION is growing rapidly, providing the best solution in position, attitude and inertial navigation. RION rooted in China, covering the globe, and devote itself to pursuit ever more precise value in position, attitude.
