| Categories | HD LED Display |
|---|---|
| Brand Name: | Conwin LED Display |
| Model Number: | MI-K1.53 |
| Certification: | CE-EMC, CE-LVD, RoHS, ETL, FCC |
| Place of Origin: | China |
| MOQ: | 1sqm |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 1,000sqm/month |
| Delivery Time: | 15days |
| Packaging Details: | Wooden Bo |
| Price: | Negotiable |
| Pixel Pitch: | 1.53mm |
| Refresh: | 3840Hz |
| Contrast: | 5000:1 |
| Dimension: | 640x480mm |
| Thickness: | 48mm |
| Service: | Front |
| Color: | White or Black |
| Weight: | 7.2kg |
| Company Info. |
| Conwin Optoelectronic Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

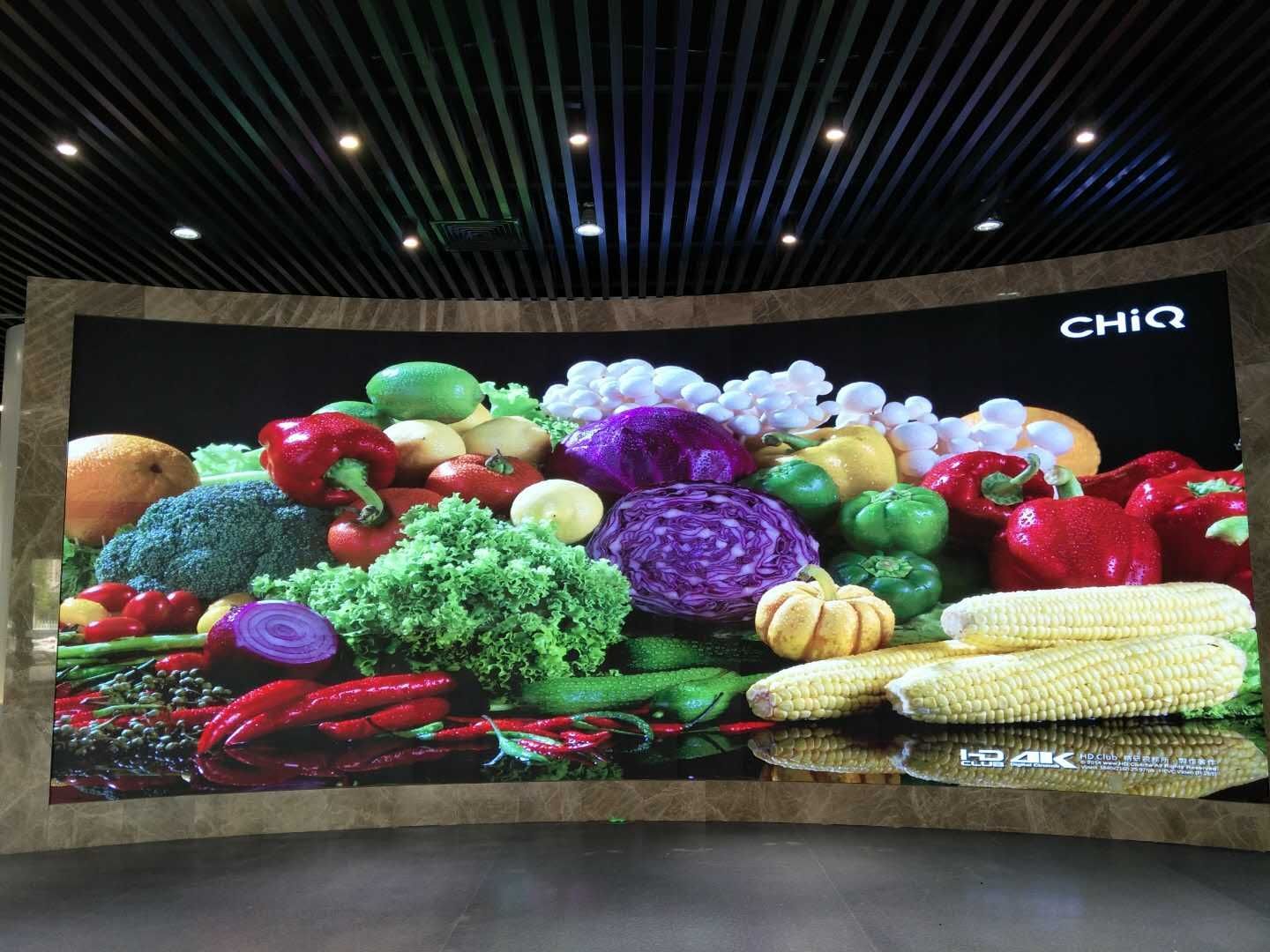

Front Service HD P1.5mm LED Display are ultra thin, light weight, perfect HD 2K 4K image quality,
suitable for for high profile hotels, securities companies,
schools, stage, public security, shopping centers and other fields.
-Ultra high definition video quality with high refresh rate , gray
scale.
High quality display performance even under professional camera, no
water waves or screen flashings, totally meet the live show
requirements.
-Front Maintenance with Magnetic Module
Front maintenance module and magnetic design enables service easy
and convenient
-Light Weight and Ultra Thin Design
LED cabinet thickness 48mm ,weight 7.2kg only . Less than the
traditional led display cabinet, saving your delivery cost and
installation cost
-Support customization different size LED TV
-Seamless design
Molding cabinet, high precision, easy seamless splicing
LED cabinet edge could do 45 degree, support LED display corner splicing seamless
| Brightness | nits | 500 | ||
| Color temperature | deg.k | 2000 ~ 9500 | ||
| Viewing angle - Horizontal | deg. | 160(+80/-80) | ||
| Viewing angle - Vertical | deg. | 160(+80/-80) | ||
| Cabinet weight | kg | 7.5 | ||
| Cabinet width | mm | 640 | ||
| Cabinet height | mm | 480 | ||
| Cabinet depth | mm | 44.5 | ||
| Cabinet material | Die-Aluminum | |||
| Ingress protection (Front/Rear) | IP | IP40/IP20 | ||
| Operating temperature range | deg. C | -10 to 40 | ||
| Operating humidity range | HR | 30％ to 75％ | ||
| Pixel type and configuration | R/G/B | SMD 3in1 | ||
| Pixel pitch | mm | 1.53 | ||
| Pixel matrix per cabinet | 416x312 | |||
| Pixels per cabinet | 129,792 | |||
| Colours | 281trillion | |||
| Gray scale | Levels | 65536 levels per colour | ||
| Brightness control | Levels | 100 | ||
| Digital processing | bit | 16 | ||
| Frame rate | Hertz | 60 | ||
| Display refresh rate | Hertz | 3840 | ||
| Input voltage | VAC | 110/240 | ||
| Input power frequency | Hertz | 50/60 | ||
| Power (max/avg) | Watts per sq.m | 500/200 | ||
| MTBF | Hours | ≥10000 | ||
| Lifetime (50%Brightness) | Hours | ≥100000 | ||
| Blind spot rate | ＜0.0001 | |||
| Red wavelength | nm | 620 | ||
| Green wavelength | nm | 520 | ||
| Blue wavelength | nm | 470 | ||
|
