| Categories | Fluid Level Meter |
|---|---|
| Model Number: | KXPS609 |
| Place of Origin: | Shaanxi, China |
| Brand Name: | GXSENSORS support OEM |
| Usage: | GPS, temperature sensor |
| Theory: | Other |
| Output: | wireless battery |
| Name: | Economical Can bus ZIGBEE Temperature Sensor for Tracking |
| Measure Range: | 0~3m diesel |
| Measure Precision: | 0.5%F.S |
| Power Supply: | 3.6VDC battery or 10VDC~35VDC external power supply |
| Defend Grade: | IP65 |
| Working Temperature: | -25℃~85℃. |
| Storage Temperature: | -25℃~85℃. |
| Interface Type: | NPT1 |
| Timing Work Time: | 5 minute ~ 1000 minute(can set) |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Port: | Shanghai or other |
| Supply Ability: | 1000 Piece/Pieces per Week negotiable |
| Price: | $90.00 - $200.00/pieces |
| Company Info. |
| Xi'an Kacise Optronics Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Economical Can bus ZIGBEE Temperature Sensor for Tracking
1. System Summarize
The “Liquid height measuring system in GPRS communicate mode” include “Liquid height measuring terminal equipment in GPRS communicate mode”, “Server Management Software” and “Configuration Line”. It is used for timing measure liquid height value, temperature value, longitude and latitude data, date and time information and show these value in the “Server Management Software”.
2. “Terminal” Structure Drawing

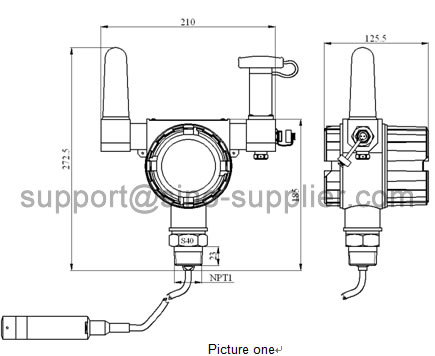

GXPS609(GPRS) terminal structure drawing: as picture one
The back of GXPS609(GPRS) terminal: as picture two
Parameters
| Measure Range | 0~3m diesel |
| Measure Precision | 0.5%F.S |
| Power Supply Way | 3.6VDC battery or 10VDC~35VDC external power supply. |
| Defend Grade | IP65 |
| Work Temperature | -25°C~85°C |
| Storage Temperature | -25°C~85°C |
| Communication Frequency | GSM/GPRS 850/900/1800/1900MHz |
| Interface Type | NPT1 |
| Timing Work Time | 5 minute ~ 1000 minute(can set) |
| Append Function | Append Function |
