| Categories | Lock Stitch Quilting Machine |
|---|---|
| Place of Origin: | Guangdong, China |
| Brand Name: | YuTeng Machinery |
| Certification: | CE Certificate |
| Packaging Details: | Sea worthy packing |
| Supply Ability: | 300 Set/Sets per Year |
| Price: | $10,000.00 - $40,000.00/sets |
| Applicable Industries: | Factory Use |
| Showroom Location: | Viet Nam, South Korea |
| Video outgoing-inspection: | Provided |
| Machinery Test Report: | Not Available |
| Marketing Type: | Hot Product 2019 |
| Warranty of core components: | 1 Year |
| Core Components: | PLC, Motor |
| Condition: | New |
| Max Sewing Speed: | 800r/min |
| Max Sewing Thickness: | 25mm |
| Number of Head: | Single Head |
| Moving Style: | Frame Moved |
| Voltage: | 380V/50HZ,220V/50HZ |
| Power: | 3.5kw |
| Dimension(L*W*H): | 4000mm*1200mm*1800mm |
| Weight: | 3500kg |
| Warranty: | 1 Year, 1 Year |
| After-sales Service Provided: | Engineers available to service machinery overseas, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service |
| shuttle model:: | 7#,10# |
| QUILTING WIDTH: | 2000mm |
| After Warranty Service: | Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Local Service Location: | Viet Nam, South Korea |
| Port: | Shenzhen/Guangzhou |
| Company Info. |
| Dongguan Yuteng Machinery Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
High Speed Computerized Shuttle Muilti Needle Quilting Machine,Jacket Fabric Quilting Machine
♦ Technical parameters :
Model | YGB76-2-3 | YGB76-3-5/6 |
Dimension(L*W*H) | 4300*1200*1800(mm) | 4300*1200*1800(mm) |
Quilting Width | 2000mm | 2000mm |
Needle rows | 2 | 3 |
Space between needle rows | 3" | 3"+2",3"+3" |
Space between needle | 25.4mm | 25.4mm |
X-axis movement displacement | 203.2mm | 304.8mm |
Thickness of quilting | 25mm | 25mm |
Stitch length | 2-6mm | 2-6mm |
Speed of operation(m/hour) | 20-120(m/hour) | 20-120(m/hour) |
Model of needle | 16#,19# | 16#,19# |
Quilting Speed(r/min) | 300-800(r/min) | 300-800(r/min) |
Voltage(AC) | 380V/50HZ,220V/60HZ | 380V/50HZ,220V/60HZ |
Total power | 3.5KW | 3.5KW |
Gross weight | 3800kg | 3800kg |
* Can be customized according to customer requirements
♦ Product main features :
1,Computerized speed governing , max.800r/min.
2, Needle row driven by aluminum alloy needle bar frame structure.
Oil free, sturdy and durable.
3, Saddles and Rollers driven by Servo drive equipment, Spindle
adopts frequency conversion control.
4, Saddles using quilting machine with high rigidity design. The
stand of fabric separate from saddles, effectively reduce the
operating load of motor.
5, Dual clutch device, to solve the synchronization problem of
rollers in front and back.
6, Using high-precision and high rigidity Imported screw mandrel.
7, 360 degree free quilting come with unlimited Multi-span quilting
independent patterns.
8, Automatic thread-break detection unit.
9, Infrared sensor make sure more safety operation.
10,The machine runs smoothly,low noise, high precision, low
thread-break rate and easy to operate.
♦ Purpose :
It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.

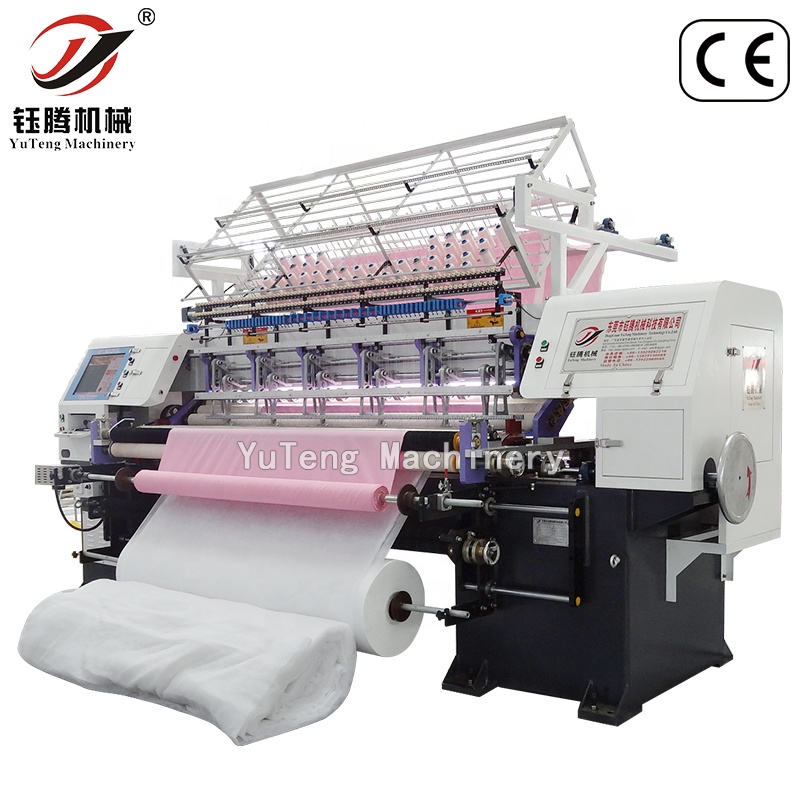

♦ Quilting Machine Pictures :
♦ Company pictures :
♦Our service :
1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you
how to use them.
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and
engineers.
5.Visit our Factory.
|
