Industrial Handheld Welding Head Double Motor For Metal Materials

Categories Fiber Laser Welding Head
Brand Name: HanWei
Model Number: HW-20-50150
Certification: CE, FDA
Place of Origin: China
MOQ: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: 6000 Set per year
Delivery Time: 5 work days
Packaging Details: Welding head: 9Kg. 39*22*29cm. Wire feeding device: 17Kg. 70*40*65cm. Paper Box.
Head Weight: 0.7kg
Size: 216mm*287mm
Laser Shape: Option
Welding width: 0.5~5mm adjustable
Wire Feeding: Support
Wire Feeding Dual Route: Support. Welding bead up to 12mm
Language: Customized
Safety switch: Clip switch
Automatic and Robot: Support
Laser source: All type fiber laser source
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Industrial Handheld Welding Head Double Motor For Metal Materials

Fiber Laser Welding Instrument For Metal Materials Double Motor Handheld Laser

Fiber Laser Welding Head Description:

The Fiber Laser Welding Head Handheld double motor wobble type is exclusively designed and manufactured by HanWei Laser.

The Handheld Laser Welding Head double motor wobble type with laser welding range adjustment, light weight, various laser beam shape , more depth of fusion advantages to adapt to use in different scenes.

The company HanWei Laser Equipment Co.,Ltd is one of the only a few supplier around the world, who can research and develop,manufacturing the whole set of handheld laser welding machine : Handheld welding head → Laser control system → Wobble control system → Wire Feeding device→ Laser Source.
HanWei Laser Independent develop the full set and put on the market. Products with ergonomic concept and design, think through the welding technology applicability and comfort for long-term use (Weight 0.7 kg). The Laser Head and control system adopt the safety lock: Output the laser only when the nozzle touch the workpiece to prevent harming others. Adopt drawer type of protection lens setting for convenience of users themselves for a replacement.

Fiber Laser Welding Head Features and Advantages:
*Extremely Light in weight and small volume,adopt streamline ergonomic design make holding operation is comfortable.
*The control system is very easy and requires little prior knowledge on the part of the operator.
*With safety lock function to ensure safety process.
*Internal structure of welding head with extremely simple design, easy to operate and maintenance.
*Adjustable Laser beam range: 0.5 - 5 mm.
*Support standard single route wire feeding.
*Support Dual route wire same time feeding, welding bead up to 12mm. And also can switch any one route to use as single route wire feeding.
*Laser beam scan mode: Various shape.
*Supply Four welding modes (CW – Continue, Adjust laser out frequency, Argon weld type, QCW mode peak power output).
*Independent Research and Develop all products:Laser head, Control system, Wire Feeding device. Safety lock.
*Digital setting parameters in welding machine interface.
*Support different languages.
*All performance features can be customized to meet individual customer requirements.
Fiber Laser Welding Head Specification:
ModelHW-20-50150
Usable Laser Power1000W-2000W
Focal length150
Collimate focus60
Interface typeQBH
Accessible wave range1064
Net weight0.7 kg
Laser head size216*287 mm
Laser head packing size39*22*29cm.
Laser head packing gross weight9kg
Standard single route wire feeding device packing Info17Kg. 70*40*65cm.
Double route wire feeding device packing Info30Kg. 79*45*70cm.
Usable laser sourceMost of laser source

Fiber Laser Welding Head Product Show:

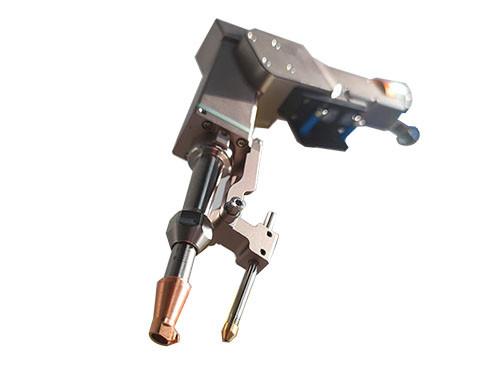

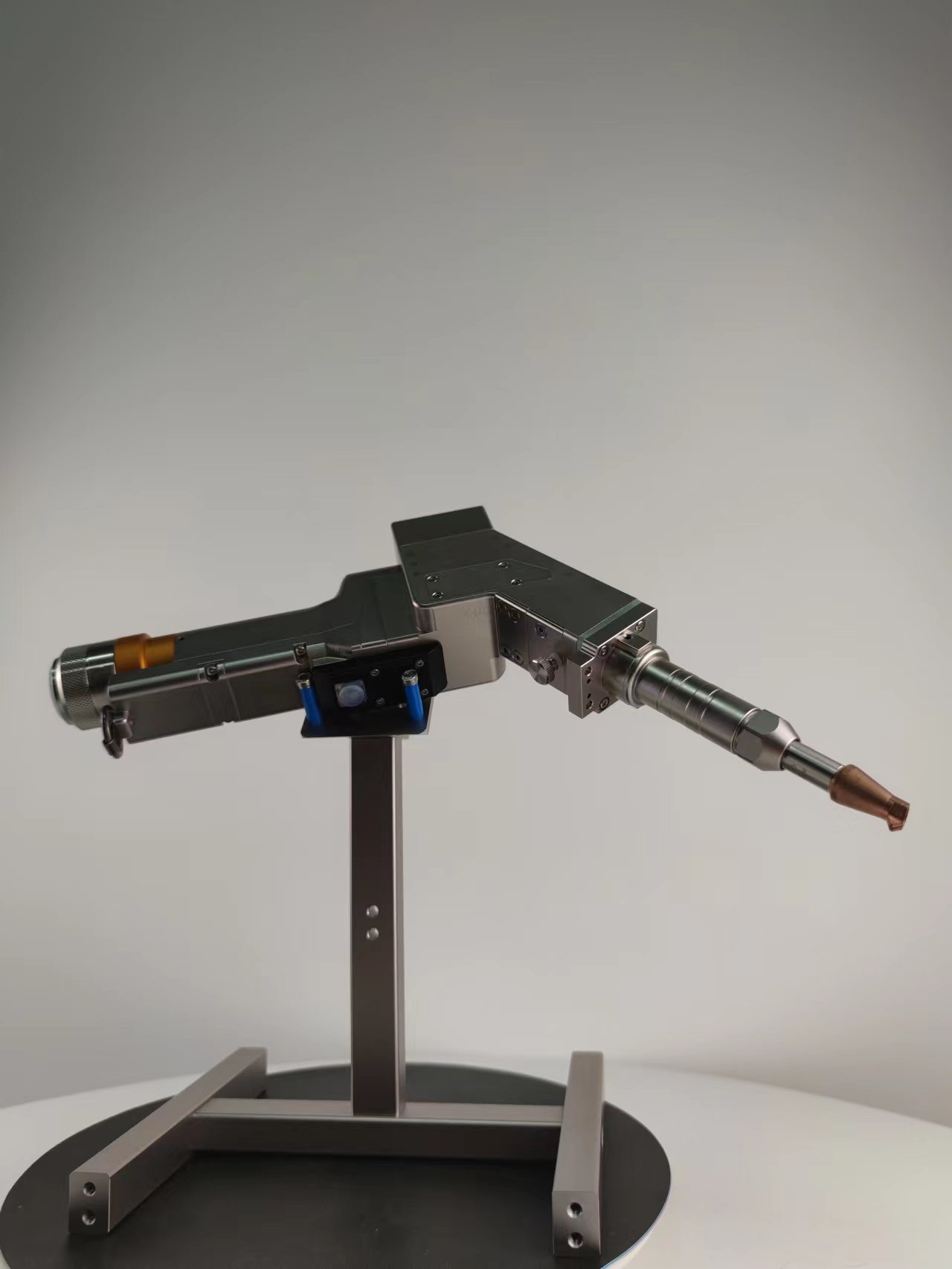

Laser Welding Head. Extremely Light in weight and small volume,adopt streamline ergonomic design make holding operation is comfortable.

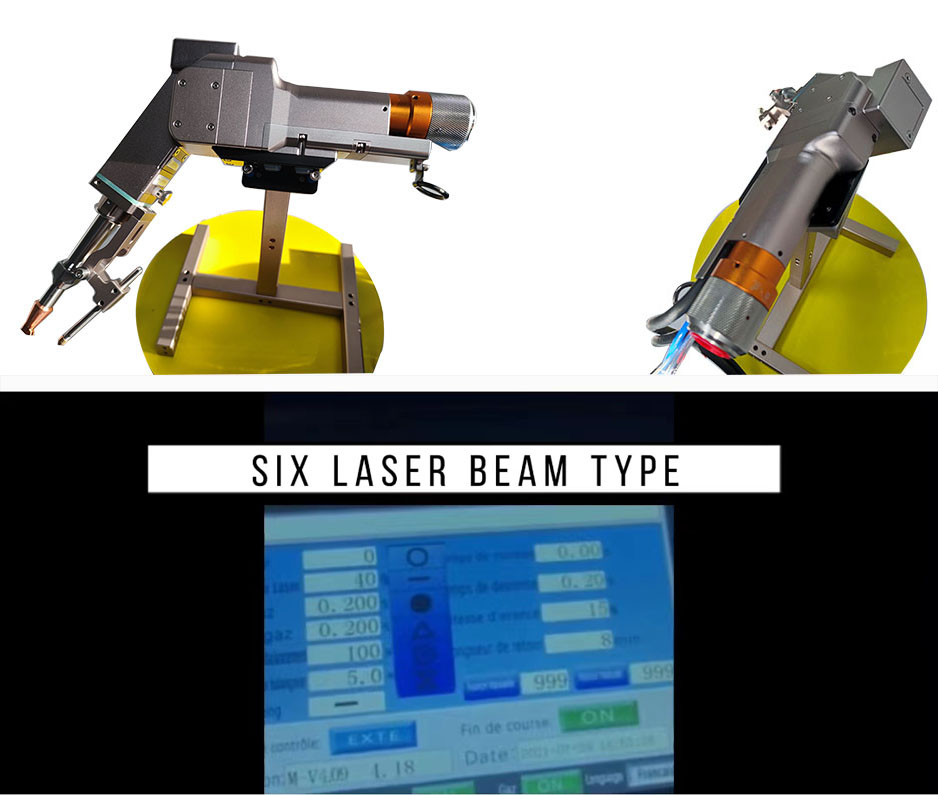

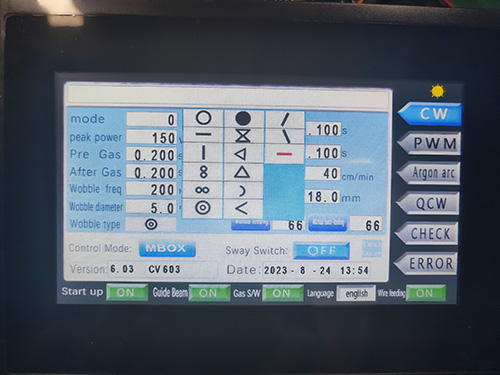

Control System : Torch monitor. The control system is very easy and requires little prior knowledge on the part of the operator.

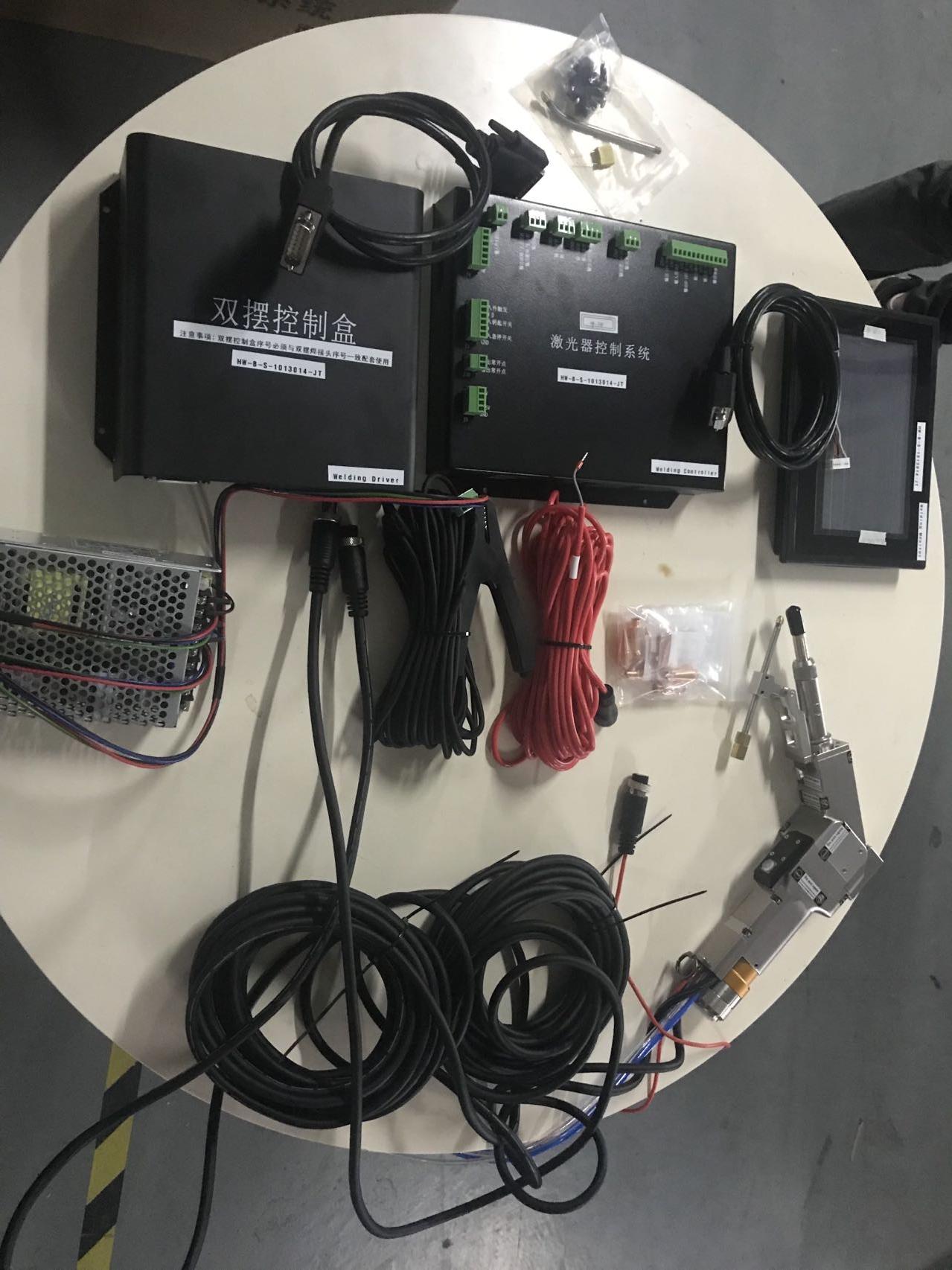

Laser welding head, control system, monitor, power supply and spare parts. With safety lock function to ensure safety process.

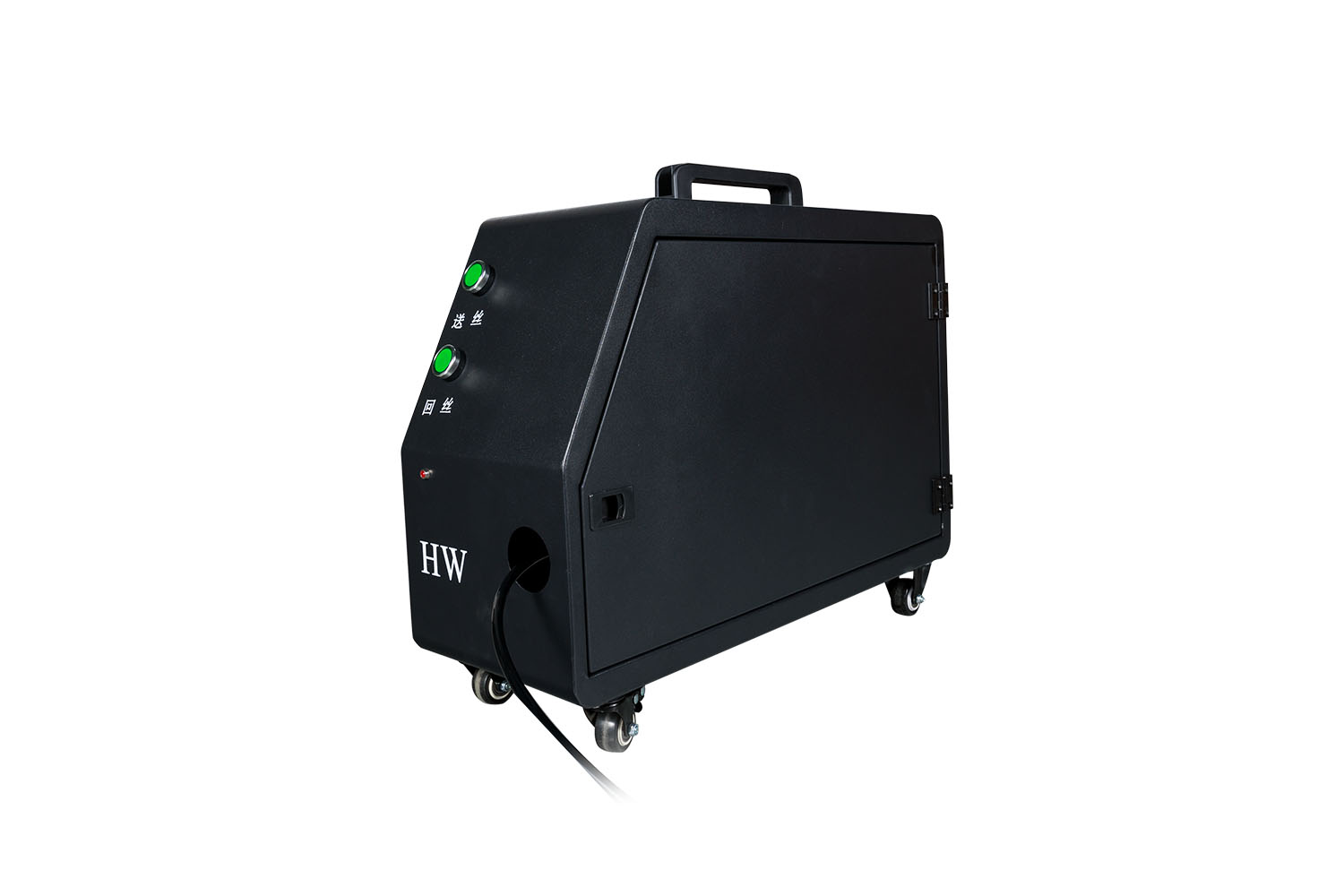

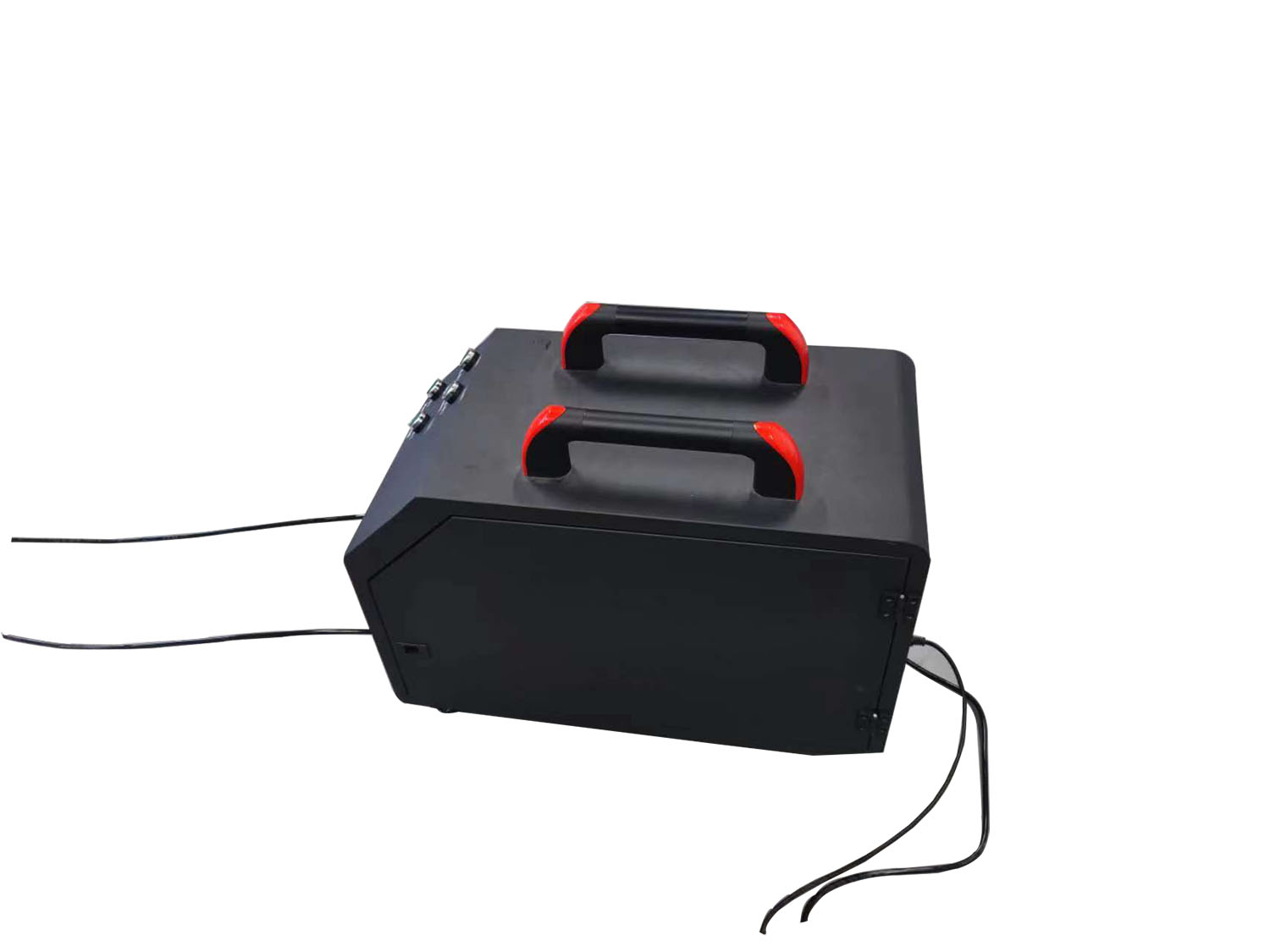

Standard single route wire feeding device


Dual route wire feeding device. Support Dual route wire same time feeding, welding bead up to 12mm. And also can switch any one route to use as single route wire feeding.


Paper Box Packing

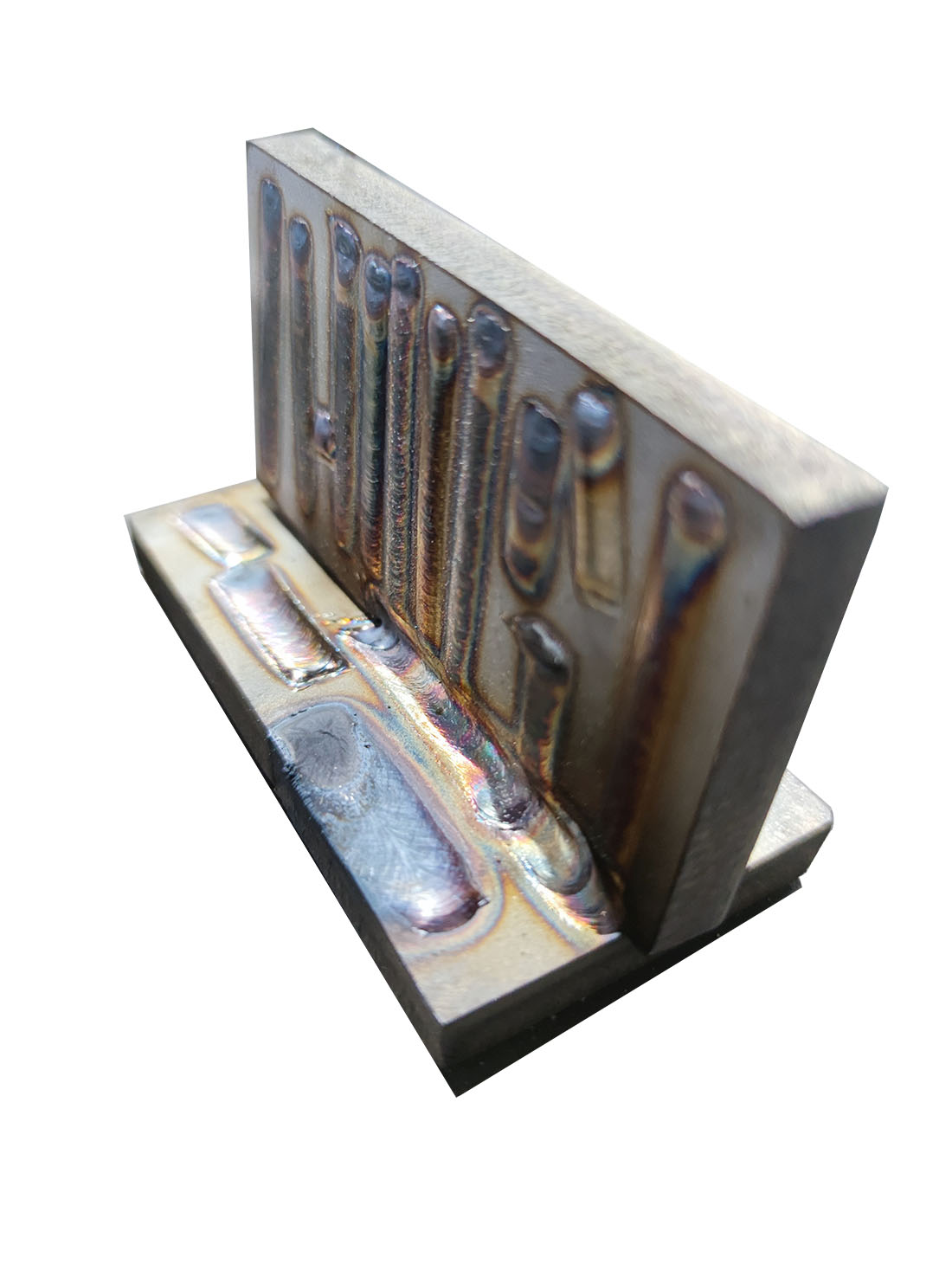

Welding Sample Show

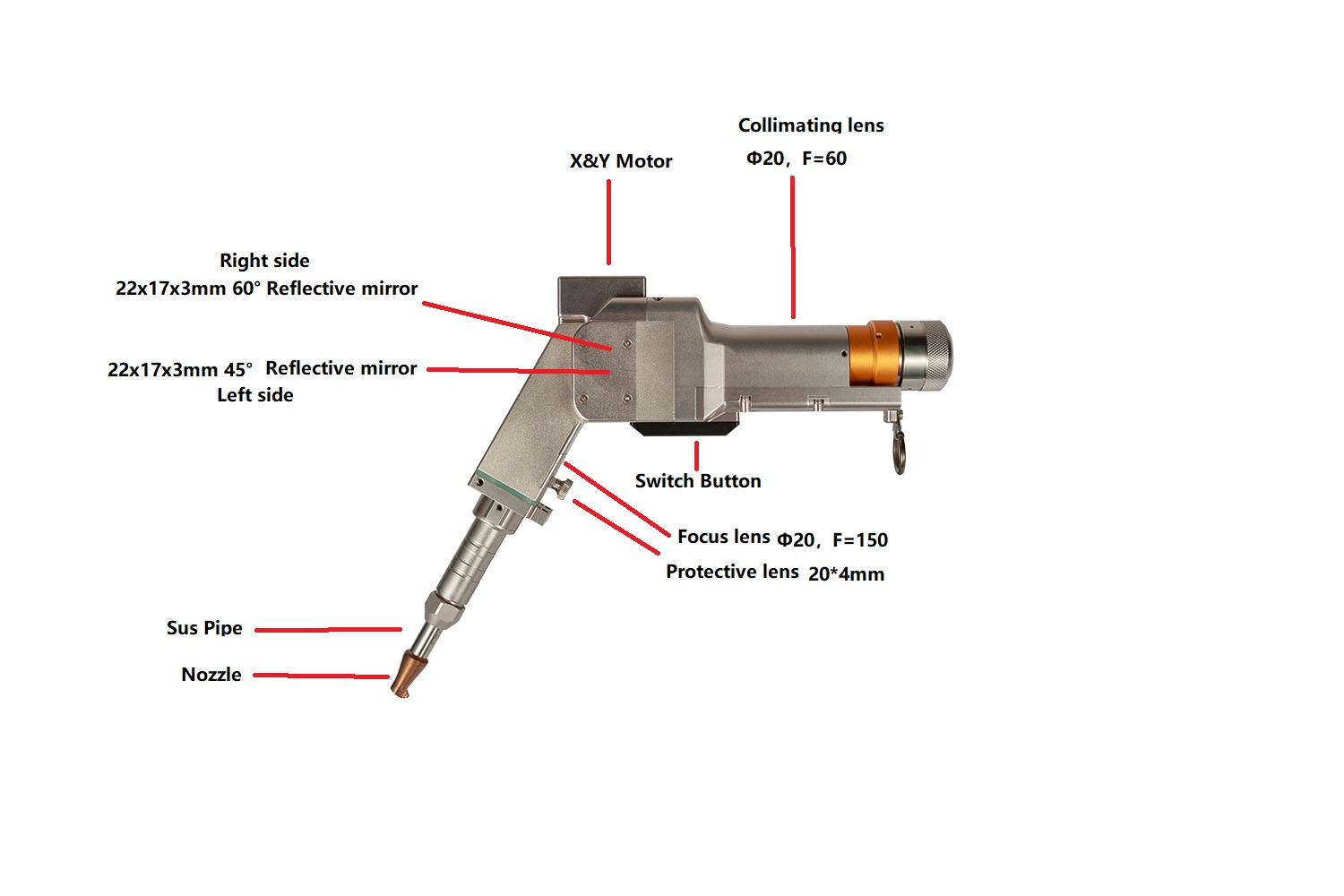

Internal Structure of Welding head. Internal structure of welding head with extremely simple design, easy to operate and maintenance.

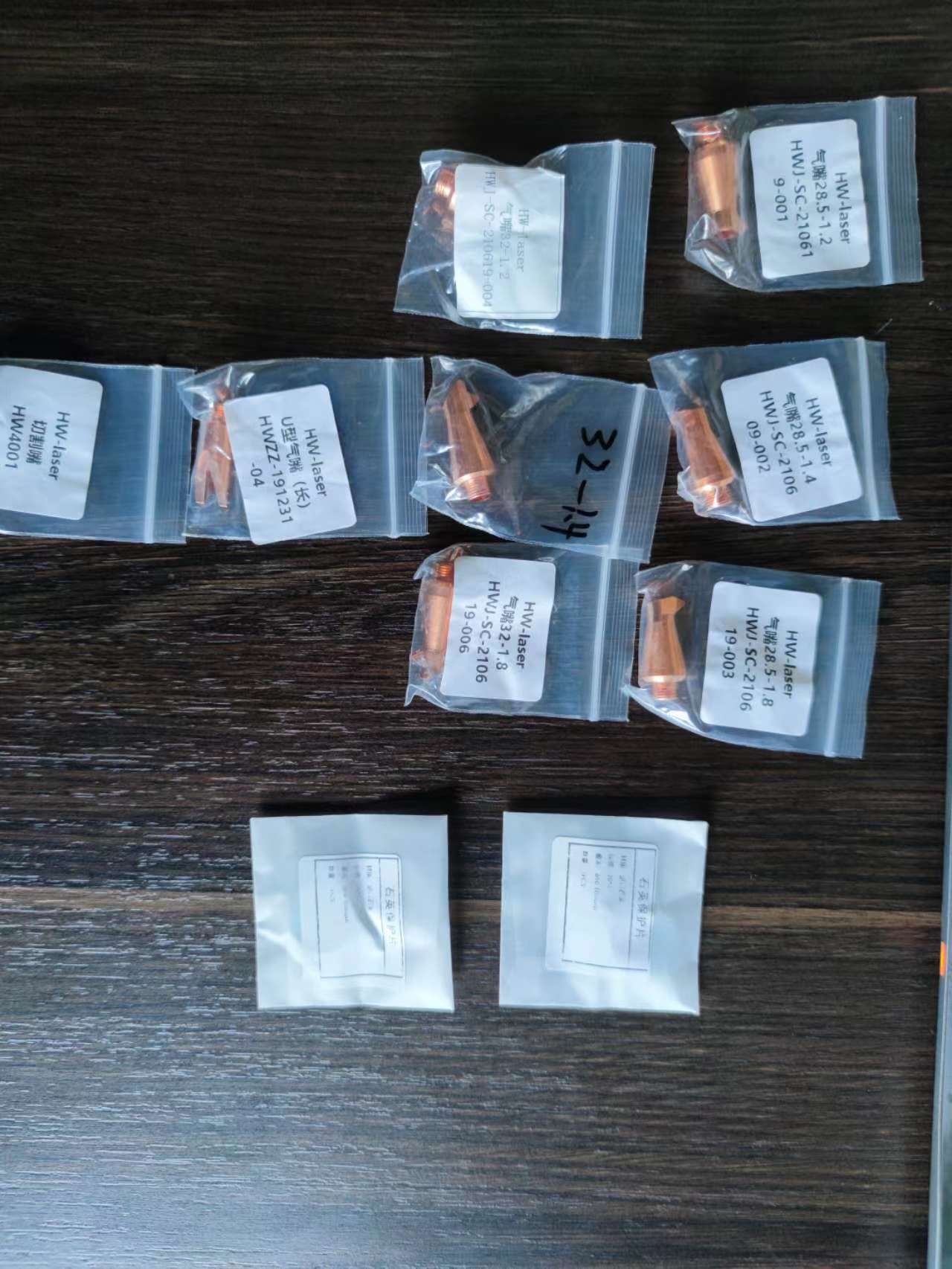

Nozzle

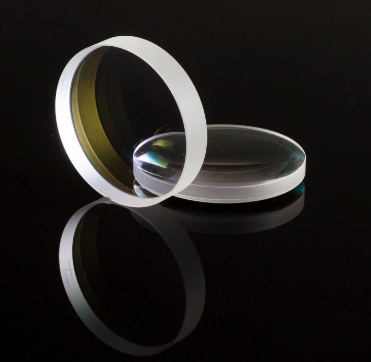

Lens and Mirrors : Protective lens, Focus lens, Motor lens, Collimating lens.
