4.5mm Slim COB Led Strip 528 Chips 4W Dotless Led Rope Light

Categories COB LED Strip
Brand Name: YIZEE LIGHT
Model Number: SF528-12V-4.5m
Certification: CE/RoHs
Place of Origin: China
MOQ: 1000M
Price: Negotiation
Payment Terms: T/T, PayPal , Cash
Supply Ability: 50000m/month
Delivery Time: 3-7days sample,mass order within 20 days
Packaging Details: Standard package
Voltage: DC12V
Power(W): 4W/Meter
LED Chips/m: 528 Led Chips/M
PCB Width: 4.5mm
Cutting Unit: 22.73mm
CRI(Ra): Ra >80(Ra >90/Ra >95 optional)
CCT(K): 2700/3000/4000/6000k
IP Grade: IP20/IP65(nano)
Lumen/Meter: 364-400
Beam Angle: 120°
Product Size(mm): 5000*4.5*2.7mm
Adhesive Tape: 55230H 3M tape
Dimmable: Yes
Certificate: UL,CE
Warranty: 3 Years
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

4.5mm Slim COB Led Strip 528 Chips 4W Dotless Led Rope Light

4.5mm Slim COB Led Strip 528 Chips 4W Dotless Led Rope Light


Q1: How does a COB LED work?
A1: Chip-on-Board or "COB" refers to the mounting of a bare LED chip in direct contact with a substrate (such as silicon carbide or sapphire) to produce LED arrays. COB LEDs have a number of advantages over older LED technologies, such as Surface Mounted Device ("SMD") LEDs or Dual In-line Package ("DIP") LEDs
Q2: Can cob LED strip be cut?
A2: To cut the COB strip, you only need a pair of scissors. Of course, use a ruler to measure the length you need before cutting it. The PCB board of the light strip has clearly marked the places that can be cut, and it can be cut along these lines.

Product Description


1. Super slim with only 4.5mm wide board, better to be in conjunction with profiles
2. SDCMx≤3,1 Bin forever, CRI80/90 optional
3. High quality PFC, high thermal 3M adhesive
4. With life span over 60000H
5. Suitable for various dimming controllers
Product Parameters
Model NoSF528-12V-4.5mm
PCB Width4.5mm
LED Qty/m528Leds/M
PCB materials2Oz Double-sided coated pure copper
Voltage(V)DC12V
Power(W)4W/Meter
Luminous(lm/m)364~400
LED Chip BrandSanan
LED BINs5-Step, one BIN only for each order
CRI(RA>)Ra >80(Ra >90/Ra >95 optional)
Color Tempertature2700/3000/3500/4000/6000k
IP RateIP20/IP55/IP65/IP67
View Angle180
Product Size(mm)5000*4.5*2.7mm
Package(m/roll)5M/roll ( Customized length available)

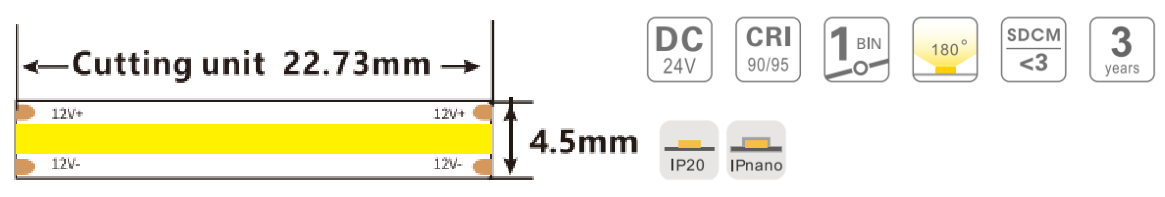

Cutting Unit22.73mm
Adhesive Tape55230H 3M tape
DimmableYES
CertificateUL,CE
Warranty3 Years
CRICCTLM/MLM/W
902700K36491
3000K38295
3500K400100
4000K400100
6000K38295
Product Images
Applications

Our Services


1. We can help all our customers in installing, design, and OEM/OED service.
2. Our all customer know: our connector, install clips, wires, is free with orders.
3. Any questions when using , we always fast reply with the professional methods.

4. We have rich experiences in different projects, we can provide professional customize service for customers who focus on project.
5. The shipping from us, very fast, because when we know the normal products you often ordered. We will do stock produce.
6. We are very honest and careful factory direct sell the products. So all products is tested very good and packing very strong.


FAQ


Q1: Do you have free sample?
A1: Yes, we can offer you free samples, excluding shipping cost.

Q2: What is your minimum order quantity?
A2: Usually MOQ is 100m, but we also accept small order for trail.

Q3: What's your delivery time?
A3: Samples can be finished within 3-5 days, bulk order is about 7-10 working days according to quantity.

Q4: What's your delivery ways as usual?
A4: Normally, we help you send the products by Express, Air or Sea transportation.

Q5: What's the payment term?
A5: We accept T/T, PayPal , Cash.

Q6: Do you offer OEM customized services?
A6: Yes, we offer OEM services. We can print your logo on products, and customize the products and packaging and the other things for you.
