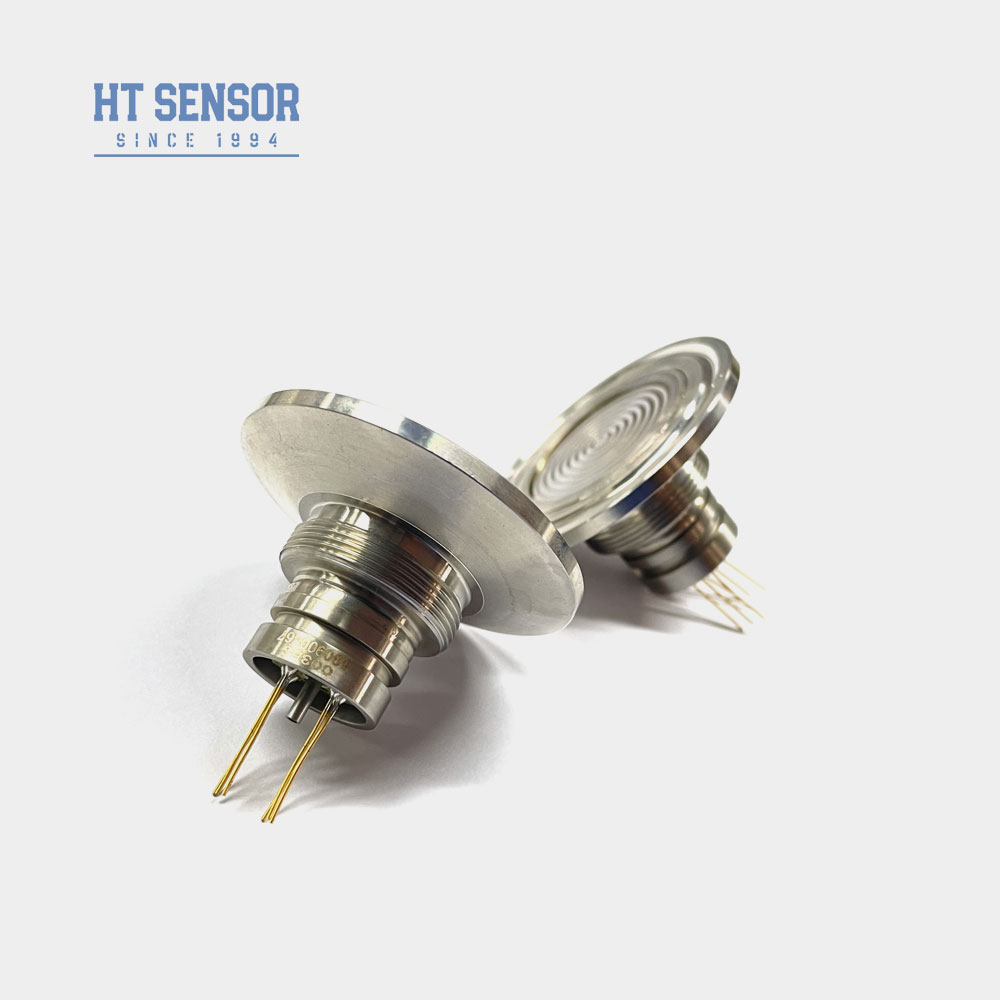

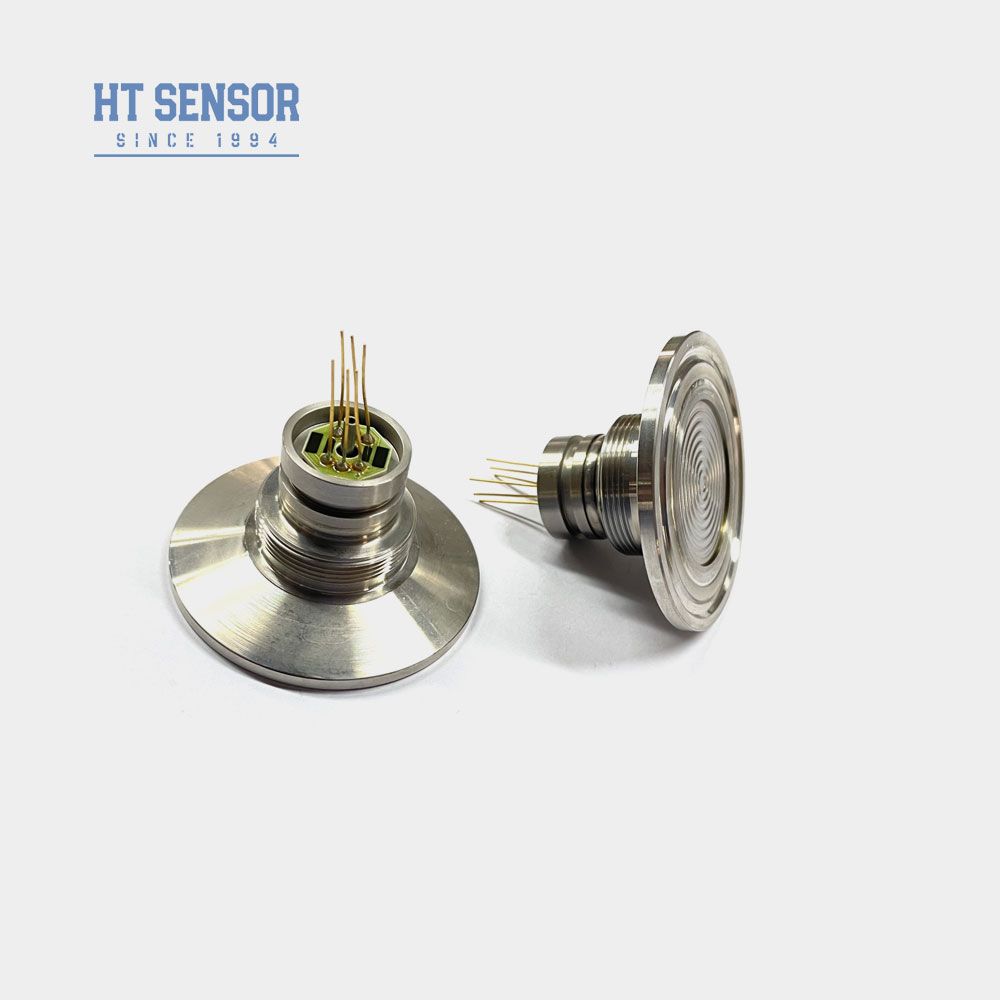

HT-IQ Piezoresistive Silicon Pressure Sensor
Introduction of flush silicon pressure sensor:
HT - IQ pressure sensor is a kind of flushing diffusion silicon
diaphragm pressure sensor.The clamp pressure sensor uses disposable
silicone oil filling technology.Diaphragm feel pressure by silicone
oil is passed to the chip, the compensation circuit will be
corrected for pressure signal linear electrical signals. The card
is tightly sealed to prevent scaling, unsanitary and adhesion.
Widely used in food, medicine, wine and other health industries,
generally suitable for measuring media may be contaminated
occasions.Flat diaphragm clamping structure, easy installation and
disassembly, easy cleaning.
Product Features of flush silicon pressure sensor:- Advanced technology and 316L stainless steel case packaging.
- Temperature compensation and zero correction by thick film circuit.
- Excellent reliability, repeatability and stability.
- Rinse diaphragm structure for easy cleaning.
Electrical performance of flush silicon pressure sensor:- Power Supply: ≤2mA DC (Typical 1.5mA DC)
- Input Impedance : 2.5KΩ~6KΩ
- Output Impedance: 2.5KΩ~6KΩ
- Electrical Connection: Gold-plated Kovar pins or 100mm
high-temperature wires.

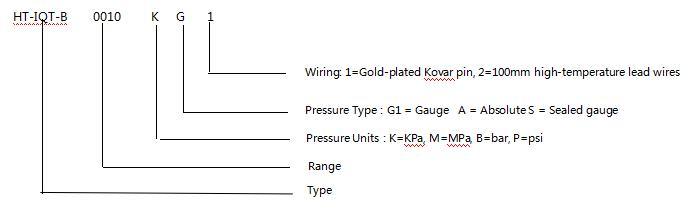

| Performance Parameters of flush diffused silicon pressure sensor: |
| Measurement Range | Gauge(G) | 35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa |
| Absolute(A) | 100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA |
| Sealed(S) | 3500KPaS |
| Typ | Max | Unit |
| NonLinearity | ±0.15 | ±0.3 | %F.S |
| Repeatability | 0.05 | 0.1 | %F.S |
| Hysteresis | 0.05 | 0.1 | %F.S |
| Zero Offset Output | 0±1 | 0±2 | mV |
| Full Scale Output | ≤20KPa | 50±10 | 50±30 | mV |
| ≥35kPa | 100±10 | 100±30 | mV |
| Zero Offset Temp. Drift | ≤20KPa | ±1 | ±2 | %F.S |
| ≥35kPa | ±0.5 | ±1 | %F.S |
| Full Scale Temp. Drift | ≤20KPa | ±1 | ±2 | %F.S |
| ≥35kPa | ±0.5 | ±1 | %F.S |
| Compensated Temp. | ≤20KPa | 0~50 | ºC |
| ≥35kPa | 0~70 | ºC |
| Operating Temperature | -20~80 | ºC |
| Storage Temperature | -40~125 | ºC |
| Allowable Overload | Take the smaller value between 3 times the full scale or 120MPa | |
| Burst Pressure | 5X the full scale | |
| Long-term Stability | 0.2 % | F.S/Year |
| Diaphragm Material | 316L | |
| Insulation Resistance | ≥200MΩ 100VDC | |
| Vibration | No change under conditions of 10gRMS, 20Hz to 2000Hz | |
| Shock | 100g,11ms | |
| Response Time | ≤1ms | |
| O-ring Seal | Nitrile rubber or Fluoro rubber | |
| Filling Medium | Silicon Oil | |
| Weight | ~200g | |
| The parameters are tested under the following conditions: 1.5mA
@25°C |
| Outline Construction |

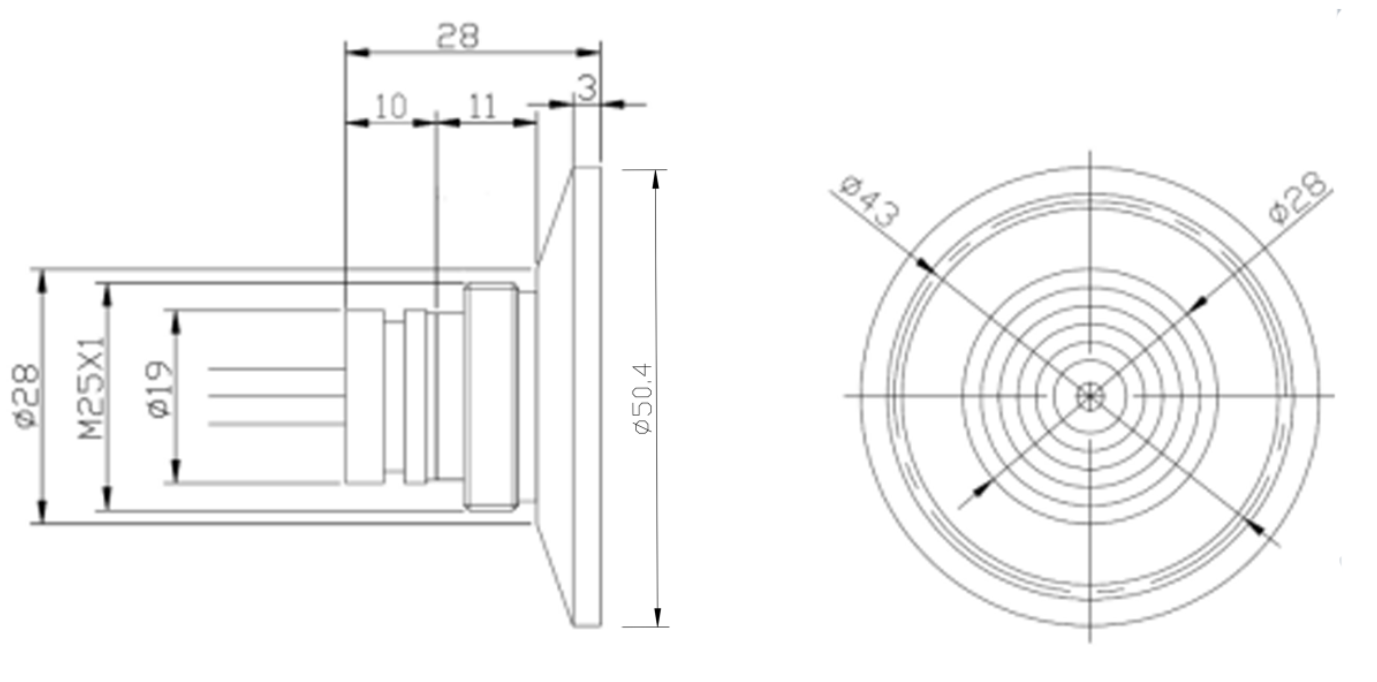

| Dimension |  |

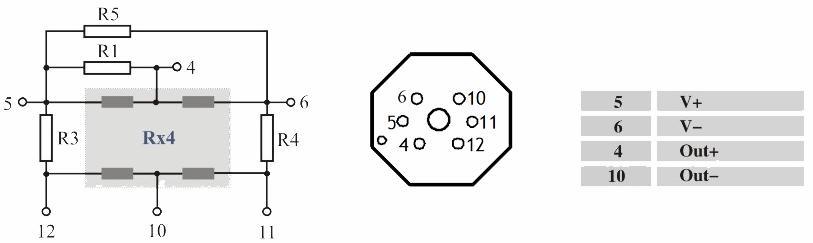

| Electrical connection and compensation |
|
1. When assembling, pay attention to the coordination of the core
size and the transmitter housing to achieve the necessary sealing.
2. During the housing assembly process, ensure that it is
vertically aligned and apply even pressure to avoid jamming or
damaging the compensation plate.
3. If the medium under test is incompatible with the core diaphragm
and housing material (316L), special instructions should be
provided when placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects
to avoid deformation or puncture of the diaphragm and damage to the
core.
5. Keep the pressure port of the gauge core open to the atmosphere
to prevent water, water vapor or corrosive media from entering the
negative pressure chamber of the gauge core.
6. If there is any change in the pin, please refer to the label on
the actual product.
1.Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance.
Customization available.2.Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service3.Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure
sensor transmitters per month, so we are fully capable of meeting
the needs of large-scale orders. However, it is advisable to
contact our sales team in advance to ensure smooth production and
delivery scheduling
.4.Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may
vary.5.Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term
partners
.6.Q: What is the warranty of your products? And after-sales
service?
A: Our warranty time is 24 months after shipment, and our
after-sales will respond with your questions in 24hrs, remote
instruction by PC network is always available.
