AKG392 MEMS Digital Accelerometer Three Axis Vibration Sensor For Bridge Monitoring

RION AKG392 MEMS Digital Accelerometer Three axis Vibration Sensor for Bridge Monitoring

▶ MAIN FEATURE

★ Three axes (X, Y, Z)

★ Output signal: RS232; RS485; TTL

★ Power supply voltage: 9~36V

★ Size: L34.3×W34.3×H38.5mm

★ Working temperature: -40°C ~ +85°C

★ Storage temperature: -40°C ~ +85°C

★Excellent deviation stability, good environmental performance (shock, vibration and temperature)

▶ APPLICATION

★ Medical equipment

★ Bridge

★ Large machinery, engines

★ Automobile

★ Road roller

★ Crash records, fatigue monitoring and prediction

★ Wind power generation

★ Low-frequency vibration and automatic monitoring

★ Traffic system monitoring, roadbed analysis and high-speed railway

fault detection

Specifications

▶ COMMUNICATION PROTOCOL

The product includes 68 protocol and MODBUS RTU two protocols. The default configuration parameters of the protocol are as follows:

RION 68 protocol and MODBUS protocol mutual switching method:

Open the serial port debugging assistant, select the baud rate 115200, no parity, stop bit 1, the connection port number, make the host computer send hexadecimal 0xAA regularly for every 10ms. Power on the product and reply "RION" or "MRTU" to indicate that the change to the corresponding protocol is successful. After the switch is successful, the parameters are all the above default parameters.

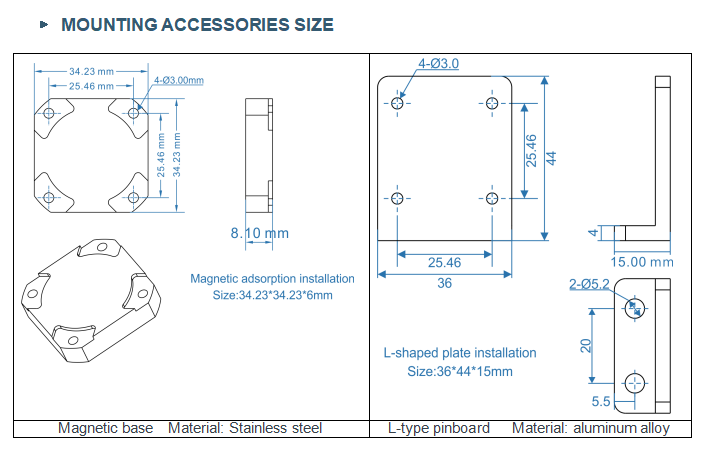

Size
