3.7 Inch TFT LCD Display 480x800 Pixels Mipi/RGB Interface Optional

3.7 Inch TFT LCD Display, 3.7" LCD Screen 480x800 Pixels Product Introduction

Features

• This 3.7 inch TFT LCD display SF-TC370S-9793B-N is a diagonal size of 3.7 inches and a resolution of 480x800 pixels(480 horizontal by 800 vertical pixels array).
• This 3.7 LCD display module is equipped with an HX8369-A01 driver IC functions and supports RGB interface.
• This 3.7 inch TFT display has the power supply voltage (Vdd) ranges from 2.6V to 3.3V (typical value of 2.8V).
• This 3.7 inch LCD screen is IPS type display with a full view angle 85/85/85/85 max.
• this 3.7 inch portrait TFT SF-TC370S-9793B-N is displayed in vertical mode with a brightness of 300 nits, and can be customized to 1000 nits according to customer requirements.
• This 3.7-inch LCD screen can operate at temperatures ranging from -20 ℃ to+70 ℃; Its storage temperature is between -30 ℃ and+80 ℃.
• Whether used indoors or outdoors, this 3.7-inch TFT LCD display can meet various display requirements. It is a multifunctional and high-performance solution suitable for industrial equipment, scanners, home automation, access control systems, monitoring equipment, analyzers, security systems, garden irrigation systems, and a wide range of applications.

Product Information

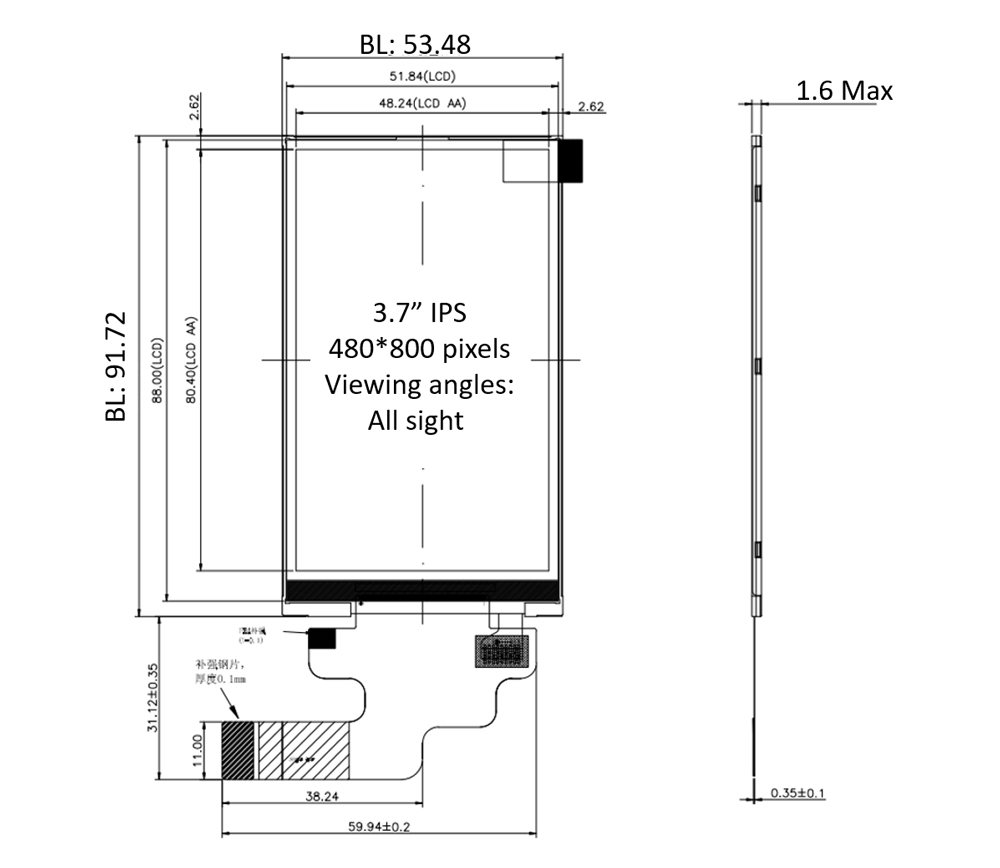

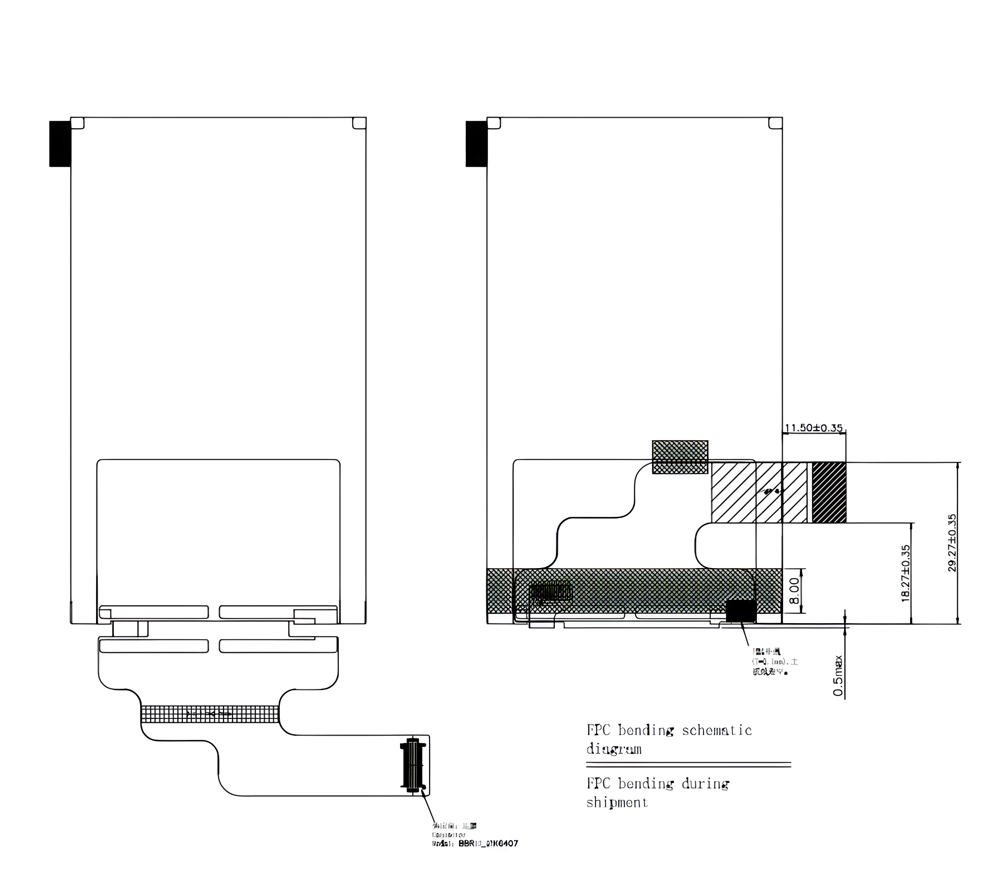

3.7 Inch TFT LCD Display, 3.7" LCD Screen 480x800 Pixels Product Drawing

Pin Definition

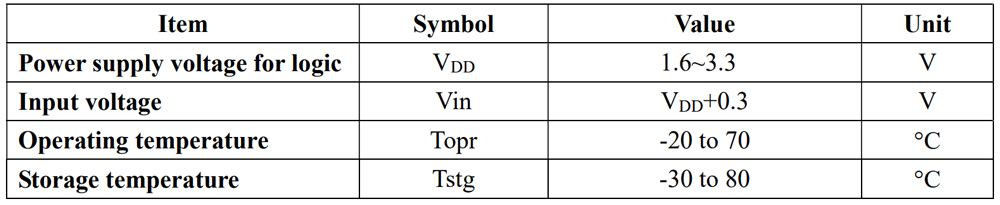

Maximum Absolute Limit

DC Characteristics

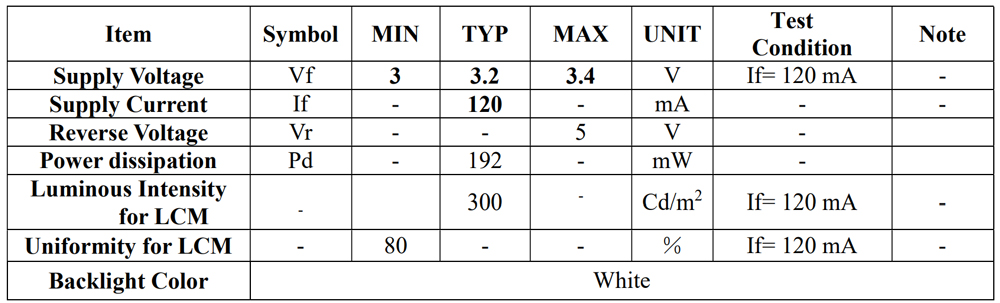

Backlight Electrical-optical Characteristics

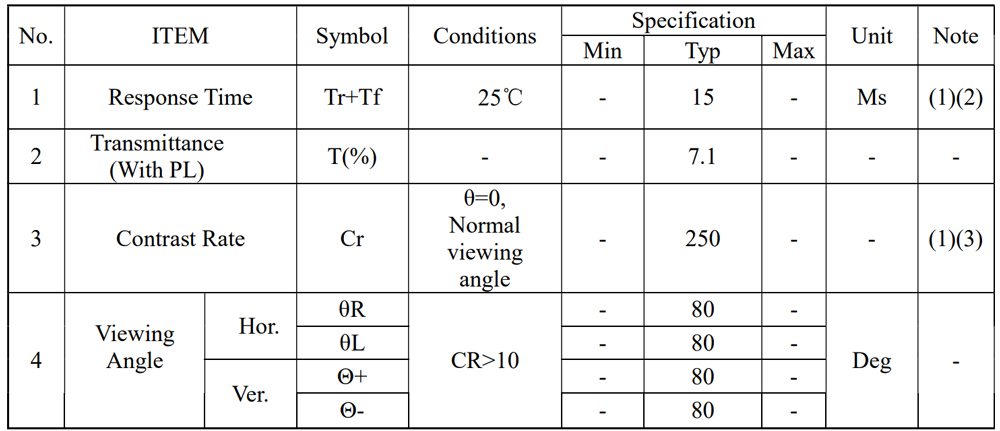

Optical Characteristics

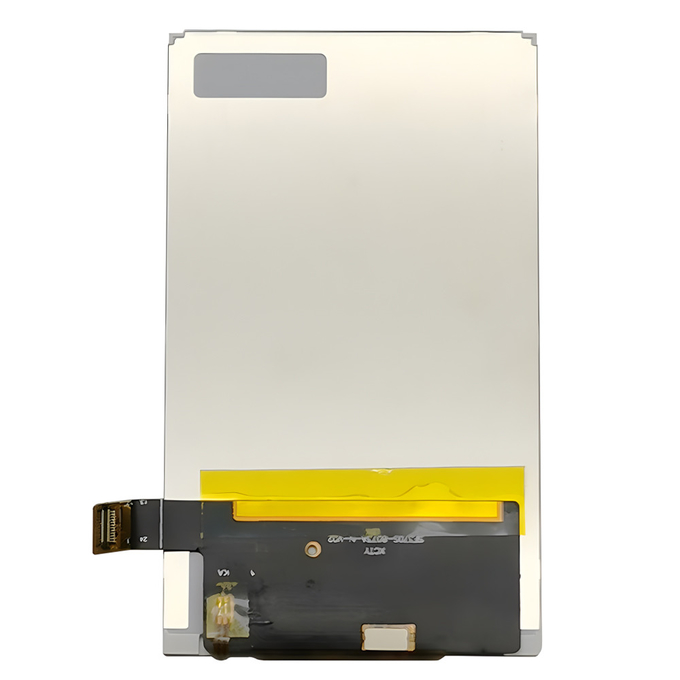

3.7 Inch TFT LCD Display, 3.7" LCD Screen 480x800 Pixels Product Image

Factory Facilities and Certificates

Search keyword: tft 3.7", 3.7 tft lcd, 3.7" tft lcd, 3.7 inch tft lcd, tft lcd 3.7, 3.7 tft display, 3.7" tft display, 3.7 inch tft display, tft display 3.7 inch, tft display 3.7", 3.7 inch tft lcd display, 3.7" tft screen, 3.7 inch tft screen, tft screen 3.7 inch, tft screen 3.7", 3.7 inch tft lcd screen, WVGA TFT, 3.7 inch WVGA, 3.7 inch 480x800, hx8369 TFT
