| Categories | IFM Pressure Sensor |
|---|---|
| Brand Name: | IFM |
| Model Number: | TK6110 |
| Place of Origin: | Germany |
| MOQ: | 1pc |
| Price: | $200-$300 |
| Payment Terms: | T/T |
| Supply Ability: | 50pcs |
| Delivery Time: | 3_5weeks |
| Packaging Details: | new box |

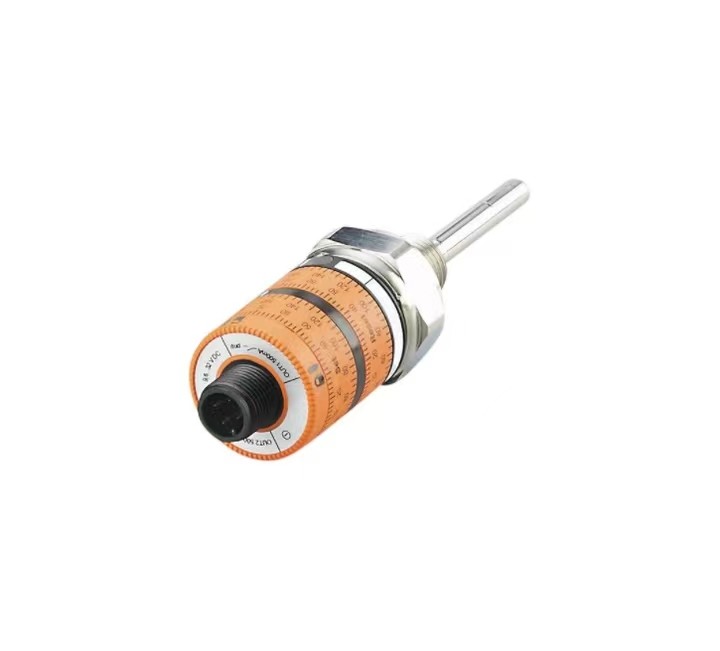

| Description: | OEM Temperature Sensor Switch With Adjustment Dials Tk6110 |
| warranty: | 1year |
| Measuring range: | -20...140 °C |
| Installation length EL [mm: | 9 |
| Media: | liquids and gases |
| Pressure rating [bar: | 9 |
| Output signal: | switching signal |
| Company Info. |
| Xiamen ZhiCheng Automation Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
| Number of inputs and outputs | Number of digital outputs: 2 | ||
|---|---|---|---|
| Measuring range |
| ||
| Process connection | threaded connection G 1/4 | ||
| Installation length EL [mm] | 50 |
| System | gold-plated contacts |
|---|---|
| Measuring element | 1 x Pt 1000; (to DIN EN 60751, class A) |
| Media | liquids and gases |
| Medium temperature [°C] | -40...145 |
| Pressure rating [bar] | 400 |
| Operating voltage [V] | 9.6...32 DC; (cULus - Class 2 source required) |
|---|---|
| Current consumption [mA] | < 30 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 0.5 |
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal |
| Electrical design | PNP |
| Number of digital outputs | 2 |
| Output function | complementary |
| Max. voltage drop switching output DC [V] | 2 |
| Permanent current rating of switching output DC [mA] | 500 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
| Measuring range |
| ||
|---|---|---|---|
| Set point SP |
| ||
| Reset point rP |
|
| Temperature drift per 10 K [K] | 0.1 **) |
|---|---|
| Repeatability [K] | ± 0,1 |
| Setting accuracy [K] | ± 3 |
| Dynamic response T05 / T09 [s] | 1 / 3; (according to DIN EN 60751) |
|---|
| Adjustment of the switch point | setting rings |
|---|
| Ambient temperature [°C] | -40...80 | |||
|---|---|---|---|---|
| Note on ambient temperature |
| |||
| Storage temperature [°C] | -40...100 | |||
| Protection | IP 67 |
| EMC |
| ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Shock resistance |
| ||||||||
| Vibration resistance |
| ||||||||
| MTTF [years] | 643.1 | ||||||||
| UL approval |
|
| Weight [g] | 104.5 |
|---|---|
| Material | stainless steel (1.4404 / 316L); PC; PBT; FKM |
| Materials (wetted parts) | stainless steel (1.4404 / 316L); FKM |
| Tightening torque [Nm] | 35 |
| Process connection | threaded connection G 1/4 |
| Probe diameter [mm] | 6 |
| Installation length EL [mm] | 50 |
| Display |
|
|---|
| Remarks |
| ||
|---|---|---|---|
| Pack quantity | 1 pcs. |
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
|
