| Categories | Beckhoff PLC Modules |
|---|---|
| Brand Name: | BECKHOFF |
| Model Number: | EL2008 |
| Place of Origin: | GERMANY |
| MOQ: | 1 |
| Price: | $200-$300 |
| Payment Terms: | T/T |
| Supply Ability: | 50PCS |
| Delivery Time: | 3-5DAYS |
| Packaging Details: | NEW BOX 20*30*50 |
| Description: | Beckhoff El2008 Ethercat Terminal, 8-Channel Digital Output, 24 V Dc, 0.5 A |
| Connection technology: | 1-wire |
| Number of outputs: | 8 |
| Nominal voltage: | 24 V DC (-15 %/+20 %) |
| Load type: | ohmic, inductive, lamp load |
| Breaking energy: | < 150 mJ/channel |
| Current consumption E-bus: | typ. 110 mA |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Relative humidity: | 95%, no condensation |
| Company Info. |
| Xiamen ZhiCheng Automation Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Description
The EL2008 digital output terminal connects the binary 24 V DC control signals from the automation device on to the actuators at the process level with electrical isolation. Each EtherCAT Terminal has eight channels that indicate their signal state via light emitting diodes.
Product Information
Special features:
| Technical data | EL2008 |
|---|---|
| Connection technology | 1-wire |
| Number of outputs | 8 |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Load type | ohmic, inductive, lamp load |
| Distributed clocks | – |
| Max. output current | 0.5 A (short-circuit proof) per channel |
| Short-circuit current | typ. < 2 A |
| Reverse voltage protection | yes |
| Breaking energy | < 150 mJ/channel |
| Switching times | typ. TON: 60 µs, typ. TOFF: 300 µs |
| Current consumption E-bus | typ. 110 mA |
| Electrical isolation | 500 V (E-bus/field potential) |
| Current consumption power contacts | typ. 15 mA + load |
| Bit width in the process image | 8 outputs |
| Configuration | no address or configuration setting |
| Weight | approx. 55 g |
| Operating/storage temperature | -25…+60°C/-40…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/see documentation |
| Pluggable wiring | for all ESxxxx terminals |
| Approvals/markings | CE, UL, ATEX, IECEx, DNV GL, cFMus |
| Ex marking | ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc |
Housing data | EL-12-8pin | ES-12-8pin |
|---|---|---|
| Design form | compact terminal housing with signal LEDs | terminal housing with pluggable wiring level |
| Material | polycarbonate | |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm | |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock | |
| Side by side mounting by means of | double slot and key connection | |
| Marking | labeling of the BZxxx series | |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver | |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² | s*: 0.08…1.5 mm², st*: 0.08…1.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG28…14, st*: AWG28…14, f*: AWG26…16 | s*: AWG28…16, st*: AWG28…16, f*: AWG26…16 |
| Stripping length | 8…9 mm | 9…10 mm |
| Current load power contacts | Imax: 10 A | |

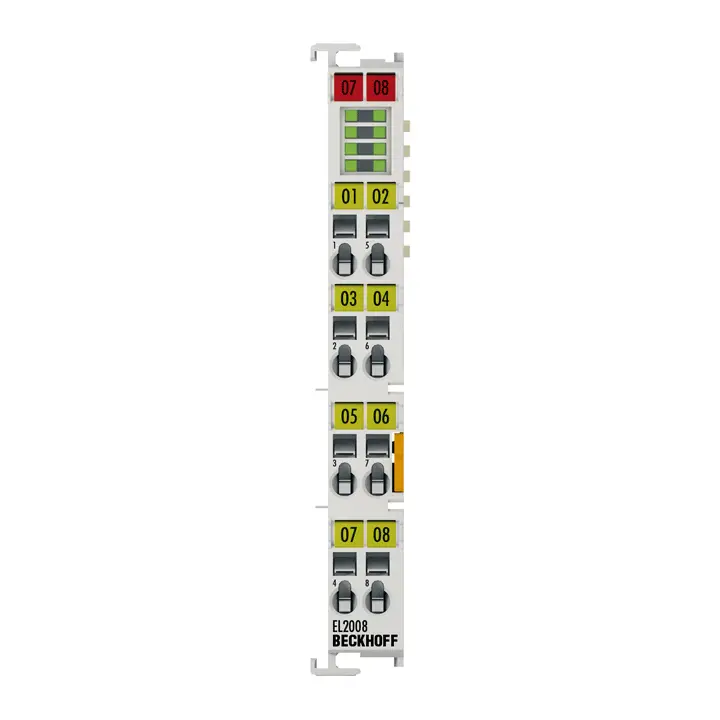

Product Photo
