Dual Working Stations BLDC Fan Winding Machine 380v With Needle Winding Method

automatic Dual Working Stations BLDC Motor Winding Machine With Needle Winding method

Product overview:

This Dual Working Stations Motor Winding Machine adopts needle winding technology,is suitable for winding BLDC stators. It is equipped with servo system. It can automatically insert wire end, winding, arraying, indexing, cutting, and demolding. This needle winder is designed with two working stations. Machine movement is pre-set in the touch screen. All the winding data can be shown on the touch screen during the machine running. During running, the machine will alarm if something goes wrong.

XINGTE Competitive advantages

Variety of application, easy operation.

We have Overseas Service Center.

It is suitable for rotors or stators with different model numbers and dimensions.

The operation and tooling change process is easy.

We could customize the machine for our customer as per their requirement.

We directly supply our machines to many countries, like the USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
This machine is controlled by PLC. All the parameters could be set on the touch screen,

Operation step

1. Power on the machine
2. Thread the wire
3. Put stator to the working station table
4. Adjust the tooling according to different model stator
5. Set the stator diameter in the touch screen then select the pre-set data.
6. Press the "start" button.
7. The machine will automatically do winding.
8. Take out the stator

Application

The BLDC needle winding machine is especially suitable for range hood motor, hair curler motor, servo motor, brushless household motor, stepper motor, fan motor, Ceiling fan motor,bladeless fan motor, brushless power tools, brushless medical equipment and other types of DC brushless motor.

Information needed for BLDC Stator Coil Winder inquiry
It will be better if customer could send us detailed drawing including below information.
1. Stator drawing
2. Stator winding drawing
3. Winding distribution drawing
4. Other technical requirement
If possible, it will be better if customer can send us samples.

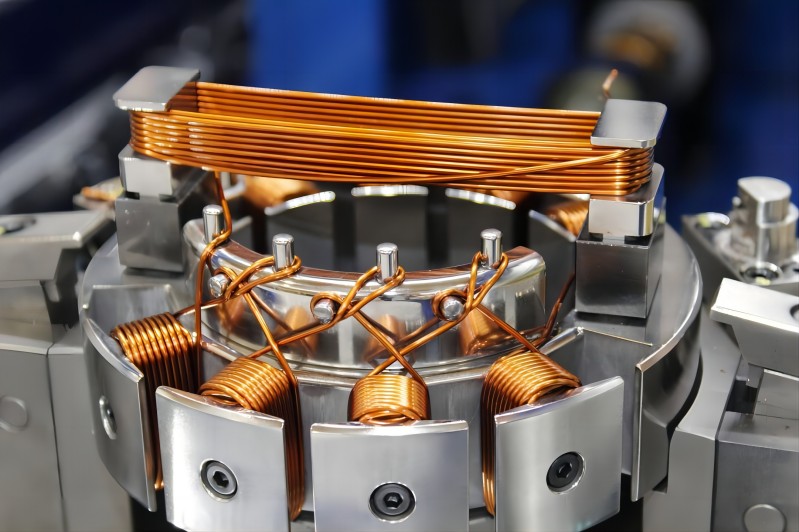

The stator is stationary during winding. All needle movements are motorized and programmable and managed in direct drive mode (no cam system, no belts, no lead screw).

It is possible to wind:

• Inner straight slot stators
• Inner skewed slot stators
• Outer stators straight and skewed slot

Product parameters

Our factory

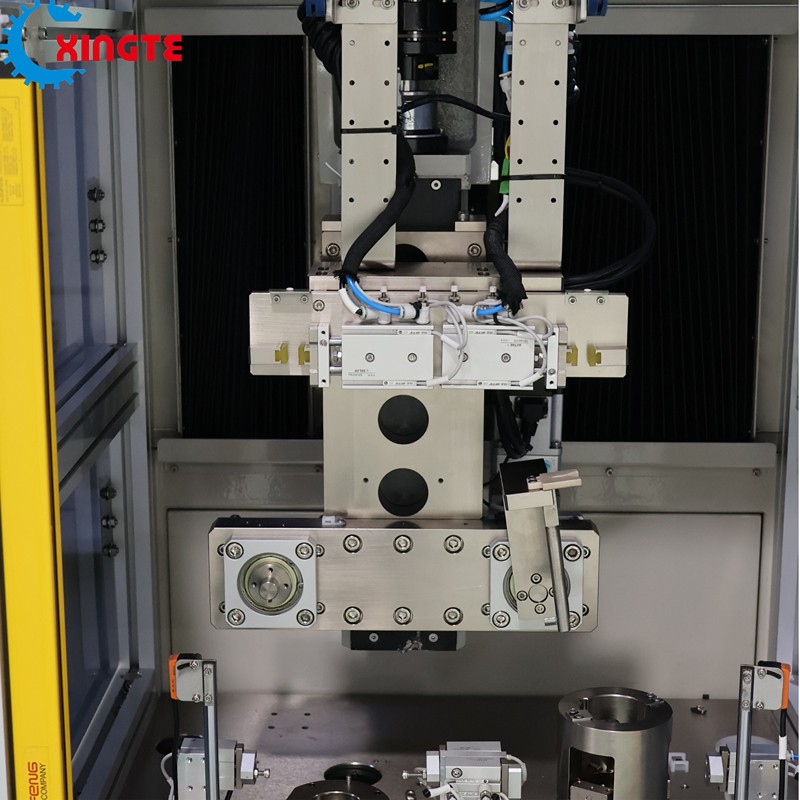

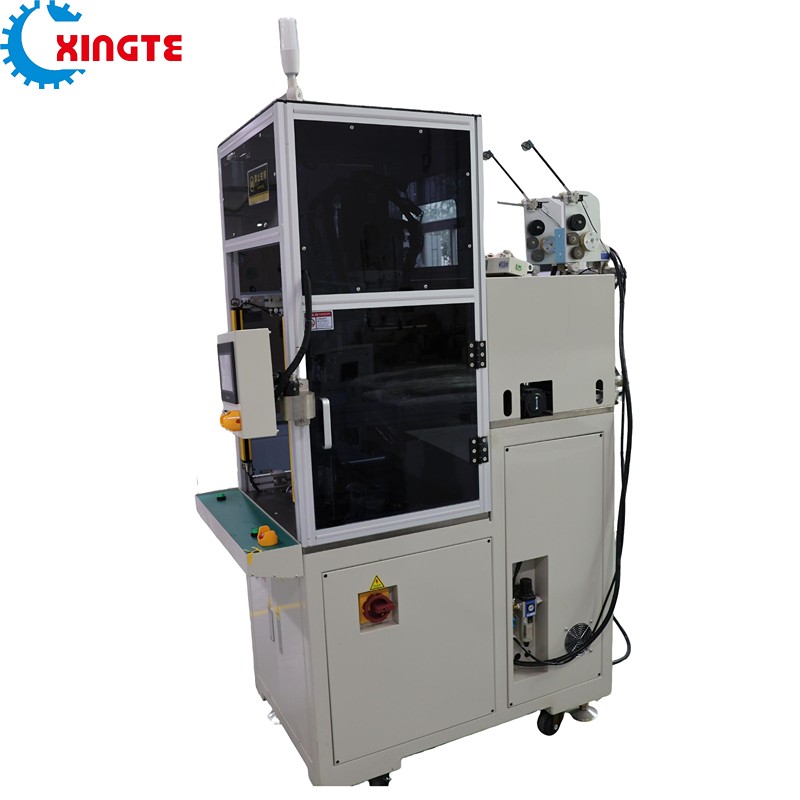

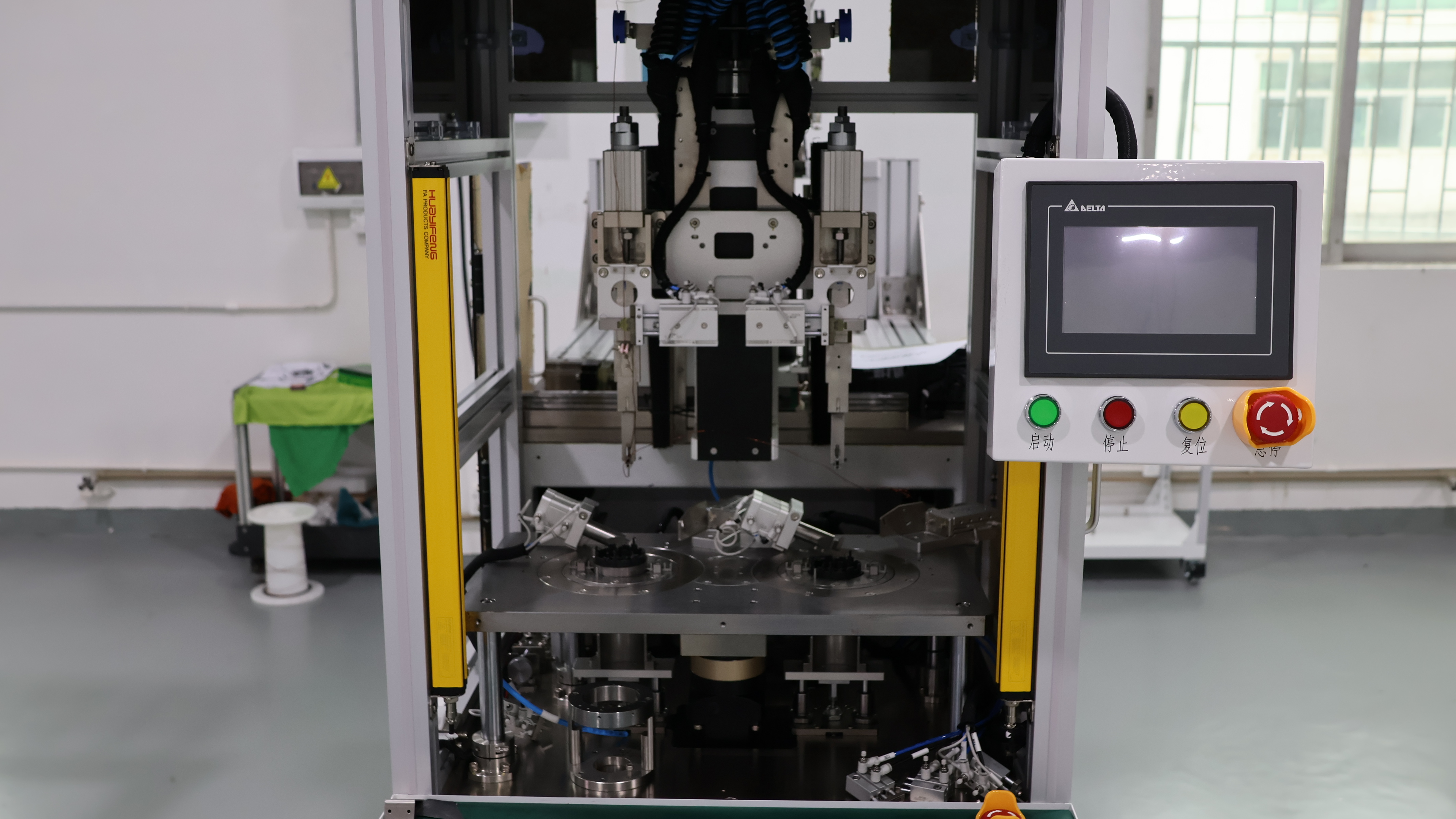

Our machine pictures

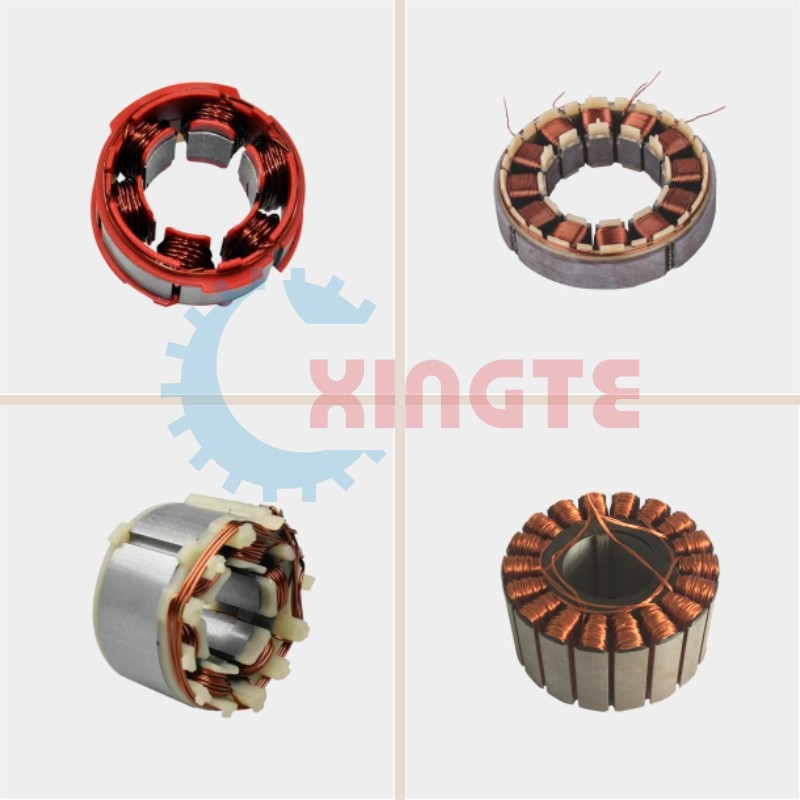

Stator coil samples

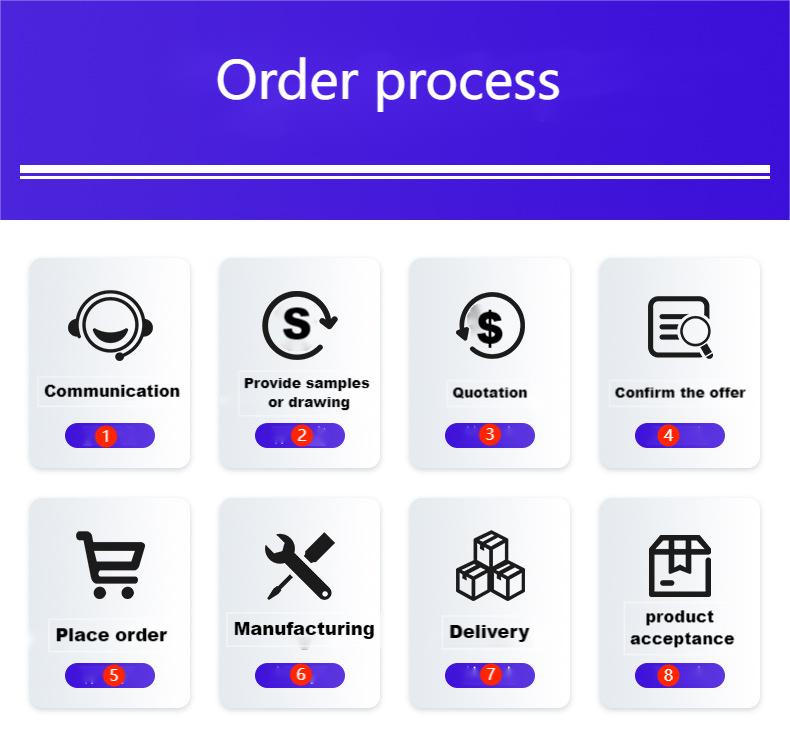

Order process

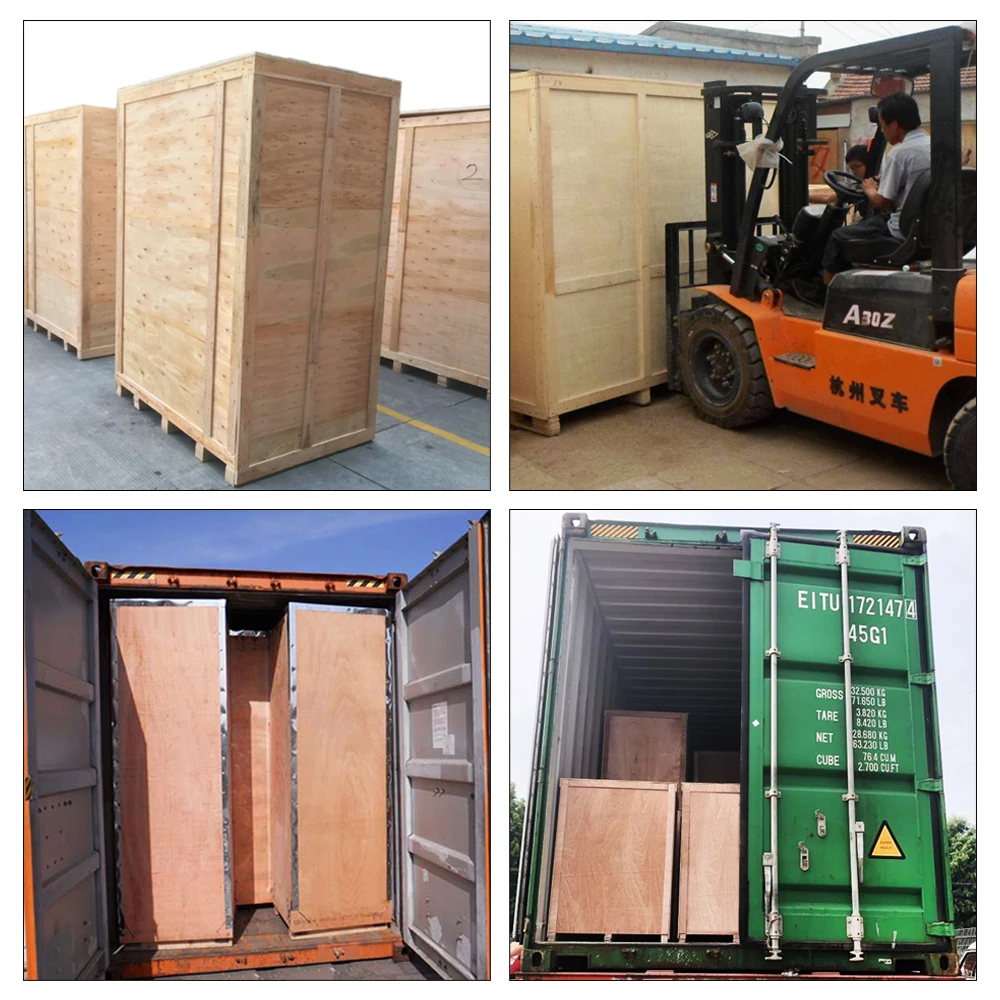

Delivery
