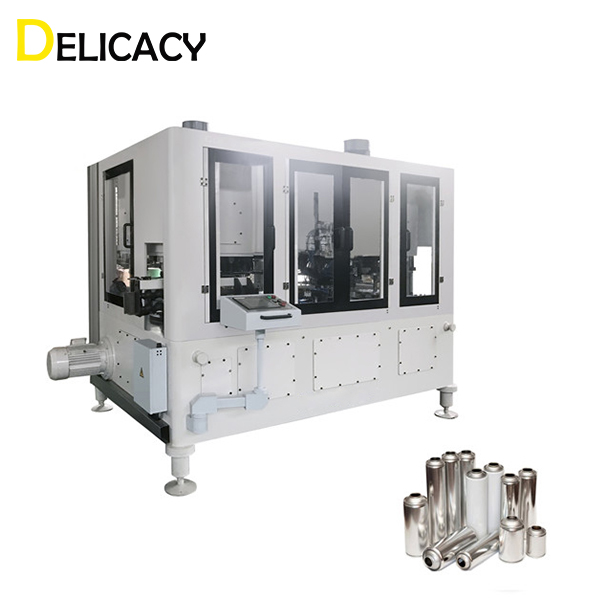

Name: 380V Automatic Aerosol Can Making Machine With CE Certification
Brand: Delicacy
Price: 1 USD

380V Automatic Aerosol Can Making Machine With CE Certification

Categories	Aerosol Can Making Machine
Brand Name:	Delicacy
Model Number:	DP-83
Certification:	CE
Place of Origin:	CHINA
MOQ:	1
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	15SETS/Month
Delivery Time:	30-90
Packaging Details:	Wooden Box/ Customized
Color:	Customized
Automatic:	Yes
Voltage:	3-phase 380V 50Hz
Condition:	New
Warranty:	1 Year
After-sales service provided:	Engineers available to service machinery overseas,Online support,Video technical support
Type:	Aerosol Can Making Machine
Product name:	Aerosol Tin Cans Making Machine

Contact Now

Add to Cart

Company Info.

Delicacy packaging machinery co., ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

380V Automatic Aerosol Can Making Machine With CE Certification

Aerosol Tin Cans Making Machine

Can add pre-necking station, suitable for various tinplate , especially for DR material . Vertical design makes it easy to connect with other machine. Equipped with Recyclable central lubricating system . Use inverter for various speed control Fully automatic control system. Multi-safety design for machine and operator’s safety. No-can, no-cover protection system. Equipped with two separating knives on cone and dome magazine. With safety cover and automatic height adjuster.

Function	Dia. range	Height range	Max speed
Pre-necking ( For DR material)	45-73mm	90-320mm	400CPM
Necking + flanging	45-73mm	90-320mm	400CPM
seaming	45-73mm	90-320mm	400CPM

Capacity:	Tinplate thickness	Diam of copper wire	Welding speed	Welding frequency
500 cans/min	0.16-0.30	1.38mm or 1.50mm	9-57m/min	100-650hz
Can Dia	Can height	Can height	Overlap	Transformer Power
φ52-153	52-99	60-320mm	0.4mm	150Kw

Side stripe powder coating system

Characteristics:

Steady even application Clean and clear side stripe No powder dropping and splashing No environmental pollution, No powder leaking

It works based on the SPWM technology, generating vortex heating by A/C on the welding seam area for curing . Induction oven is characteristic with energy saving , environment-friendly & safety. It fits different can sizes and different speed of production line.

Output frequency	Diameter	Max power	Cooling type
20-30Khz	52-180mm	1.5Kw/ heating coil	Air cooling / water cooling

Non-destructive testing

Imported European high precision transducer, more reliable Equipped with temperature compensation system to improve accuracy With more humanized interface for operation With automatic height adjustment to make changeover more easy
