Dell AOC-QSFP28-100G-3M Compatible 100G QSFP28 Parallel Active Optical Cable AOC

Description

Miray’s QSFP28-100G-AOC is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ SR4 for 100 or 40 Gigabit Ethernet , Infiniband FDR/EDR Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 100 Gbps bandwidth. Each lane can operate at 25Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses an 12 fiber MTP (MPO) connector. This module incorporates Gigalight Technologies proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.

Features

• Quad Small Form-factor Pluggable (QSFP)
• Maximum Aggregate Data Rate 100Gbps
• EDR, FDR, QDR, DDR, SDR (Infiniband)
• 10/25/40/100G Ethernet
• Bi-directional parallel link
• BER<1e-12 From 0 to 50 degree case temp
• CDR no/off automatically
• 10/14/25/28Gb/s per lane, x4 channels
• Up to 70m (OM3)
• Up to 100m (OM4)
• Low power consumption
• Round multi-mode fiber array
• 850nm VCSEL four array
• PIN diode four array
• Hot-Pluggable
• I2C management interface
• 3.3V power supply voltage
• Maximum 2W power consumption

Recommended Operating Environment

Optical Characteristics

Ordering Information

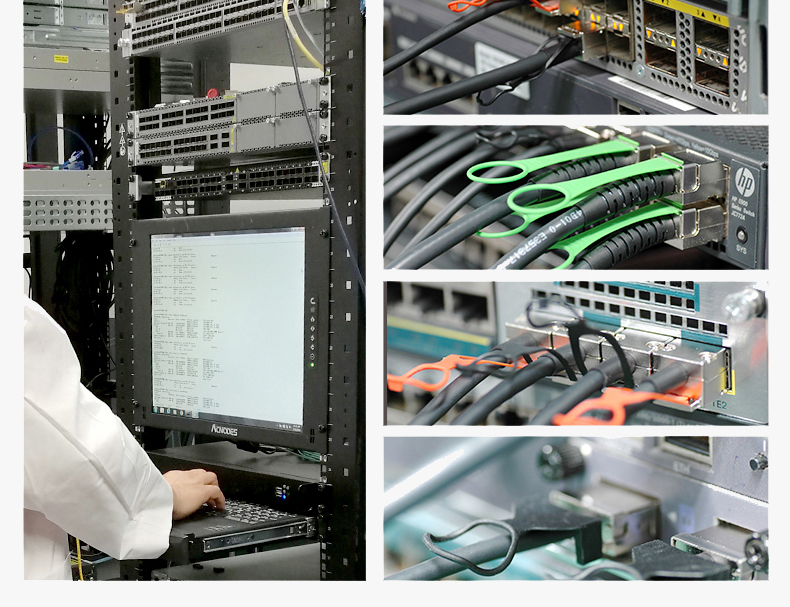

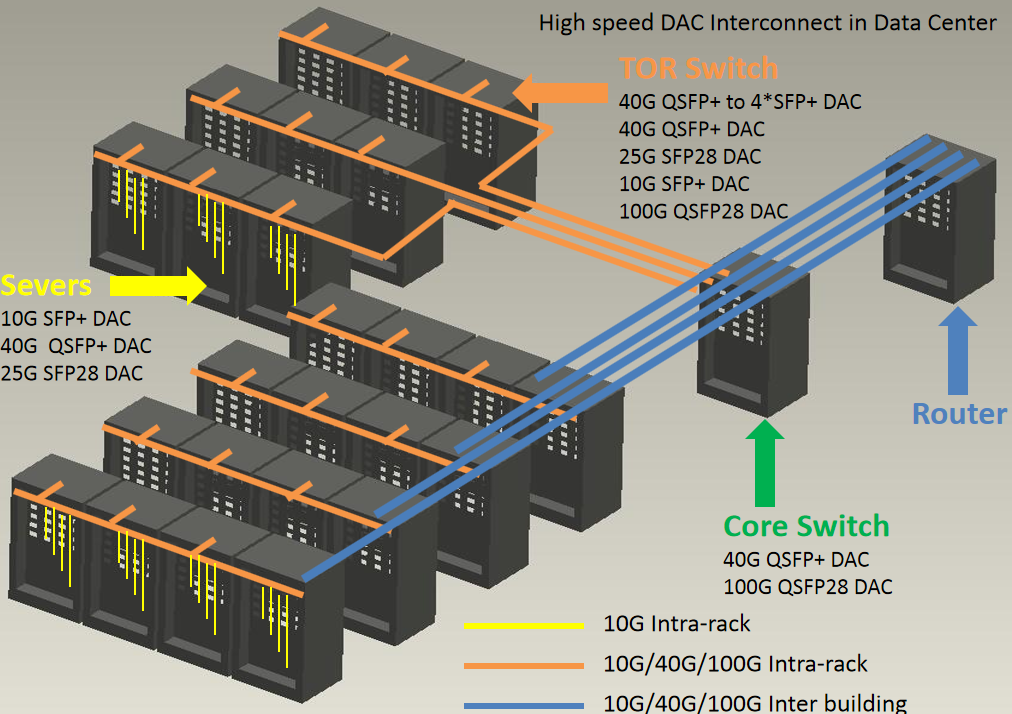

Application

Reliablity Assurance
