1x1 MIMO WLAN 150 Mbps High Speed USB Wifi Module

Stock 0.5$ IOT AP 1x1 MIMO WLAN High Speed 150 Mbps USB WiFi Module HR6022 ODM Solutions With AltoBeam ATBM6022 802.11n

1. Introduction

HR6022 is a highly integrated and excellent performance Wireless LAN (WLAN) USB2.0 network interface device. High-speed wireless connection up to 150 Mbps.

1.1 Overview

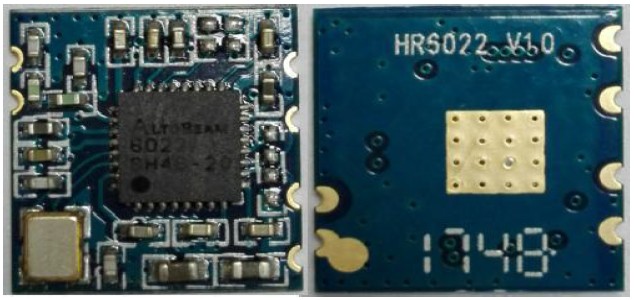

The general hardware for the module is shown in Figure 1. This WLAN Module design is based on AltoBeam ATBM6022. It is a highly integrated single-chip 1*1 MIMO (Multiple In Multiple Out) Wireless LAN (WLAN) USB2.0 network interface controller complying with the 802.11n
specification. It combines a MAC, a 1T1R capable baseband, and RF in a single chip. It is designed to provide excellent performance with low power Consumption and enhance the advantages of robust system and cost-effective.

1.2 SPECIFICATION REFERENCE

This specification is based on additional references listed as below.
iEEE 802.11b
iEEE 802.11g
iEEE 802.11n

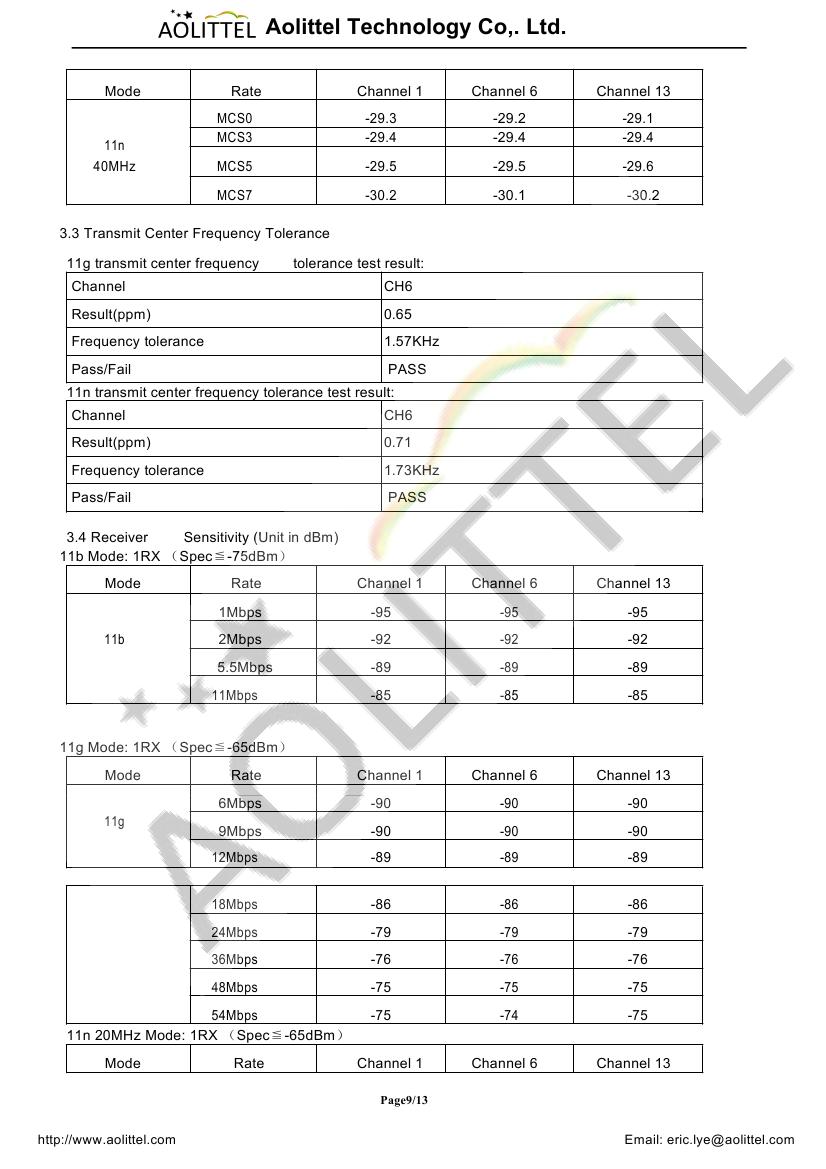

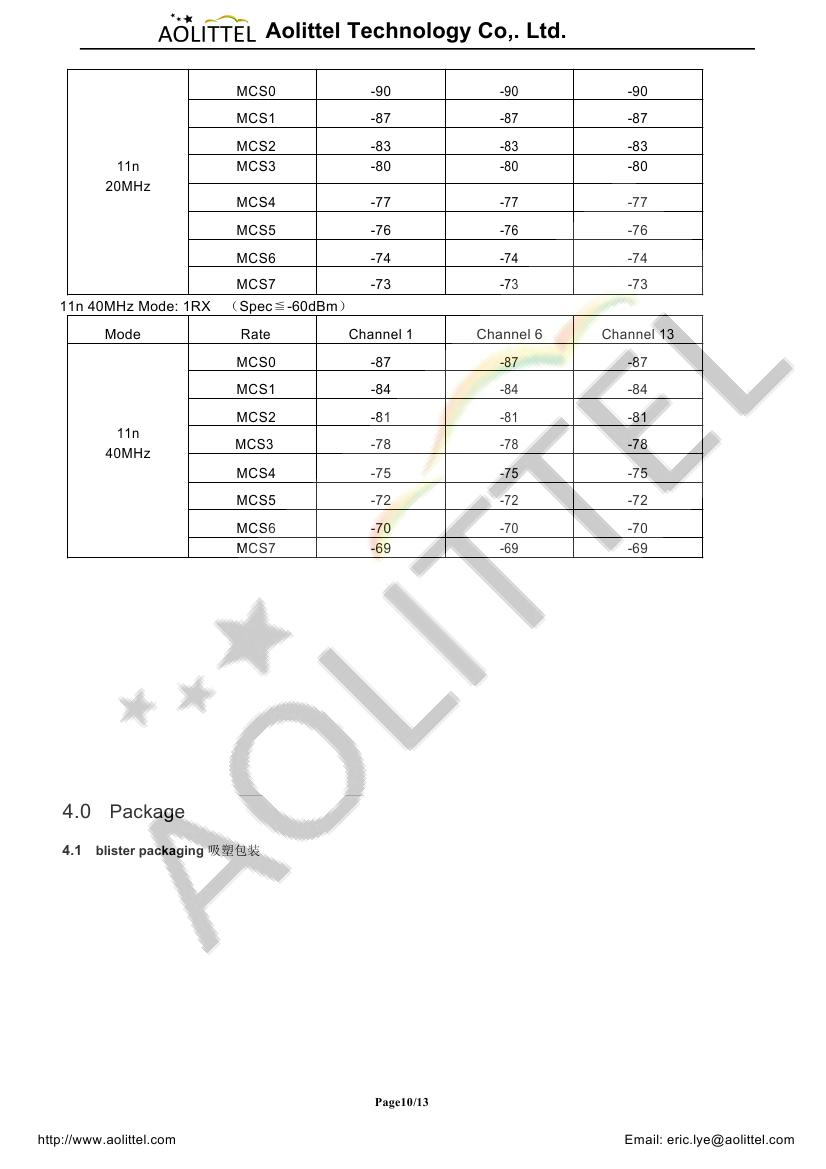

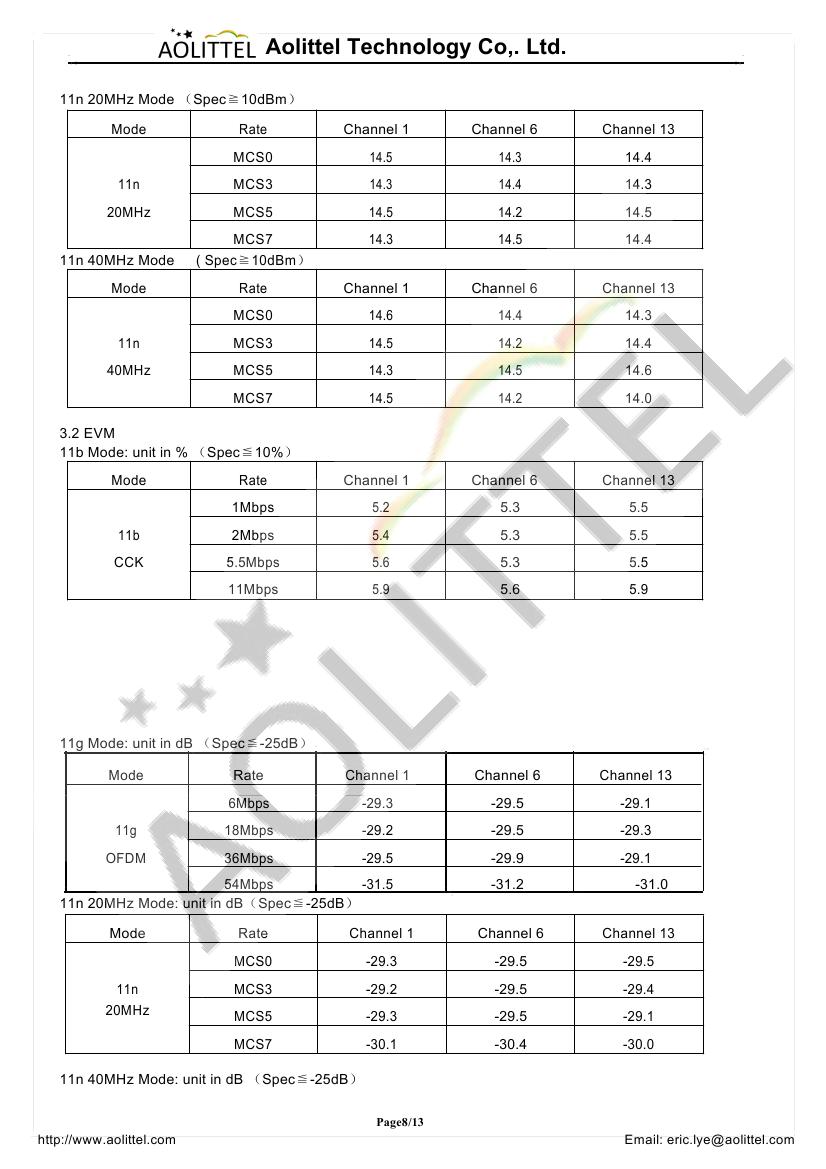

1.3 System Characteristics

2. Mechanical Specification

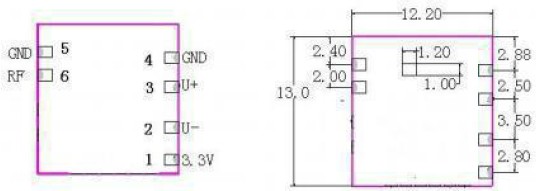

2.1 Outline Drawing L13mm*W12.2mm

2.2 Connector Pin Definition

About us

Aolittel Technology Co., Ltd. new project

Main projects: PCB circuit board production; SMT chip processing, DIP plug-in assembly testing, generation design, OEM and other one-stop production and processing services.
Aolittel Technology Co., Ltd. is a professional manufacturer of all kinds of electronic products. Founded in 2012, the company operates projects: PCB circuit board production; SMT chip processing, DIP plug-in, assembly, testing, generation design, One-stop production and processing services such as foundry materials.
PCB circuit board factory - with automatic production line, factory area of ??more than 10,000 square meters, can be manufactured: single-panel, double-panel multi-layer board, etc. ... monthly production capacity of 60,000 square meters.
SMT SMT processing 5 automatic high-speed SMT patch production lines, factory area of ??more than 6,000 square meters, equipment AOI, X-Ray, automatic printing machine, Panasonic NPM / JUK placement machine 20, can be placed every day - thousand Five million points, all kinds of electronic products can be produced and processed. The factory has ISO certification, 300,000 class dust-free anti-static workshop, providing reliable guarantee for production quality; providing high-quality products for domestic and foreign customers.
The company's products are: set-top boxes, mobile phones, GPS, routers, tablets, game consoles, video cards, electrical motherboards, LCD TV motherboards, equipment control panels, etc...
Companies adhering to the "integrity professional, customer satisfaction, common development, mutual benefit and win-win" business philosophy, with excellent quality, thoughtful service, preferential prices to return each customer.

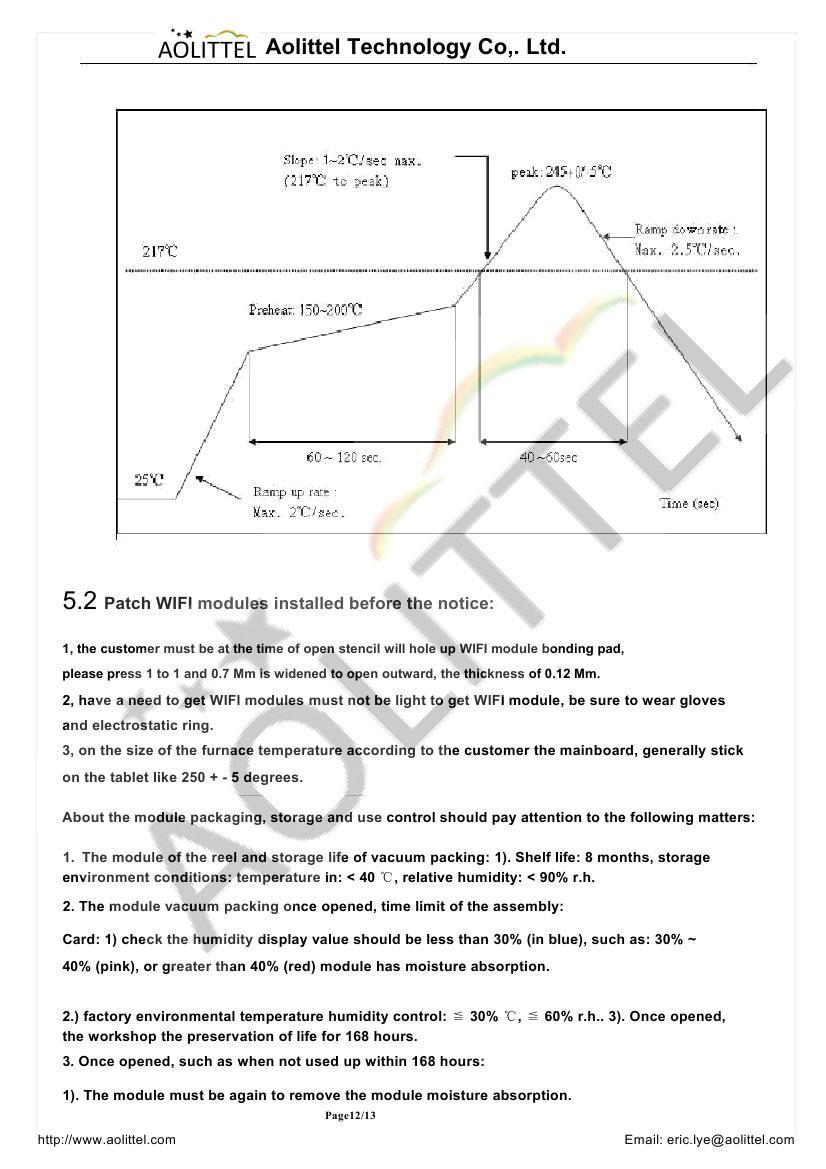

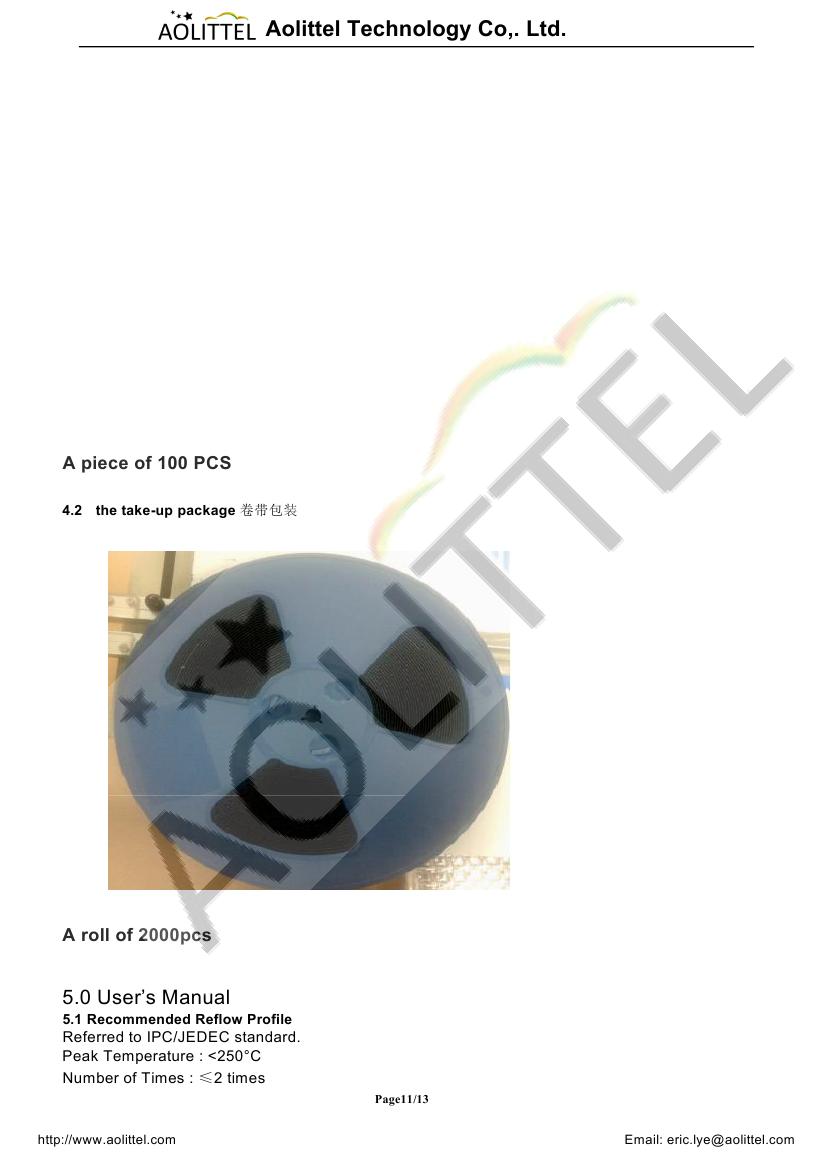

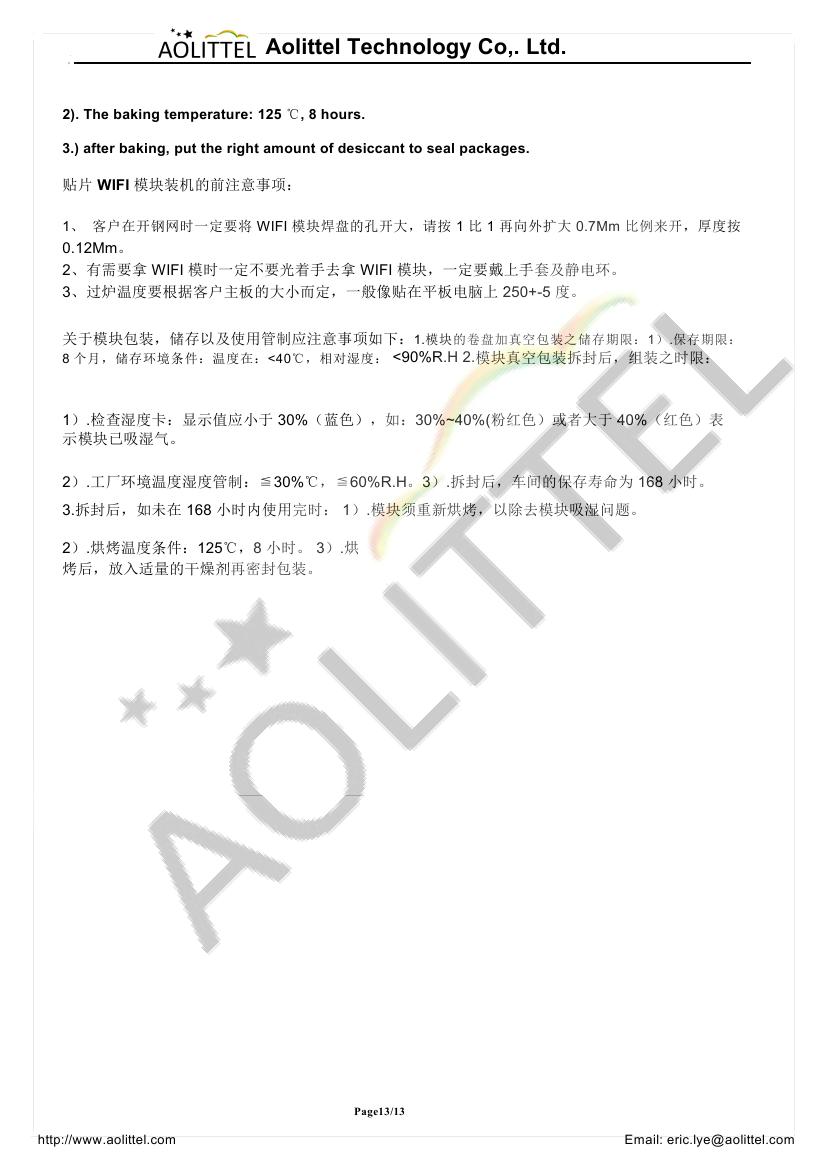

2.3 Layout reference
