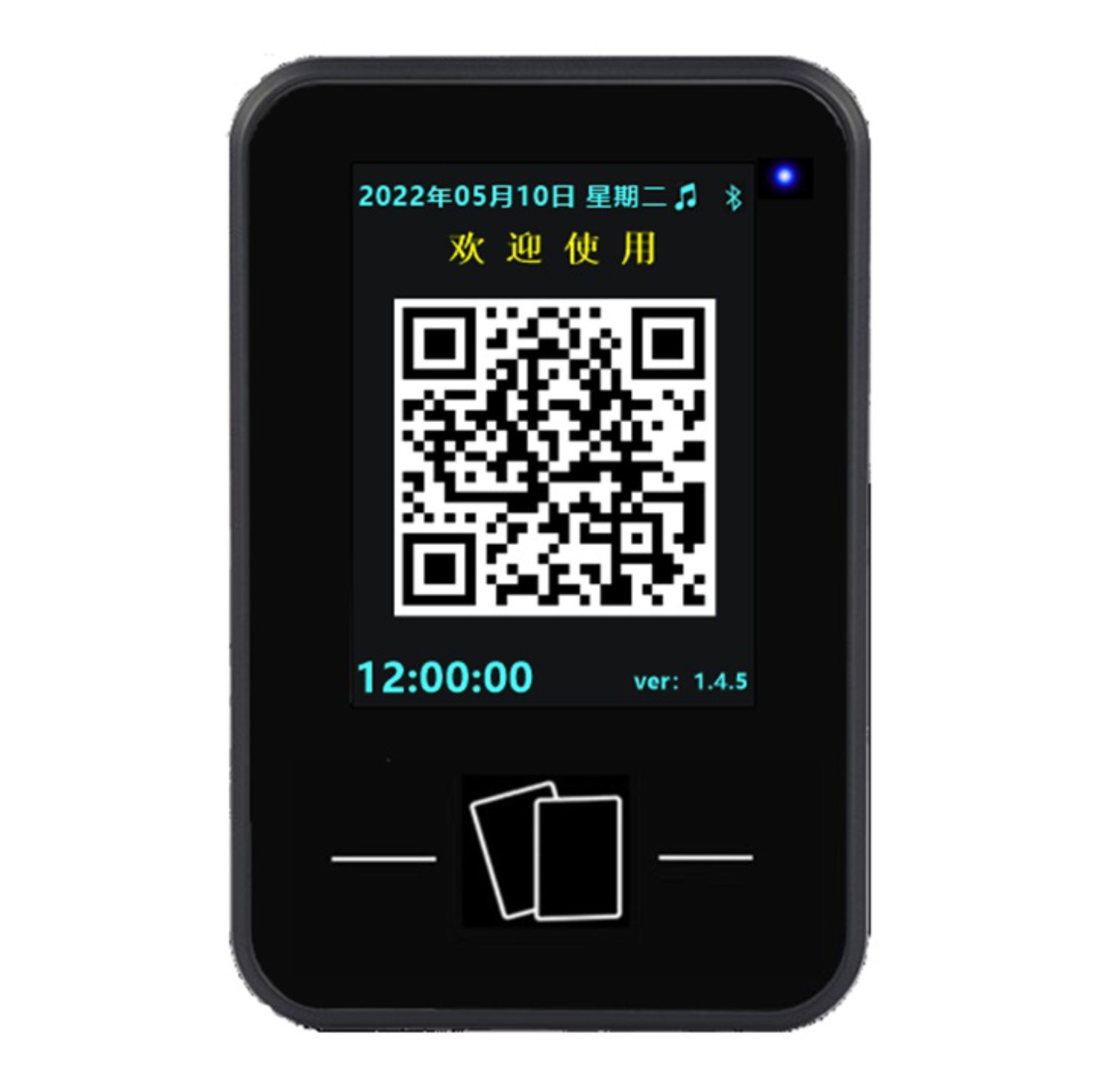

ASK8721E1 Card Reader Access Control Machine Dry contact output, exit button input, door magnet input

Categories	Card Reader Access Control
Brand Name:	Shi Zun
Model Number:	ASK8721E1
Place of Origin:	China
MOQ:	Negotiable
Price:	Negotiable
Supply Ability:	100+pcs+day
Delivery Time:	10 working days
Packaging Details:	115* 75* 21(mm)
Payment Terms:	T/T
Keywords:	Card Reader Access Control
Processor:	Xtensa 32-bit LX6 dual-core processor, with a main frequency of 600 MIPS
Operating System:	FreeRTOS embedded system
Recognition Support:	Bluetooth, IC Card, CPU Card, NFC
Airframe process:	Aluminum alloy CNC carved oxidation
Protocol Support:	HTTP, MQTT, TCP/IP
External Interfaces:	Dry contact output, exit button input, door magnet input
Interaction Methods:	Buzzer, 2.8-inch LCD display
Input Voltage:	DC12V/500mA (Supports 5-30V)
Bluetooth Version:	BLE 4.1
User Storage:	60,000 users
Waterproof Level:	IPX65
Tempered Glass Panel:	9H
Operating Environment:	Temperature: -20°C to 70°C, Humidity 5%-95%
Product Dimensions:	115* 75* 21(mm)
Product Weight:	160g

Contact Now

Add to Cart

Company Info.

Shenzhen Jupin Technology Co., Ltd.

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

ASK8721E1 Card Reader Access Control Machine Recognition Support CPU Card, NFC, Touch Password

ASK8721E1 Card Reader Access Control Machine Description:

Network Options: Ethernet / WIFI
Access Methods: QR Code Unlock/ IC card / CPU card / ID card / Mobile NFC / Bluetooth
Communication Protocols: HTTP, MQTT, TCP/IP; Cloud Platform Management, Mini Program Remote Management
Features: Remote door unlocking, customizable anti-duplication options, support for customized voice playback, screen UI customization
Support for Secondary Development and Integration with Third-Party Platforms
Material: Tempered Glass Panel / ABS Casing / Waterproof

ASK8721E1 Card Reader Access Control Machine Parameters:

Processor	Xtensa 32-bit LX6 Dual-Core Processor, Main Frequency 600 MIPS
Operating System	FreeRTOS Embedded System
Identification Support	Bluetooth, IC card, CPU card, NFC, touch password
Protocol Support	HTTP, MQTT, TCP/IP
External Interfaces	Dry Contact Output, Exit Button Input, Door Sensor Input
Access Methods	QR Code Unlock/ IC card / CPU card / ID card / Mobile NFC / Bluetooth
Interaction Modes	Buzzer, OLED display, LED backlight
Input Voltage	DC 12V / 500mA (supports 5-30V)
Product Dimensions	115* 75* 21(mm)
Product Weight	160g
Material	Tempered Glass Panel / ABS Casing / Waterproof
