| Categories | Binzel Welding Torch |
|---|---|
| Model Number: | 25AK |
| Certification: | CE CCC ISO9001 |
| Place of Origin: | Changzhou China |
| MOQ: | 1pc |
| Price: | negotiation |
| Payment Terms: | Western Union,, T/T,paypal,credit card |
| Supply Ability: | 100 set one day |
| Delivery Time: | 1-10 days |
| Packaging Details: | 1pc packing in box , then 5pcs packing in carton |
| Name: | Binzle welding torch 25AK mig torch |
| Material: | copper |
| Packing: | 1PC packing small box |
| Certificate: | CCC |
| Rating: | 300A CO2, 270A Mixed gases |
| Duty cycle: | 60% |
| lengthe: | 3m 4m 5m |
Binzel Welding Torch 25ak air cooling welding torches 3/4/5 m
Our company produces :
1 . MIG/MAG,CO2 : Binzel 14AK , 15AK ,24KD , 36KD , 501D , Panasonic 180A , 200A , 350A , 500A , Bernard 200E , Bernard 300E Bernard 400E , Bernard 600E ,Tweco 2# , Tweco 3# , Tweco 4# , Tweco 5# , Fronius AW4000 , AW5000 , AL3000 , AL4000 , Saf welding torch , Miller , and tregaskiss and gas nozzle,contact tip , contact tip holder , swan neck , gas diffuser liner etc .
2 . Tig : WP12 , WP9 , WP17 , WP18 , WP26 welding torches and torch head (F / FV / V / P) , collet , collet body , gas lens , ceramic nozzle , aluminal nozzle , long / mediu / short cap etc.
3 . Air plasma cutting : P80 , P160 , PT31 , AG60 , SG55 , JG60 , JG100 ,Trafimet serise , Hypertherm , and Thermal dynamics cutting torches , torch head , nozzle , electrodes , tips ,
ceramic shield cap , white wheel , swirl ring etc .
4 . cable joint , earth clamp
5 . welding helmet , electorde holder
6 . tungsten electrode

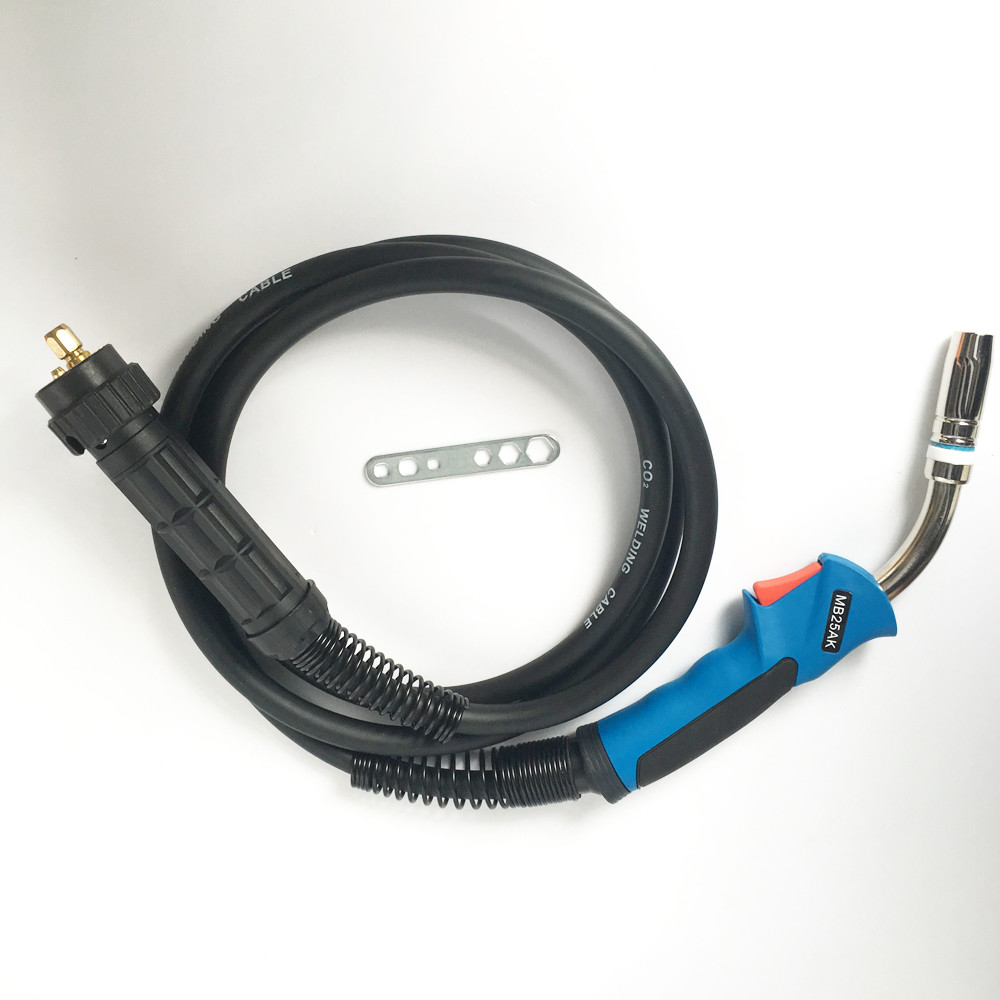

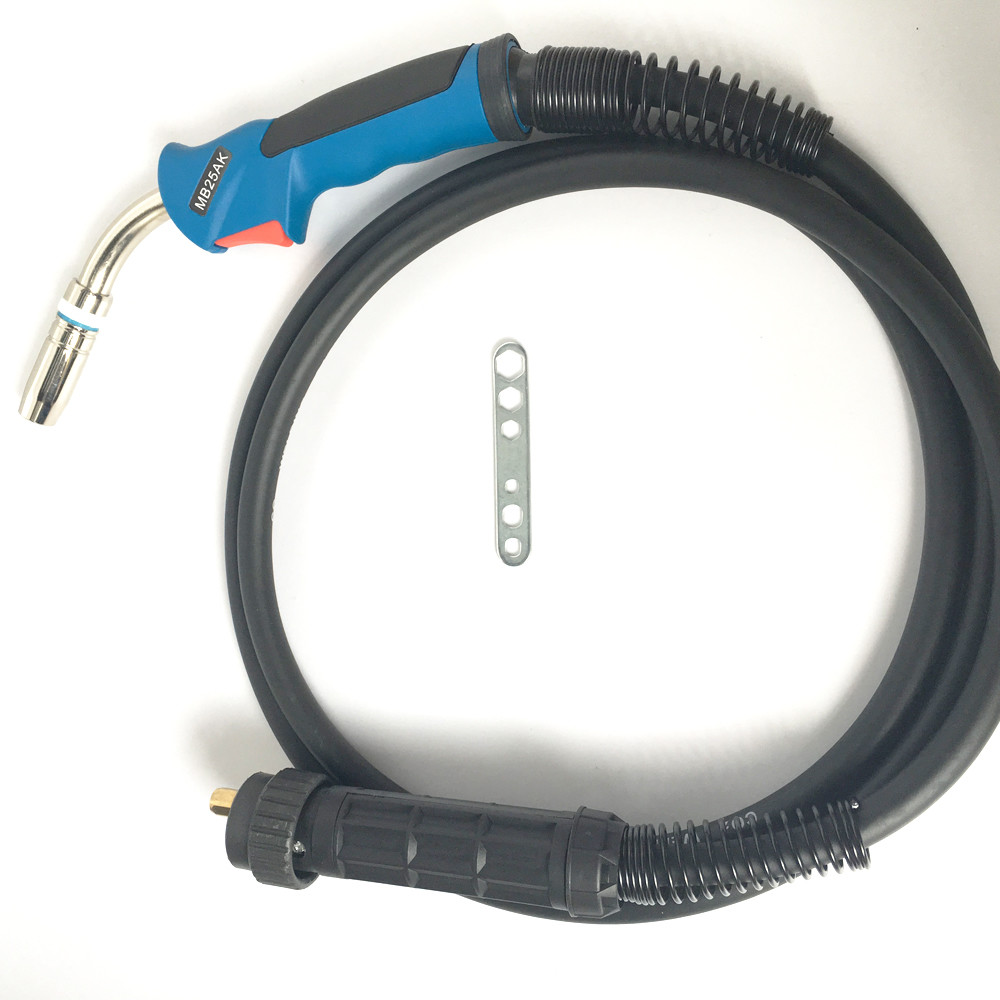

| 1 . 25AK mig torch Binzle welding torch mig welding torch view: |
| 2. 25AK mig torch Binzle welding torch mig welding torch technology data: |
| Model | MB-25AK Complete torch -3Meters | MB-25 AKComplete torch -4Meters | MB-25AK Comlete torch -5Meters |
| Item No. | 004.0312 | 004.0313 | 004.0314 |
| Welding Type | MIG/MAG CO2 torch | ||
| Rating | 230A CO2 200A Mixed Gases | ||
| Duty Cycle | 60% | ||
| Wire Size | 0.8-1.2mm | ||
| Cooled Type | Air Cooled | ||
| Connector Choosend | Euro,TBI,Panasonic,Miller,OTC,Bernard,Tweco etc. | ||
| Handle Choosen | Binzel(old type),Binzel(grip type),TBI | ||
| Net Weight | 2.5KG | 3KG | 3.5KG |
| Gross Weight | 2.8KG | 3.3KG | 3.8KG |
| Packing Size | 34*34*6CM | ||

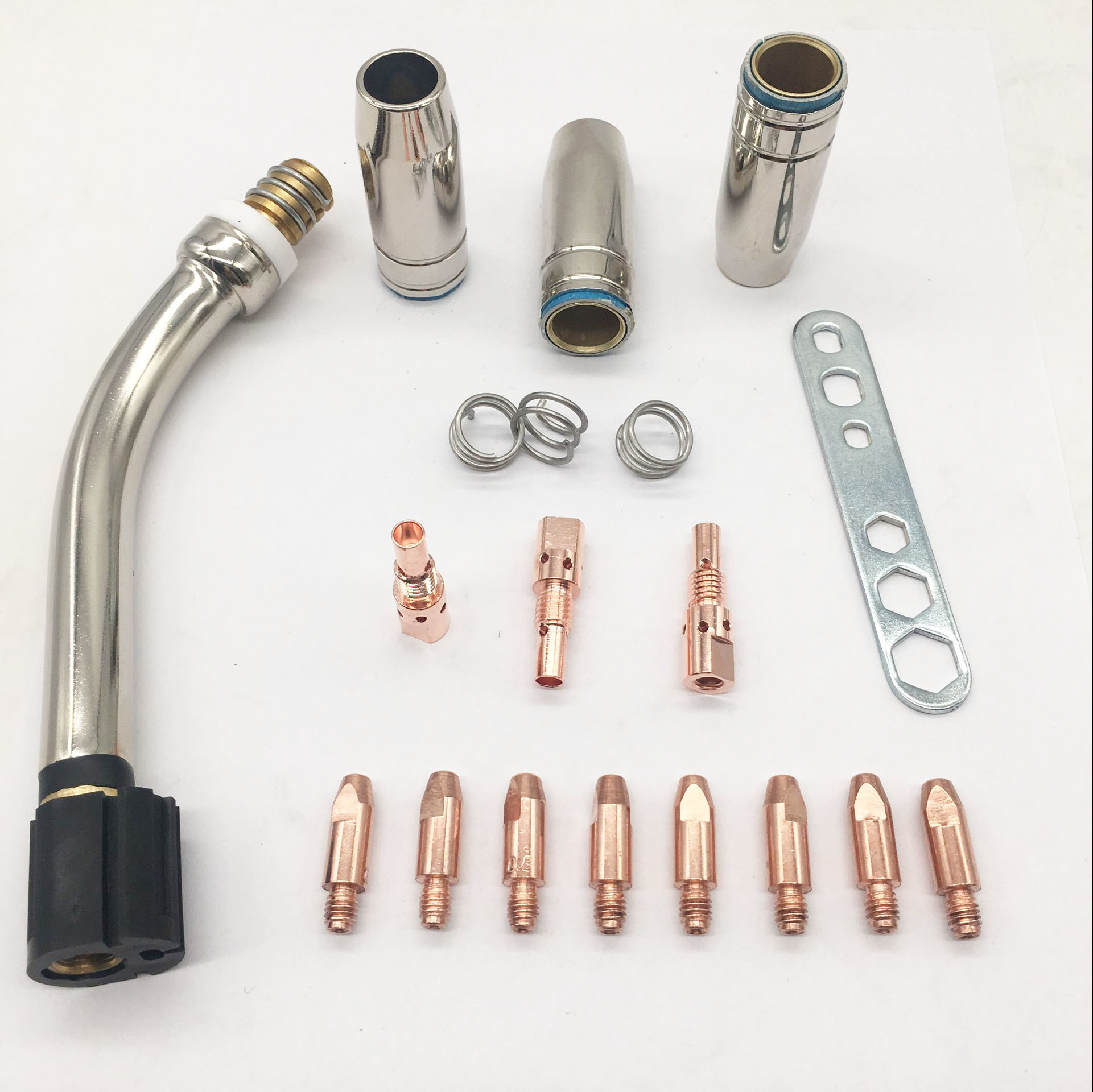

| 3. 25AK mig torch Binzle welding torch mig welding torch Item No: |
| OEM # | Description |
| 004.0312 | MB-25AK Complete Welding Torch-3M |
| 004.0313 | MB-25AK Complete Welding Torch-4M |
| 004.0314 | MB-25AK Complete Welding Torch-5M |
| 145.0042 | Cylindrical Nozzleφ18mm |
| 145.0076 | Conical Nozzleφ15mm |
| 145.0124 | Tapered Nozzleφ11.5mm |
| 140.0051 | Contact tip M6*28*0.8,E-cu |
| 140.0169 | Contact tip M6*28*0.9,E-cu |
| 140.0242 | Contact tip M6*28*1.0,E-cu |
| 140.0379 | Contact tip M6*28*1.2,E-cu |
| 140.0054 | Contact tip M6*28*0.8,CuCrZr |
| 140.0172 | Contact tip M6*28*0.9,CuCrZr |
| 140.0245 | Contact tip M6*28*1.0,CuCrZr |
| 140.0382 | Contact tip M6*28*1.2,CuCrZr |
| 003.0013 | Gas Nozzle Holder |
| 012.0183 | Gas Diffuser |
| 904.0004 | Swan Neck |
| 180.0076 | Handle |
| 185.0031 | Switch |
| 500.0213 | Adapotor Nut |
| 501.0003 | Central ConnectorKZ-2 |
| Steel liner,For wireφ0.8-1.0,3.5M | |
| Steel liner,For wireφ0.8-1.0,4.5M | |
| Steel liner,For wireφ0.8-1.0,5.5M |
| 4. 25AK mig torch Binzle welding torch mig welding torch packing |
.1piece Binzle welding torch 25AK mig torch mig welding torch packed in a box
. then 5pcs packed in a box(box size 34*34*7CM)
| 7.FAQ: |
Q1:Can I get a free samples to check the quality of Binzle welding torch 25AK mig torch mig welding torch?
A:Sure,we can supply the free samples which price is low than US$5.
Q2:Will I afford the carrier charge of Binzle welding torch 25AK mig torch mig welding torch?
A:Yes,you will afford the express charge or your account is OK.
Q3:Can I add my trademark on my products of Binzle welding torch 25AK mig torch mig welding torch?
A:Yes,we need your certificate of authorization.
Q4.Welding torch payment terms:
A:T/T,L/C,Western union all support.
Q5:welding torh Delivery time:Sample order 2 working days, 500pcs order 10 working days.
Q6:Min order: 1 pc Binzle welding torch 25AK mig torch mig welding torch
|
