| Categories | Helmet Testing Machine |
|---|---|
| Brand Name: | ZL |
| Model Number: | ZL-2201 |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 set per month |
| Delivery Time: | 7-10 days |
| Packaging Details: | Safety Shoes / Helmet Impact Testing Machine is Packaged within wooden case |
| Power: | 220v 50hz |
| Drop Height: | 0~1100mm |
| Striker Weight: | (EN) 20±0.2kg, (BS, ANSI) 22.7KG |
| Impact Energy: | (EN)200J, (BS, ANSI)1002J |
| Striker: | (EN)3±0.1mm, (ANSI)ø25.4 |
| Warranty: | 220v 60hz |
| Product name: | Safety Shoes / Helmet Impact Testing Machine Steel Striker Available 220V 60hz |
| Key words: | Safety Shoes , Impact |
| Company Info. |
| Dongguan Zhongli Instrument Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

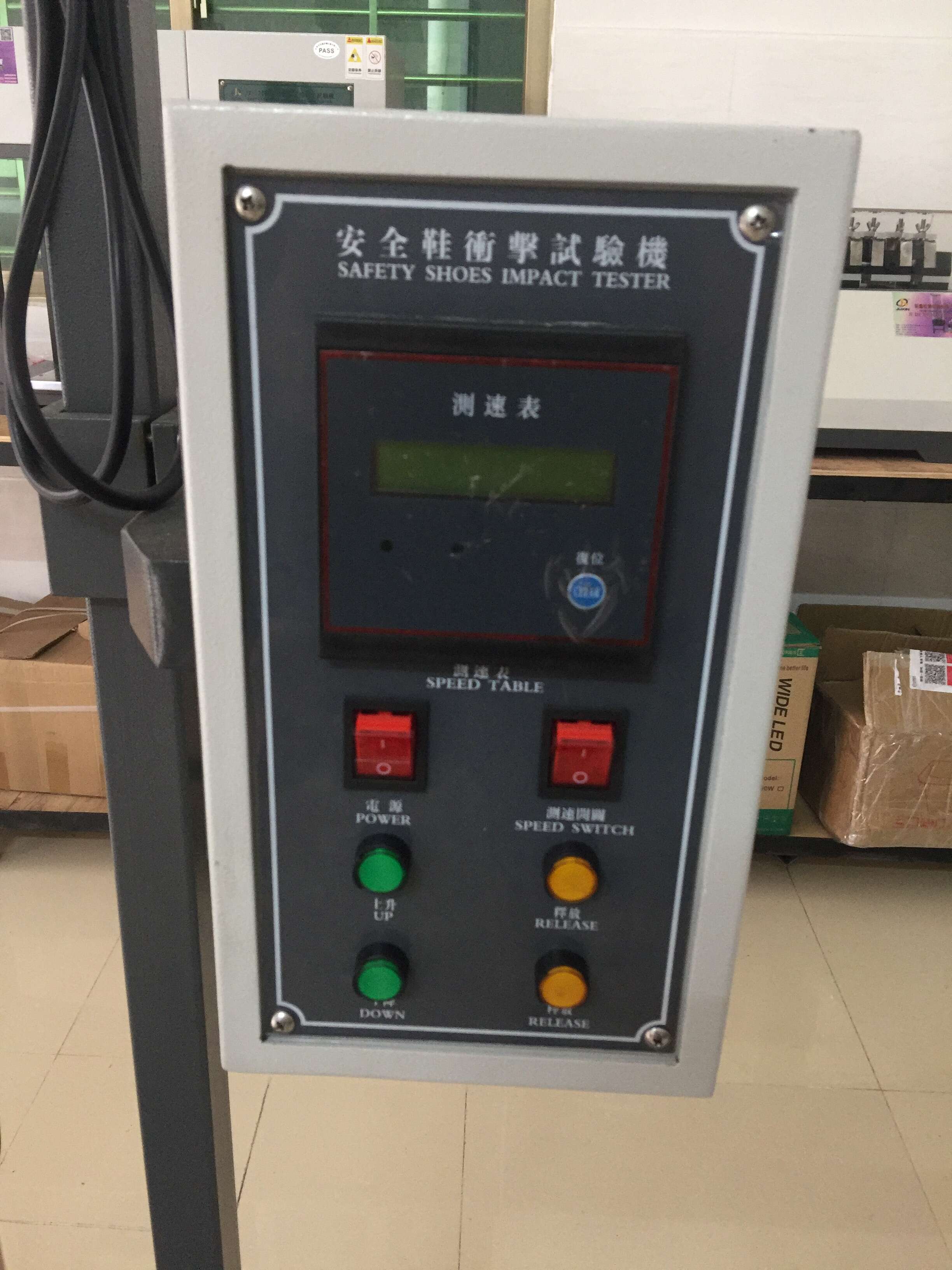

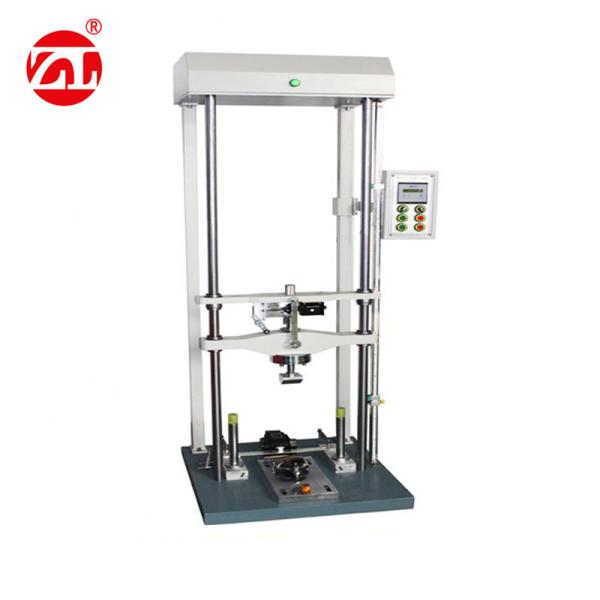

Safety Shoes / Helmet Impact Testing Machine
Introduce:

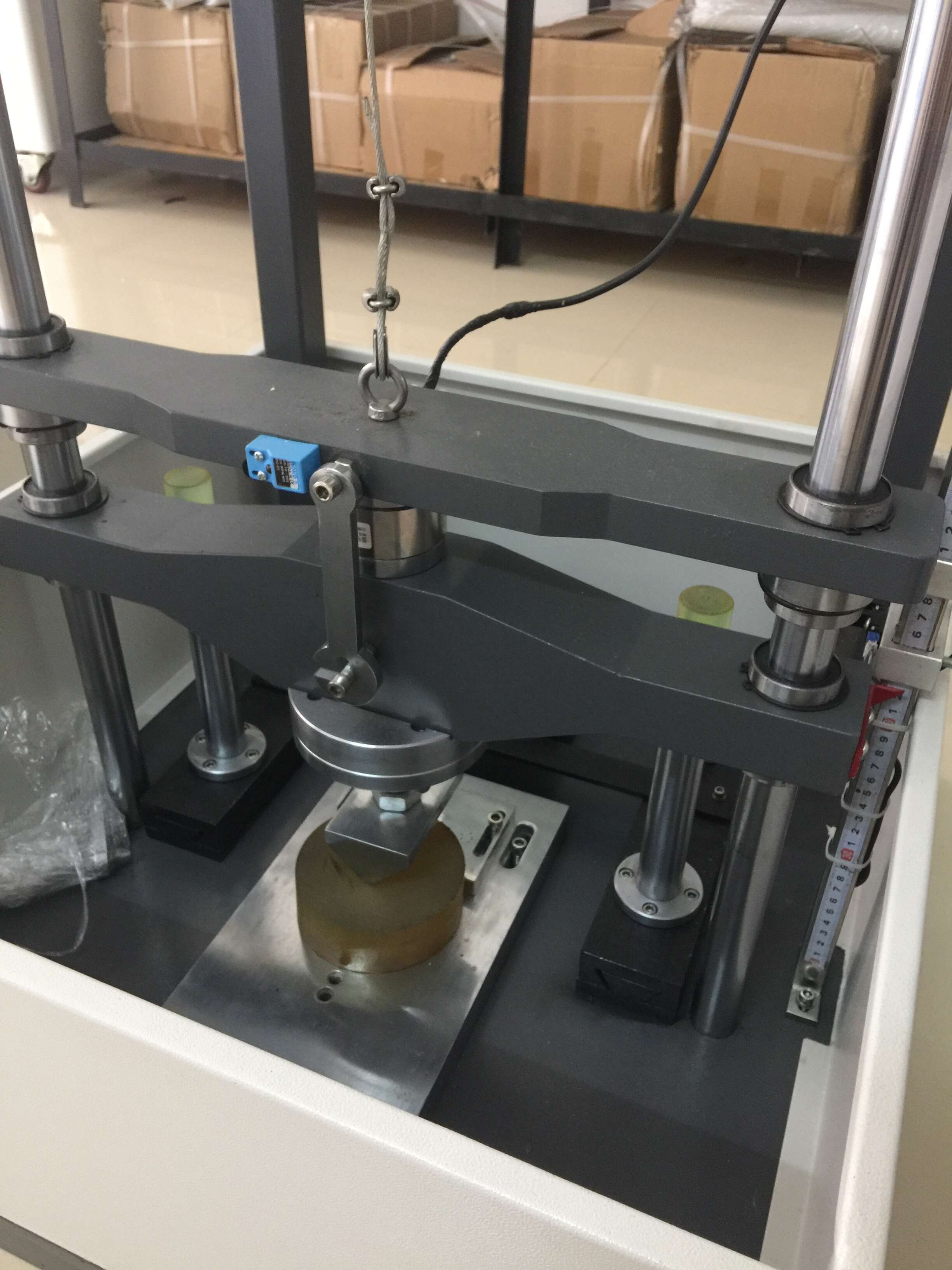

Safety shoes impact tester is installed a steel striker adaptered to fall freely on vertical guides from
a predetermined height to give the required impact energy to the toe of safety footwear for measuring
the degree of the dent. In addition, the toecap should not develop any cracks on the test axis with go through the material.
ZL-2201 Safety shoes impact tester.wps
Standard:
It complies with BS-953, EN-344, ANSI-41, CSA-Z195, ISO 8782
Technology Parameters:
| Model | Safety shoes impact tester |
| Striker Weight | (EN) 20±0.2kg, (BS, ANSI) 22.7KG |
| Drop Height | 0~1100mm auto adjustable |
| Impact Energy | (EN)200J, (BS, ANSI)1002J |
| Striker | (EN)3±0.1mm, (ANSI)ø25.4 |
| Dimension | 70×70×180cm |
| Weight | 185kg |
| Power | AC220V/50Hz or others |
|
