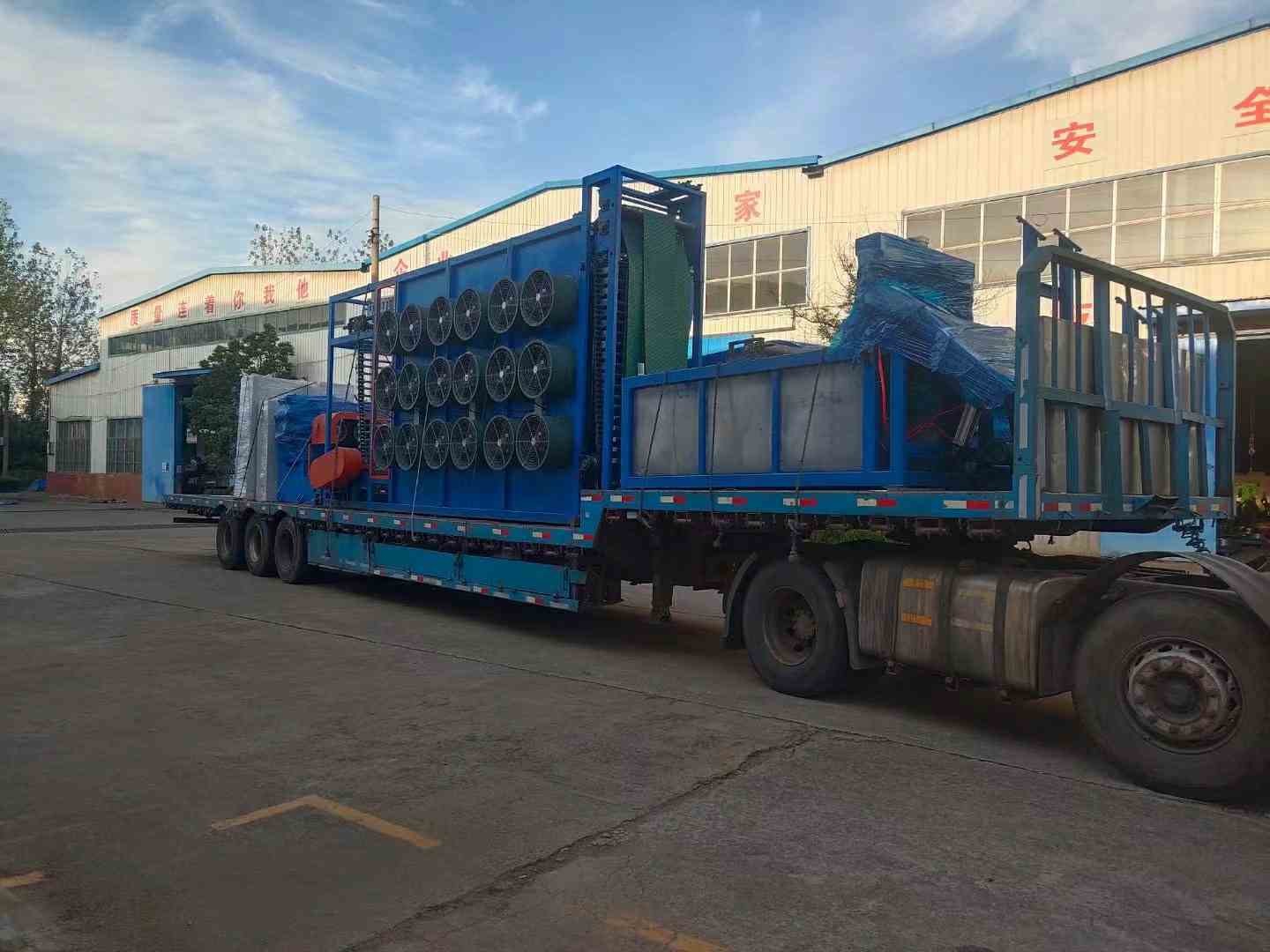

Automatic 28.8Kw Batch Off Rubber Cooling Machine XPG800 Blue

Automatic Batch Off Cooler Machine For Making Rubber Products

Batch Off Cooler Machine For Making Rubber Tube

1. Working conditions
1.1 Equipment use: The film is pressed, soaked, cooled and dried, and then placed (manually) for the next process.

1.2 Equipment use environment: altitude <1000m, the highest temperature is 40℃, the lowest temperature is 5℃; the relative humidity is up to 95%.
1.3 Power supply: AC380/AC220, 50Hz;

1.4 Cooling water: water temperature 25±5℃; water pressure 0.3-0.4MPa; consumption: 6m³/h.

1.5 Compressed air: pressure: 0.5～0.8MPa, consumption: 0.3m³/min

2. Scope of supply

2.1 Access device 1 set
2.2 1 set of pressing device
2.3 1 set of dipping device
2.4 Clamping and lifting device 1 set
2.5 1 set of air cooling device
2.6 1 set of pendulum device
2.7 Pneumatic control device 1 set
2.8 Electrical control system 1 set
2.9 Fixing connecting bolts for equipment parts 1 set

2.10 1 set of expansion bolts for fixing equipment
Description of the scope of supply: The cable of the operation box and the electric control cabinet inside the machine is the responsibility of the supplier; the buyer is responsible for the main cable and connected to the main cabinet. The purchaser of external pipelines such as main water and gas pipes is responsible for connecting them to the machine interface, including the connected valves.

3. Main technical parameters
3.1 The maximum width of the film is 600mm
3.2 Film thickness 6～8mm
3.3 Hanging rod spacing 101.6mm
3.4 The distance between the upper and lower hanging glue rods is about 2500mm
3.5 Film hanging maximum height 2000mm

3.6 The moving speed of the glue rod is 0.23---2.2m/min
3.7 Access motor power 1.5KW
3.8 The maximum linear speed of the film is 35m/min
3.9 Axial fan NO.5 0.75KW

3.10 Number of fans 18 sets

3.11 Overall length of the line about 11 meters.
3.12 Installation method Floor type
