High Speed Slip Ring Max Speed 1500RPM Hole Size Customizing Available

Description of G2056 High Speed slip ring

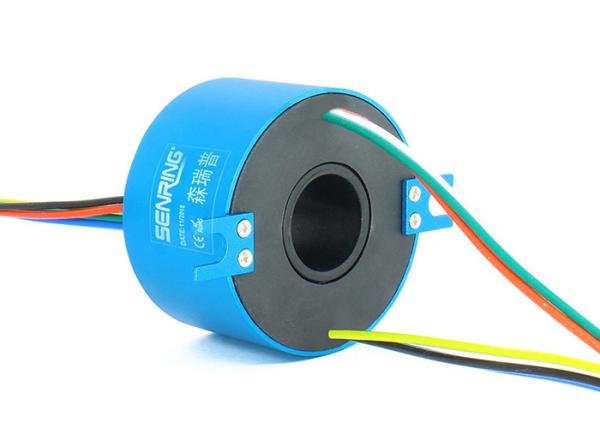

SenRing G2056 series high-speed slip rings, with a bore size of 20mm and an outer diameter of 56mm, can reach a maximum speed of 1500 rpm. It is a high-speed rotating conductive device developed specifically for high-speed rotating equipment. With patented technology and key materials imported from Germany, it is more wear-resistant and has better conductivity than traditional slip rings.

Features of G2056 High Speed slip ring

1. Maximum speed of 1500 rpm;

2. Hole size of 20mm, outer diameter of 56mm, customizable slip ring hole size;

3. Imported permanent lubrication bearings, high wear resistance, maintenance-free for life;

4. Key materials imported from Germany, high-quality gold-plated rings to ensure reliable power and signal transmission;

5. Low torque, low loss, high stability, and extremely long lifespan.

Drawing of G2056 High Speed slip ring

Standard model list

*Remark: Circuits can be combined in parallel for bigger current,N circuits of 10A to get N*10A,such as 2 circuits of 10A in parallel for 20A use.Pls contact the SENRING salesman if you need customize the channel no. of Ethernet,power and signal,or mix other signals.

FAQ:

1. About our factory.
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

SENRING Electronics Co., Limited found in 2010, is a worldwide designer, manufacturer of slip rings and rotary joints integrating research, testing, production and sales, owing a scaled factory more than 7000㎡ & 200 staffs as well as a experienced R&D center in Shenzhen. Innovative technology, high quality products and excellent solutions contribute to the leading level of Senring products in slip ring industry. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Senring obtain strusts from more and more customers all over the world, such as Huawei, Foxconn, Siemens...... Depending on strong R&D ability and close cooperation with well-know enterprises & research institutes, Senring could not only provide standard industrial slip rings, but also customize different slip rings according to customer’s different requirements.

Professional Team

All of our R&D engineers have bachelor education background as well as rich experiences in machinery structural design and industrial control, all staffs in testing center and production line are above the education of technical school, qualified employees contribute to the reliable products.

Processing Center

Senring owes series of processing machines more than 20sets : injection machine, CNC, lathe, miller.... Senring could not only provide standard industrial slip rings, but also customize different slip rings according to customer’s requirements :OD from 6.5mm to 4 meters, circuits from 1 to 600, current from milliamp to 800 Amp, voltage from millivolt to 10, 000volt, rotating speed from 0 rpm to 12000rpm, and from electrical slip ring to fiber optic rotary joint.......

Center through bore size:besides of standard size, can be customized

Circuits:1~600 circuits ( optional)
OD: 6.5mm ~4 meters (can be customized )
Current: milliamp ~ 800 Amp
Voltage: milliamp ~10, 000volt
Rotating speed: 0~12000rpm
Signal Type: besides of power, can be combined to transmit VGA, HDMI, high frequency, fiber, Ethernet, USB, Profibus.......
Media Type:can be combined to transmit air, gas, water, oil ....(one channel or more channels)

Senring slip ring could be customized according to above different Spec requirements

Industry exhibition

Since its establishment over a decade ago, Senrui Pu has participated in dozens of domestic and international exhibitions of various kinds.

Cooperative Partner

We are Trusted by World Famous Companies.

Certificates / Patents

SENRING gives high priority to the quality, we bring a full sets of testing equipments for all slip rings, each product will be tested strictly before delivery.
