| Categories | Bluetooth Barcode Scanner |
|---|---|
| Brand Name: | symcode |
| Model Number: | MJ-6706B |
| Certification: | CE / RoHS / FCC |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Payment Terms: | T/T, Western Union, D/P, D/A |
| Supply Ability: | 50,000pcs per month |
| Delivery Time: | Sample order:1-3 days / Bulk order:7-15days |
| Packaging Details: | Carton box |
| Reading Mode: | CMOS |
| Decode: | 1D 2D |
| Interface: | BLUETOOTH |
| Scanning speed: | 100±2 times /s |
| Scanning angle: | ±60°±65°±42° |
| Resolution: | 4mil |
| Battery: | DC 3.7V,1800mA Li-ion battery |
| Dimension: | 150mm*50mm*65mm |
| Bluetooth module: | Bluetooth module 4.0 |
| Depth of scan field:: | 40mm~300mm |

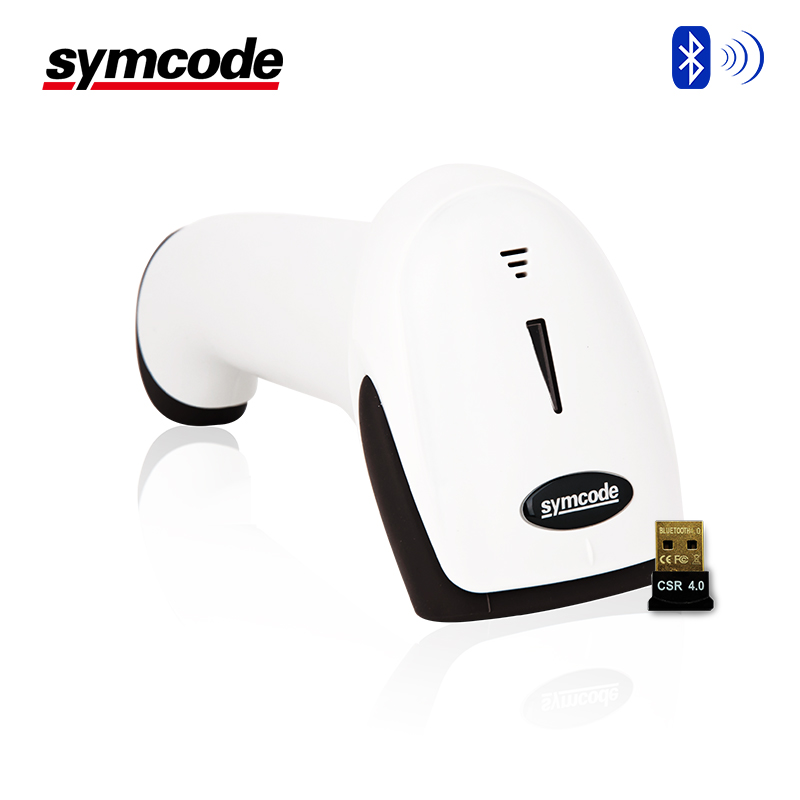

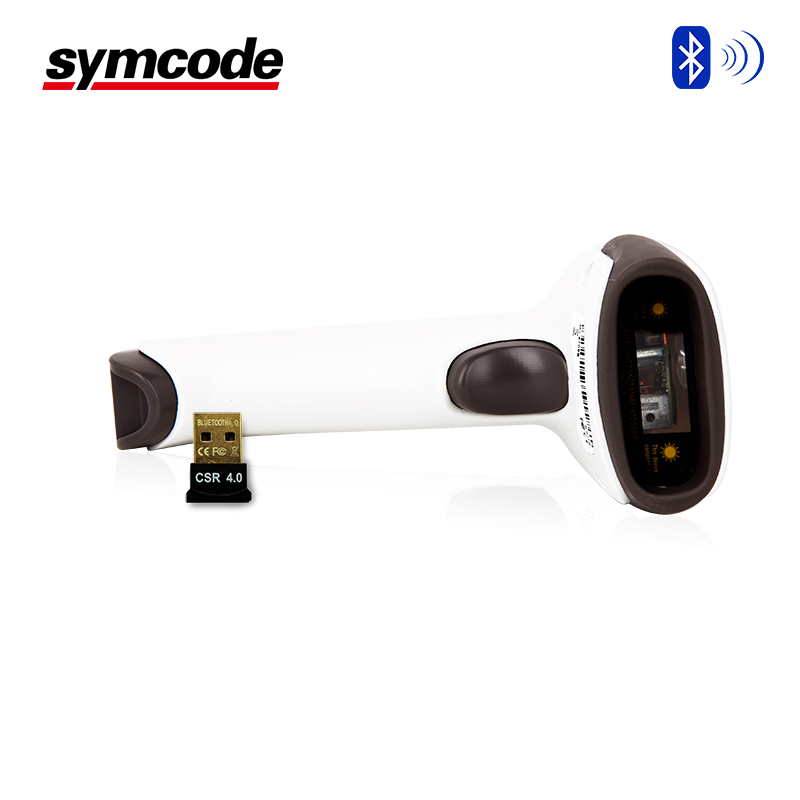

Good Quality wireless MJ-6706B 2D Programmable
Infrared scanner Barcode barcode
Specifications:
- Bluetooth: V4.0
- Scanning speed: 200 per second
- Scan mode: 2D
- Scan rate: 5 in/s
- Resolution: 4mil
Brief
MJ-6709B is industrial-grade bar code scanner. By enhancing the technology,with the best scanning light source Now MJ-6709B can read some bad-qualified ,damaged and dirty bar code .
It is characterized by stable performance and durability.With industrial housing protection,even in noisy and industrial environment, high volume buzzer can meet the requirement on confirming each scanning.
| Specification | |
| Mechanical | Length:57.8mm, Width: 42.3mm, Height:16.4mm |
| Weight | 40g |
| Electrical | Power: DC5V Typical: 75mA DC5V |
| CPU | 32bit ARM CPU |
| Data storage | 100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional). |
| Working mode | Bluetooth mode, USB mode, offline mode and RS232 mode(optional) |
| Artificial light immunity | 100,000 lux |
| Scanner performance | Sensor Type: CMOS Scanner Rate: 100 times Scanner Angle: ±50°,±65°,±35°(skew, pitch, Roll) Contrast: >20% Decode Speed: 100 times per second |
| Barcode Type | UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code 39, Code 39 full ASCII,Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5,Codabar (NW7), Code 128, Code 93, Code 11(USD-8), MSI/Plessey,UK/Plessey, UCC/EAN 128, China Post, GS1 DataBar (formerly RSS) variants |
| Decoding depth & Max. resolution | (1 mil = 0.0254 mm) 4 mil: 42- 75 mm 5 mil: 40-105 mm 10 mil: 10-250 mm 15 mil: 23-380 mm 20 mil: 35-490 mm 30 mil: 30-650 mm 55 mil: 75-900 mm |
| Communication | Class 3 Bluetooth HID, SPP with 20M distance, USB, RS232 cable(optional) |
| OS | IOS, Android, Windows, Mac |
| Laser safety | IEC60825-1-2007, Class 1 |
| Temperature | Operating: -10°C to 60°C (-4°F to 140°F); Storage: -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5% to 90% (non-condensing) |
| Type | 2D Bluetooth image barcode scanner |
| Resolution: | 752*480 |
| Precision: | ≥ 3 mil |
| Depth of scan field: | 40mm~300mm |
| Print contrast: | ≥ 30 % |
| Roll / Pitch / Yaw: | 360°, ±60°, ±60° |
| Ambient Light Immunity: | 0~100,000 LUX |
| Decode capability: | 1D:Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, China
post 25, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1
Databar, etc. 2D:PDF417 / QR code / Data Matrix / Aztec, Maxicode |
| Bluetooth module | Bluetooth module 4.0 |
| Communication distance | 20 meters(visual) |
| Battery | 3.7V 1000mA |
| Momery | 512KB |
| Drop Specifications: | 1.8m drops to concrete |
| Dimensions: | L 19.4cm*W 7.0cm*H 8.9cm |
| Weight: | 200g |
|
