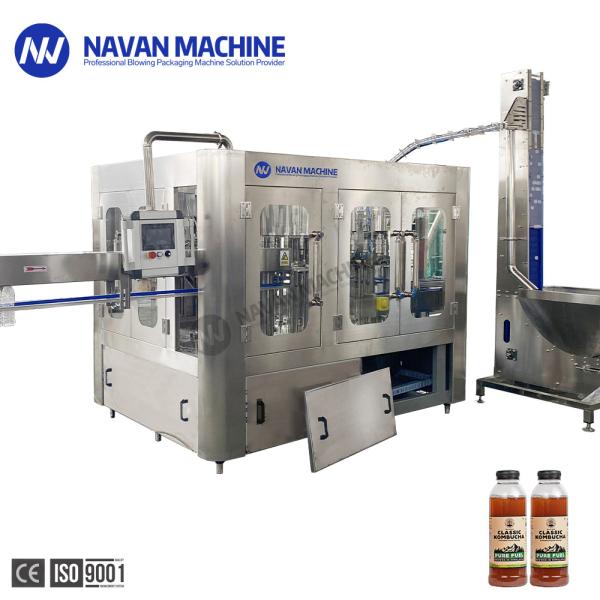

Automatic PET Bottled Kombucha Tea Washing Filling Capping Machine

Automatic PET Bottled Kombucha Tea Washing Filling Capping Machine

CGF three-in-one machine for PET bottle integrates the functions of rinsing, filling and capping together. Based on advanced technology overseas and designed according to the filling processing demands of tea , juice , non-carbonated drink etc.

Product Paramenters:

Working process:

Bottles are fed from air conveyor into three-in-one rinsing machine via star-wheel. Bottle clamp installed on the rotary wheel of the rinsing machine will grip bottle mouth and make 180º turn along a guide track to face the bottle mouth downward.

In designated section of the rinsing machine rinsing water will jet out from special nozzles to flush bottle inside wall. After rinsing and dripping, bottles gripped by bottle clamp will make another 180º turn along a guide track to resume bottle mouth facing up.

Cleaned bottles are moved out of the rinsing machine by star-wheel. After entering the fill area, bottles are retained by neck supporting carrier plates which are actuated by bottle carrier mechanism to raise them to engage with filling valves.

Filling is completed by micro negative pressure. The material filled into the bottle through filling valve. The bottle goes down and leaves valve to capping machine via neck handling star-wheel.

Anti-rotation blades on capping heads will seize the neck of bottle to prevent it from rotation and hold it in up-right. The twist-on capping head will make revolving and rotating movement along with the machine to finish the complete capping process of cap picking, placing, twisting and disengaging under the control of a cam.

Rinser Station:

• All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean
• 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
• 304 stainless steel washing pumps

Filler station

High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily,

All 304 stainless steel contact parts &

liquid tank, fine polish, easy to clean

No bottle no filling

Capper Station

• Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
• All 304stainless steel construction
• No bottle no capping

Electric Part & Safe Device & Automation:

• When accident system automatic stop & alarm
• Emergency switch when accident
• PLC , Touch-screen Control Panel & inverter
• Food Grade 304 stainless steel rinsing pump, reliable & sanitary

Machine Base & Machine Construction:

• 304 stainless steel frame
• Tempering Glass window, Clear & no odor
• Excellent start wheel design, easy change over parts
• Machine Base with anti-rust process, ensure the forever antirust
• All seal where liquid may Leakage & base neck come with rubber, water proof
• Manual lubrication system
