Dvb Modulator DVB-S2X encoder modulator
Product Overview
NDS3543D DVB-S/S2/S2X Encoder & Modulator is an integrated device with multifunction. Its pluggable design makes it convenient to change encoding module (SDI/HDMI/YPbPr/CVBS…) as needed. It is also equipped with 1ASI input for re-mux and modulation.
The signal source could be from CCTV cameras, Blue-ray players and etc. It adopts user-friendly web-based operation interface to effectively manage the device and carefully protect your content with its BISS function. Featured with its high performance and low cost, NDS3543D is especially adequate for the TV station or DSNG system to encode SD/HD programs and output to uplink.
Key Features
* HEVC/H.265, MPEG-4 AVC/H.264, MPEG2 SD/HD Encoding Module optional
* SDI/HDMI/YPbPr/ CVBS…in & 1*ASI in
* Multiple channel audio inputs optional
* Support DVB-S/S2/S2X RF output (950-2150MHz) and ASI output
* QPSK, 8PSK, 8APSK, 16APSK, 32APSK Constellations
* Support RF CID setting
* Support RF 24V power output
* Support Low latency
* Support BISS function
* Support 10MHz reference clock
* Support Web NMS and front panel LCD & Keyboard control
* Upgrade device through web NMS

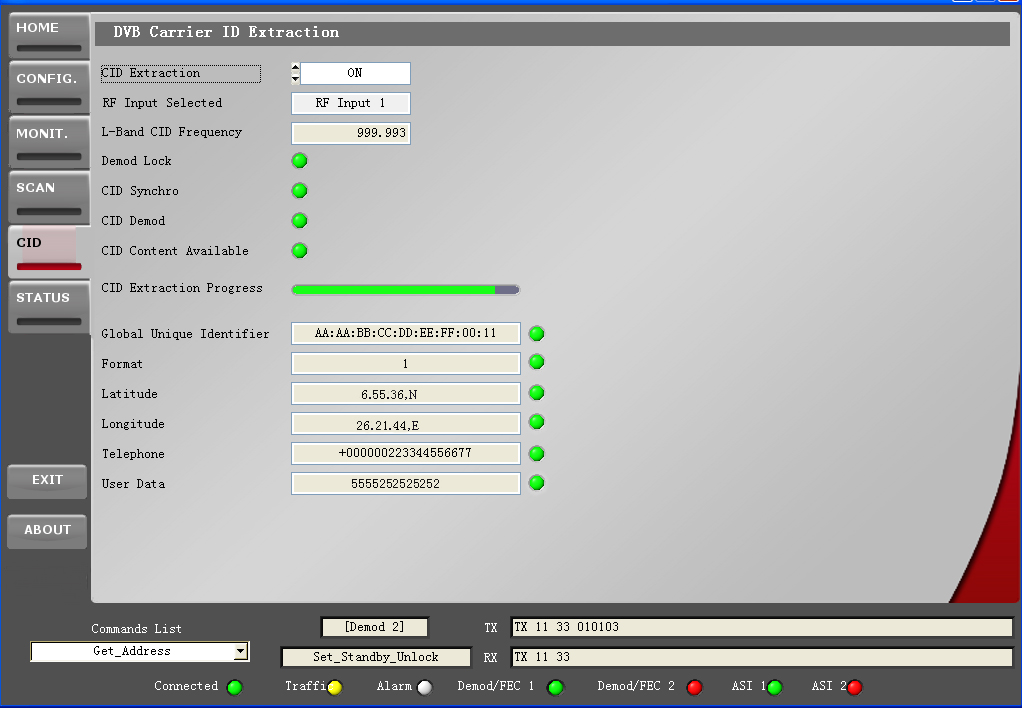

CID TEST SAMPLE ILLUSTRATION

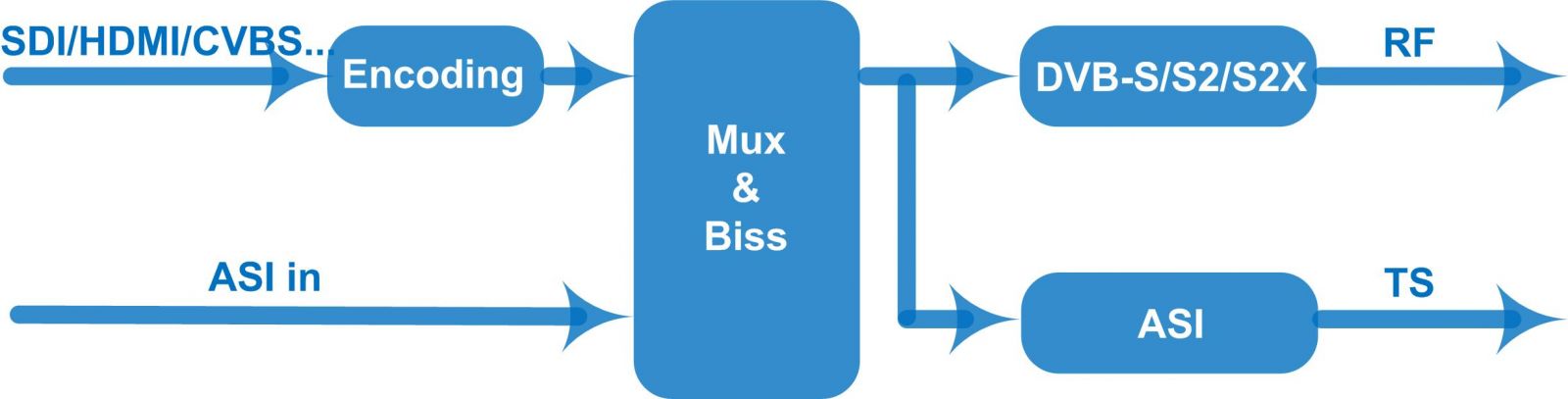

Principle Chart
Technical Specifications

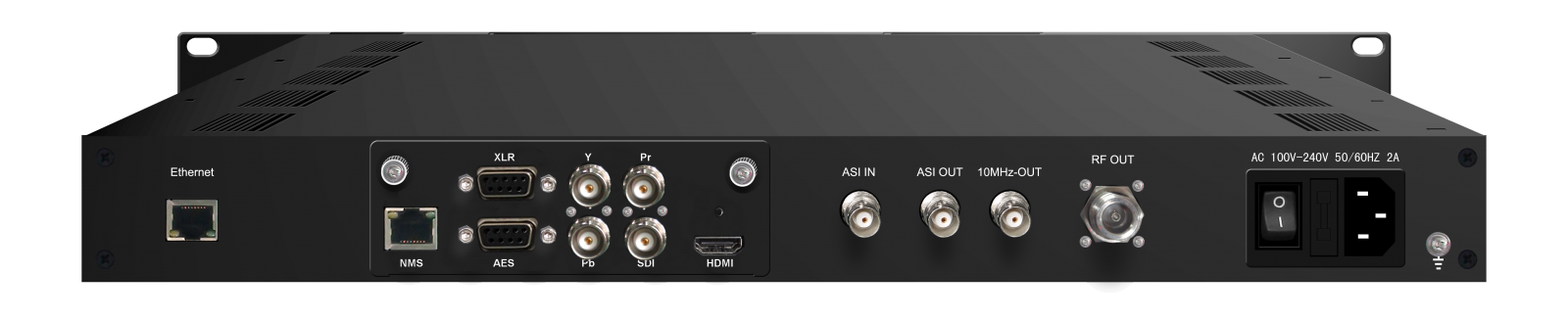

Single HDMI/SDI/YPbPr Input
*H.265/H.264 Video Encoding *Up to 4 stereo audio inputs *OSD Insertion
Video
| Encoding | HEVC/H.265; MPEG-4 AVC/H.264 | ||||
| Input | HDMI/SDI/YPbPr | ||||
| Resolution | Input | Output | Interface Applicable | ||
1920×1080_60P, 1920×1080_60i, 1920×1080_59.94P, 1920×1080_59.94i | . 1920×1080_60P | . HDMI SDI | |||
1920×1080_50P, 1920×1080_50i | 1920×1080_50P | ||||
1280×720_60P, 1280×720_59.94P, | 1280×720_60P | ||||
| 1280×720_50P | 1280×720_50P | ||||
1920×1080_60i, 1920×1080_50i, 1280×720_60P, 1280×720_50P | 1920×1080_60i, 1920×1080_50i, 1280×720_60P, 1280×720_50P | YPbPr | |||
Bit rate | 4Mbps~20Mbps (for MPEG-4 AVC/H.264) 0.5Mbps~20Mbps (HEVC/H.265) | ||||
| Chroma | 4:2:0 | ||||
| Rate Control | CBR/VBR | ||||
| GOP Structure | IBBP, IPPP | ||||
| Advanced Pretreatment | De-interlacing, Noise Reduction, Sharpening | ||||
Audio
| encoding | MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2, AC3 Passthrough |
| Input | Digital: HDMI/SDI/AES; Analog: XLR |
| Channel | AES/SDI: Up to 4 stereos HDMI: 1 stereo XLR: Up to 2 stereos |
| Sample rate | 48KHz |
| Bit rate | 48Kbps~384Kbps (MPEG-1 Layer 2 & LC-AAC) 24 Kbps~128 Kbps (HE-AAC) 18 Kbps~56 Kbps (HE-AAC V2) |
| Audio Gain | 0-255 |

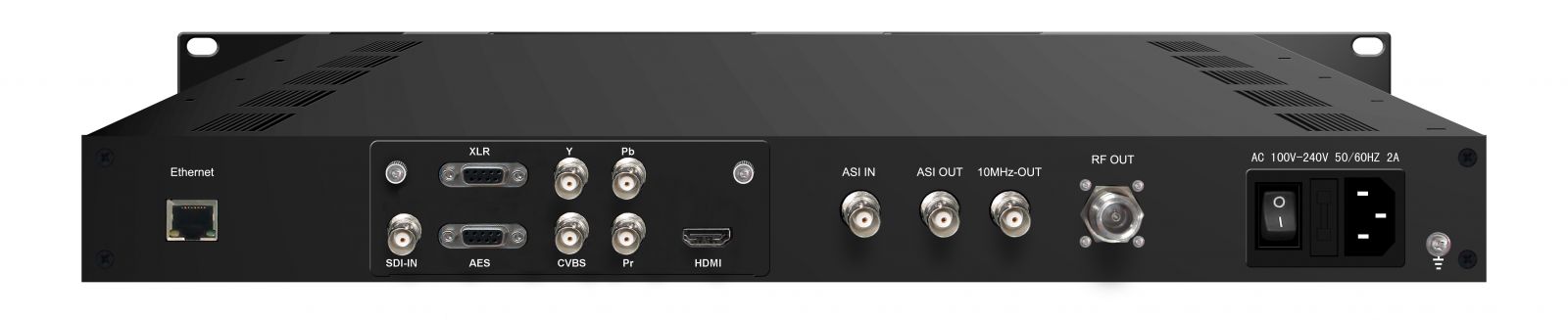

Single HDMI/SDI/YPbPr/CVBS Input
Video
| Encoding | MPEG-2 HD/SD or MPEG-4 AVC/H.264 HD/SD | ||
| Input | HDMI/SDI//YPbPr/CVBS/ | ||
Resolution | Input | Output | Interface Applicable |
| 1920×1080i@60 | 1920×1080, 1440×1080, 1280×1080i, 960×1080i | HDMI SDI YPbPr | |
| 1920×1080i@59.94 | |||
| 1920×1080i@50 | |||
| 1280×720p@60 | 1280×720, 960×720p, 640×720p | HDMI SDI YPbPr | |
| 1280×720p@59.94 | |||
| 1280×720p@50 | |||
| 720×576i@50 | 720×576, 704×576, 640×576, 544×576, 528×576, 480×576, 352×576 | SDI, CVBS | |
| 720×480i@59.94 | 720×480, 704×480, 640×480, 544×480, 528×480, 352×480 | SDI CVBS | |
| Bit rate | 0.52 – 60.00 Mbps | ||
| Rate Control | CBR | ||
| GOP Structure | Auto, IP, IPB, IPBB, IPBBB | ||
Aspect Ratio Chroma | 4:3, 14:9 (for SD video), 16:9 (for HD video) 4:2:0, 4:2:2 | ||
| Advanced Pretreatment | De-interlacing, noise reduction, sharpening | ||
Audio
| encoding | MPEG-1 Layer II, HE-AAC (v1&v2), LC-AAC, DD AC3 (2.0); DD AC3 passthrough (for SDI in) |
| Input | Digital: HDMI/SDI/AES; Analog: XLR |
| Channel | AES/SDI: Up to 4 stereos HDMI: 1 stereo XLR: Up to 2 stereos |
| Sample rate | 48KHz |
| Bit rate | 32Kbps~384Kbps |
| Low delay options | 150ms, 200ms, 350ms, 650ms |
Single SDI Input
Video
| Encoding | MPEG2; MPEG4 AVC/H.264 |
| Input | SDI*1 |
| Resolution | 1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only) 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P 720*480_60i, 720*576_50i |
Audio
| encoding | MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC |
| Sample rate | 48KHz |
| Bit rate | 64kbps, 96kbps, 128kbps, 192kbps, 256kbps, 320kbps |

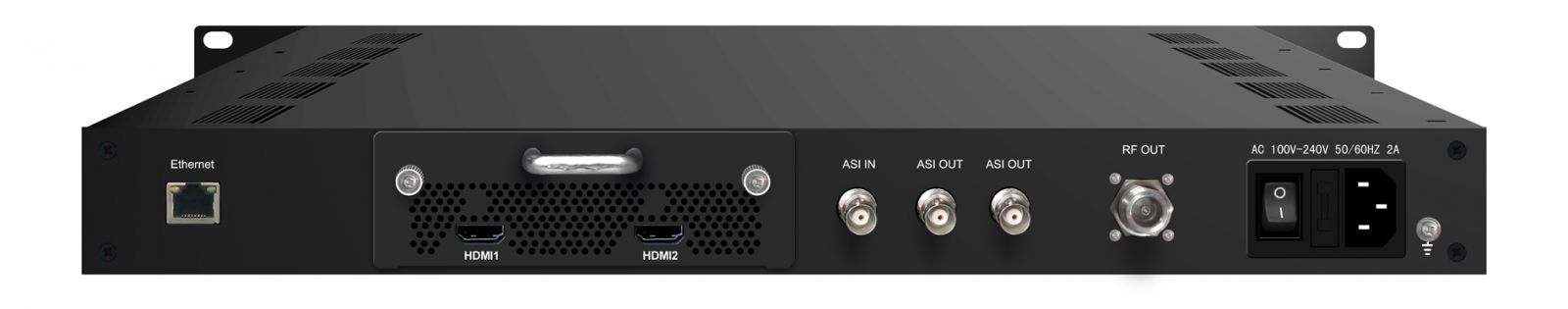

Single HDMI Input
Video
| Encoding | MPEG2; MPEG4 AVC/H.264 |
| Input | HDMI*1 |
| Resolution | 1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only) 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P 720*480_60i, 720*576_50i |
Audio
| encoding | MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC |
| Sample rate | 48KHz |
| Bit rate | 64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps |

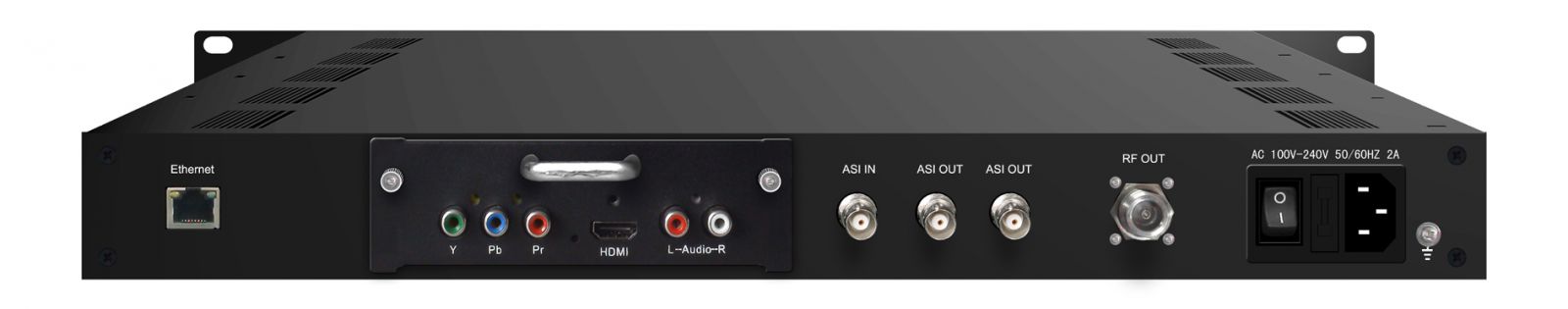

HDMI/YPbPr/CVBS 3-in-1 Input
| Video (HDMI) | |
| Encoding | MPEG2; MPEG4 AVC/H.264 |
| Interface | HDMI*1 |
| Resolution | 1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only) 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P |
| Audio (HDMI) | |
| Encoding | MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC |
| Interface | HDMI*1 |
| Sample rate | 48KHz |
| Bit rate | 64/96/128/ 192/256/320kbps |
| Video (YPbPr/CVBS) | |
| Encoding | MPEG2; MPEG4 AVC/H.264 |
| Interface | YPbPr*1/CVBS *1 |
| Resolution | CVBS: 720x576_50i (PAL); 720x480_60i (NTSC) YPbPr: 1920*1080_60i, 1920*1080_50i; 1280*720_60p, 1280*720_50P |
| Audio (L/R) | |
| Encoding | MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC |
| Interface | 1*Stereo/2*mono |
| Sample rate | 48KHz |
| Bit rate | 64/96/128/ 192/256/320kbps |

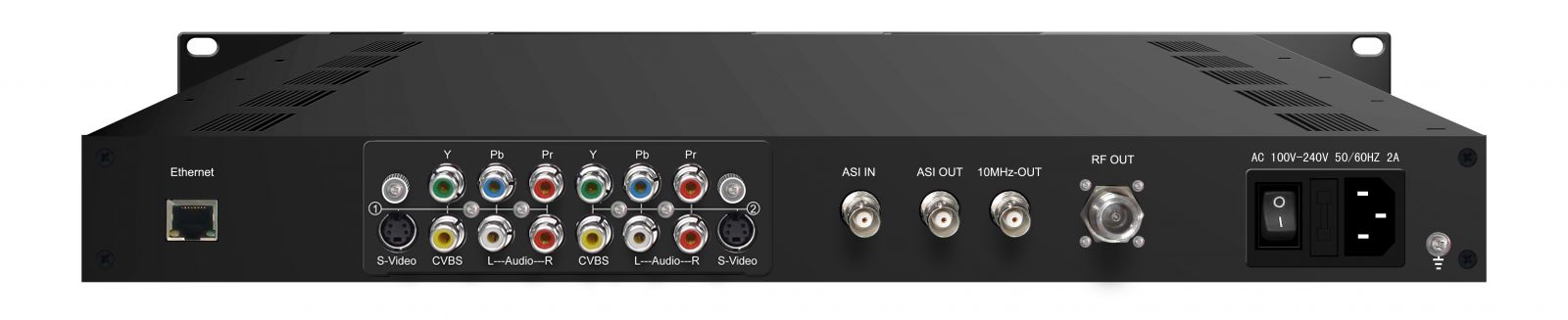

2*(S-Video + YPbPr + CVBS) Inputs
| Encoding | Option 1: MPEG-2 MP@ML(4:2:0) Option 2: MPEG-2 & MPEG-4 AVC/H.264 (4:2:0) |
| Input | 2*S-Video/YPbPr/CVBS (RCA Type) |
| Resolution | 720*576 (PAL); 720*480 (NTSC) |
| Bit rate | Option 1: 1~19.50 Mbps; Option 2: 1~10.00 Mbps |
Audio
| encoding | Option 1: MPEG1 Layer II Option 2: MPEG1 Layer II; LC-AAC; HE-AAC and Dolby Digital AC3 2.0( Optional) |
| Input | 2 Stereo/Mono |
| Sample rate | 48KHz |
| Bit rate | 64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps |
Generals
Input Interface | 2*CVBS; 1/2*SDI; 1*HDMI; 1*(HDMI/YPbPr/CVBS 3-in-1); 1*(HDMI/SDI/YPbPr 3-in-1); 1*(HDMI/SDI/YPbPr/CVBS 4-in-1) optional ASI intput | |||
| Output | DVB-S/S2/S2X RF output ; ASI output as mirror of RF | |||
Modulation Section | Standard | DVB-S | DVB-S2 | DVB-S2X |
| Outer coding | RS Coding | BCH Coding | BCH Coding | |
| Inner coding | Convolution | LDPC Coding | LDPC Coding | |
| Constellation | QPSK | QPSK,8PSK, 16APSK,32APSK | QPSK,8PSK, 8APSK, 16APSK, 32APSK | |
| FEC/ Convolution Rate | 1/2, 2/3, 3/4, 5/6, 7/8 | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 , 23/36, 25/36, 13/18 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 , 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10, 2/3-L, 32/45, 11/15, 7/9 | |
| Roll-off Factor | 0.2, 0.25, 0.35 | 0.2, 0.25, 0.35 | 0.05, 0.10, 0.15, 0.2, 0.25, 0.35 | |
| Symbol Rate | 0.5~45Msps | 0.5~40Msps (32APSK); 0.5~45Msps (QPSK/8PSK/16APSK) | 0.5~40Msps(32APSK); 0.5~45 Msps (QPSK/8PSK /8APSK/16APSK) | |
| RF Range | 950-2150MHz | |||
| Output level | +3dBm~-28.5dBm | |||
| BISS | Mode 1, Mode E | |||
| System | Local Control | LCD + control buttons | ||
| Remote Control | Web NMS | |||
| Low Latency Mode | Normal, Mode 1, Mode 2 | |||
| Language | English | |||
Physical Specification | Demission | 410×460×44mm (W*L*H) | ||
| Temperature | 0~45℃(operation), -20~80℃(storage) | |||
| Power Supply | AC 100-240V 50/60Hz 2A | |||
Order Guide
| NDS3543A | NDS3543C | NDS3543D | |
| DVB-S/S2 | ● | ● | ● |
| DVB-S2X | ● | ||
| RF Output(950-2150MHz) | ● | ● | |
| IF Output(50-200 MHz) | ● |
|
