1X16 Single Mode PLC Optical Splitter ABS Box 3mm Cable LC / APC Connectors

Categories PLC Optical Splitter
Brand Name: HILINK
Model Number: HL-PLC-116-LU
Certification: CE, FCC, RoHS
Place of Origin: China
MOQ: 1pc
Price: USD
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 10000pcs/month
Packaging Details: plastic tray, carton box
Product Name: 1X 16 PLC Optic Splitter
Package: ABS
Dimensions: 140x100x15 (mm)
Wavelength: 1260-1650nm
Fiber Mode: Single Mode
Fiber Type: G657A
Fiber OD: 3mm
Applications: FTTx Solutions, OADM, etc.
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

1X16 Single Mode PLC Optical Splitter ABS Box 3mm Cable LC / APC Connectors


1X16 Single Mode PLC Optical Splitter ABS Box 3mm Cable LC/APC Connectors


Product Description

Planar Lightwave Circuit Splitter (PLC Splitters) is a technology based on planar waveguide optical power distribution products,with low insertion loss and polarization dependent loss, small size, wide operating wavelength range, high channel uniformity and good characteristics. Especially for passive optical network (EPON, BPON, GPON, etc.) to connect the central office and terminal equipment and optical signal splitter to achieve. All products comply with Telcordia GR-1209-CORE, Telcordia GR-1221-CORE, YD / T 1117-2001 and RoHS standards.

1xN and technology can provide a full range of full specification 2xN products, and customized for all occasions in the optical splitter.

Parameters

1X2


1X41X81X 161X321X 641X128
Operating Wavelength (nm)1260~1650

Fiber Type

G657A1

or customer specified

Insertion Loss (dB) (P/SGrade )3.8/4.07.1/7.310.2/10.513.5/13.716.5/16.920.5/21.023.8/24.2
Loss Uniformity (dB)0.40.60.81.21.52.02.5
Polarization Dependent Loss(dB)0.20.20.20.250.30.350.4
Return Loss (dB) ( P/S Grade)55/5055/5055/5055/5055/5055/5055/50
Directivity (dB)55555555555555
Wavelength Dependent Loss(dB)0.30.30.30.50.50.50.5
Temperature Stability (-40~85 C)(dB)0.40.40.40.50.50.50.5
Operating Temperature (°C)-40~85
Storage Temperature (C)-40~85
Device Dimension (mm)40x4x440x4x440x4x450x4x450x7x460x12x4N/A
Module Dimension (mm)100x80x10100x80x10100x80x10120x80x18140x115x18140x115x18140x115x18
Mini-Module Dimension (mm)50x7x450x7x450x7x460x12x480x20x6100x40x6N/A

Features

* Ultra-end insertion loss and associated loss of polarization

* Good spectral uniformity
* Wide wavelength bandwidth
* A wide range of working environment
* High reliability
* Small Size

Applications


* FTTx

* Passive Optical Network (PON)
* Cable TV Network (CATV)
* Other optical signal splitter system

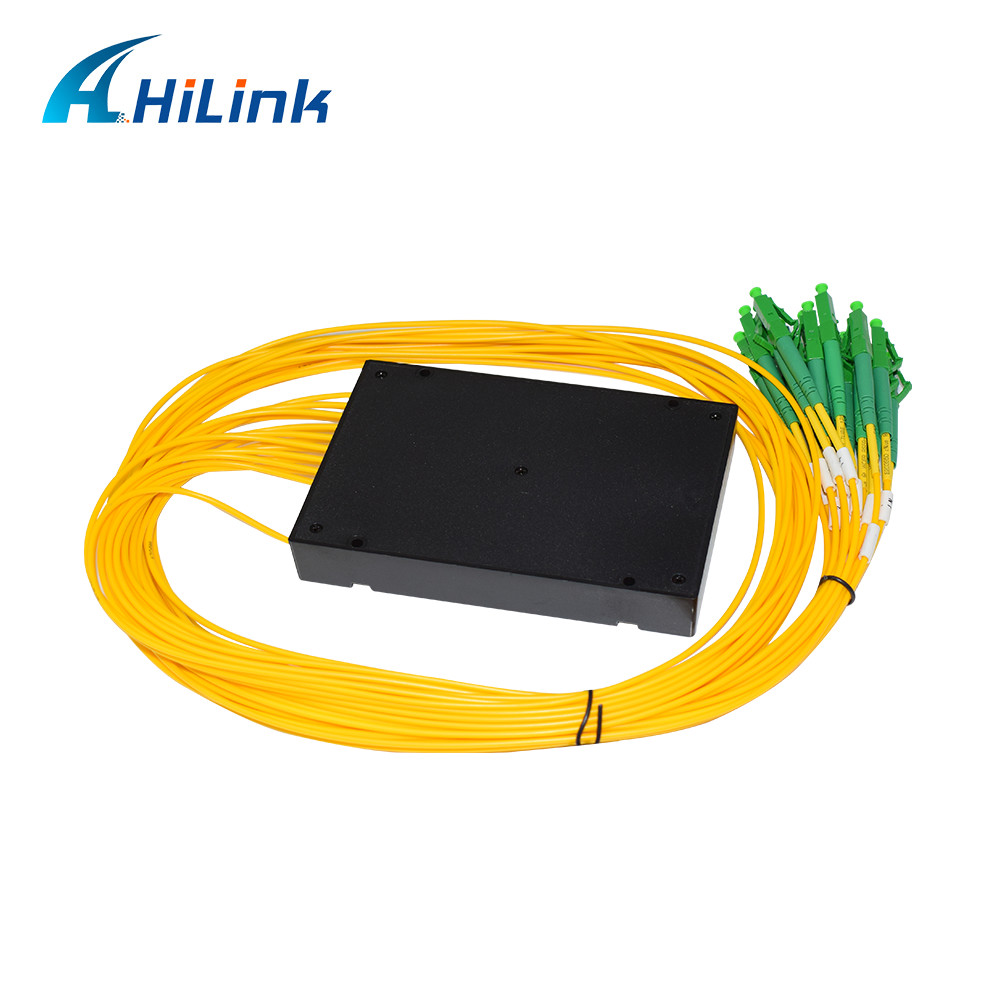

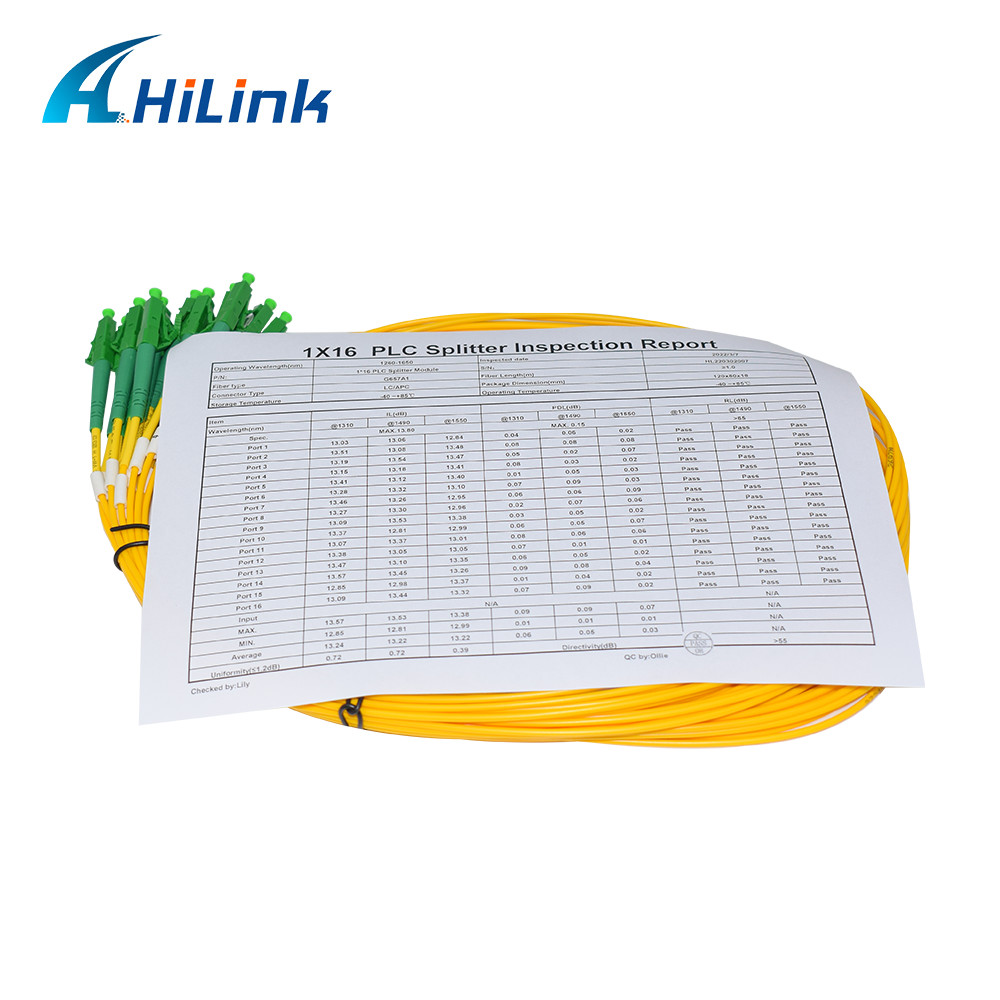

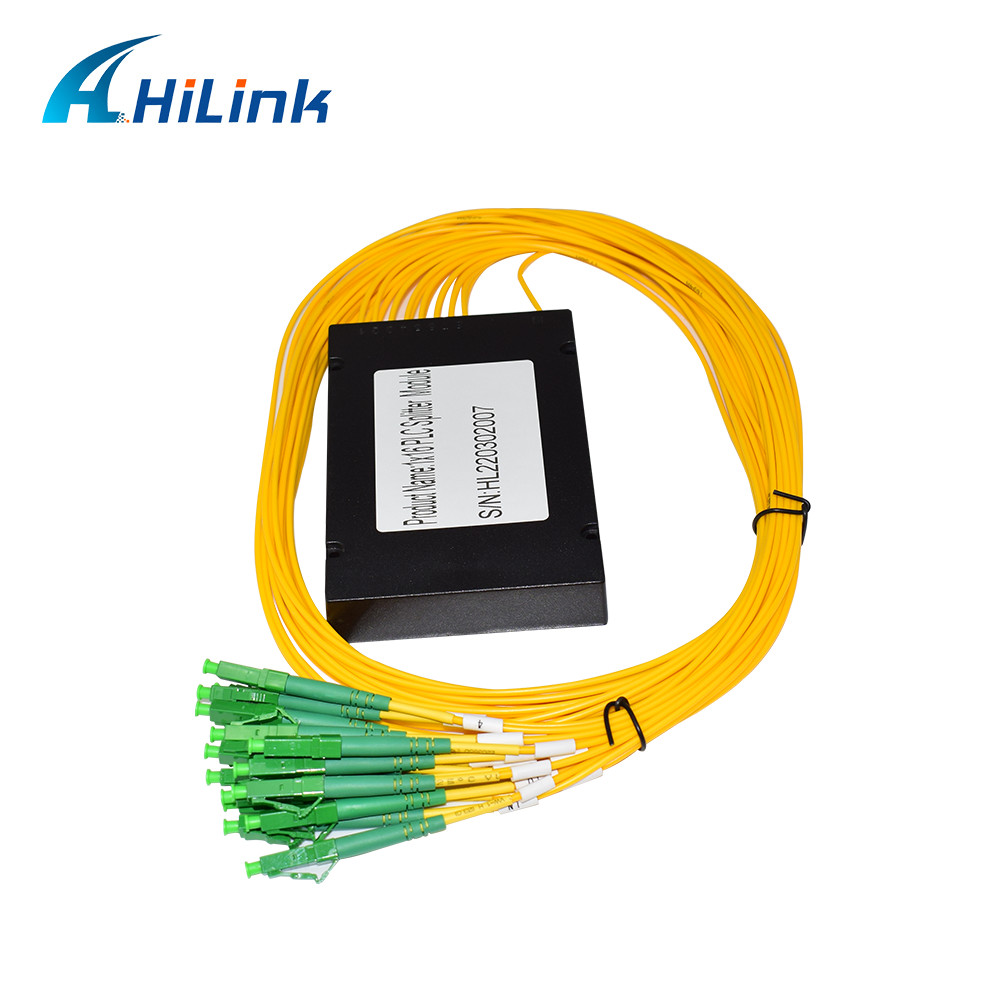

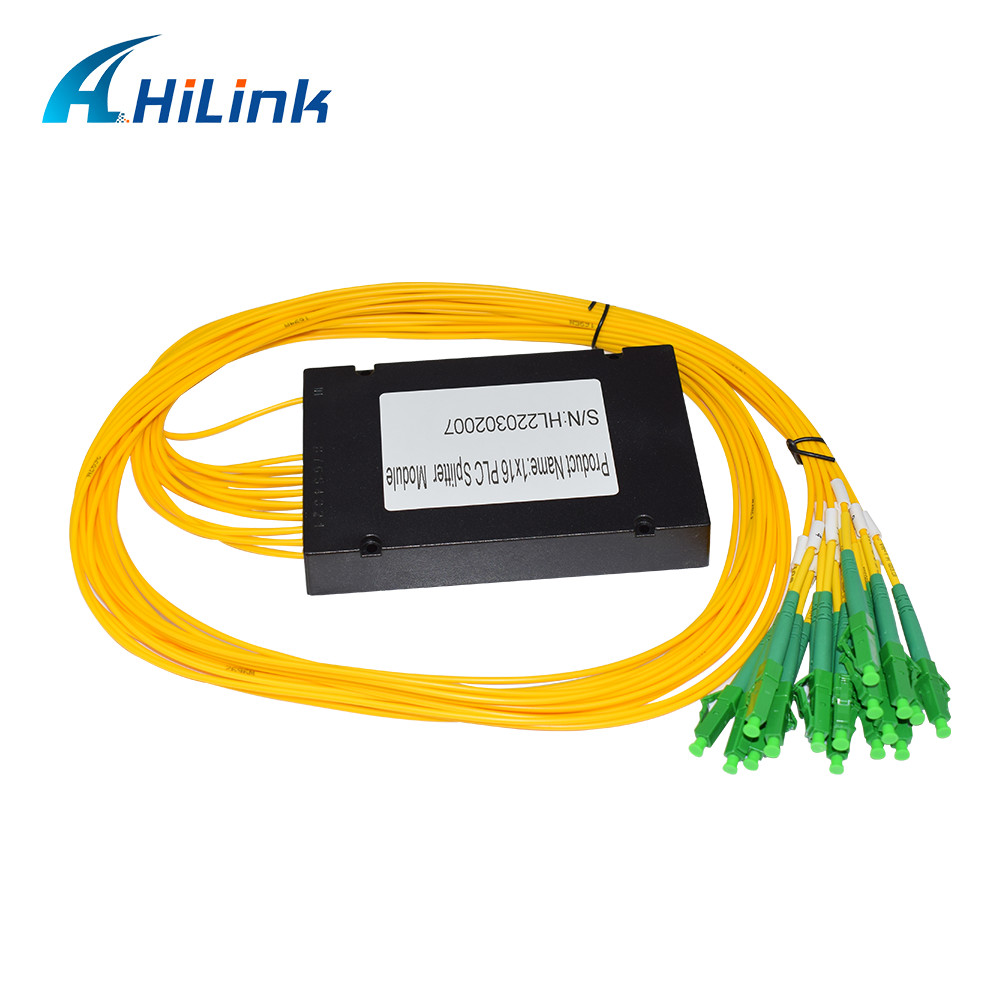

Details Images



FAQ

1. Can I have a sample order? What is your MOQ?

Sample order is supported for testing the quality of goods. 1 piece is the MOQ.

Mixed samples are acceptable.


2. What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock; For large quantity, you'll get support and details from your sales representative of HilinkTech.

3. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .

4. What is your payment term?

T/T, Western Union or Paypal.

5. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.

6. Could I use our own logo and label?

OEM service is provided.
