8"800*480 At080tn64 At080tn62 50 Pin Lcd Tft Display Driver Board Gps Navigator

8'' 800x480 50 Pin Gps Navigator Driving Tft Lcd Display Panel At080tn64 At080tn62 Innolux

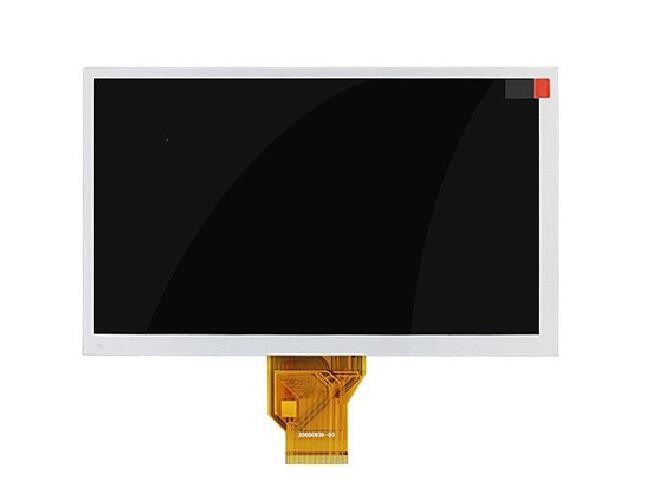

AT080TN64 is an 8.0-inch LCD module product with A-Si TFT-LCD technology by Innolux, equipped with WLED backlight, no backlight drive, no touch, upper / bottom, left / right flip display, 6 / 8-bit gray scale optional, display resolution of 800 (RGB)×480 (WVGA), 16:9 (width: high), and pixels with RGB vertical bar arrangement. Its display area size is 176.64×99.36 (width×height) mm, visual size 180.1×103.4 (wide×height) mm, appearance size 192.8×116.9 (width×height)×6.7 (thick) mm, surface treatment is fog surface, product net weight 245g (Typ.). The AT080TN64 has a Parallel RGB (1 ch, 6 / 8-bit) signal interface, 50 pins in total, an FPC connection, and a drive screen voltage of 3.3/10.4/16.0/-7.0V (Typ.) (DVDD / AVDD / VGH / VGL). It operates at temperatures of-30-85 C and storage temperatures of-30 to 85 C.This product is used in vehicle display, electronic instruments, medical instruments, digital photo frame, portable DVD and other products.

8" Lcd display product details

​

8" tft lcd panel features

The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!

faq

1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.

2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.

3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.

4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.

5.Q:How about the warranty?
A: We supply one year warranty.

6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.

7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.

If you need product details, please contact RISING-SUN.
