5" TFT LCD Capacitive Touchscreen 640x480 VGA Monitor Zj050na-08c 4:3

Innolux 5" Zj050na-08c 4:3 640x480 Industrial Control Handheld Medical Instrumentation Lcd Screen

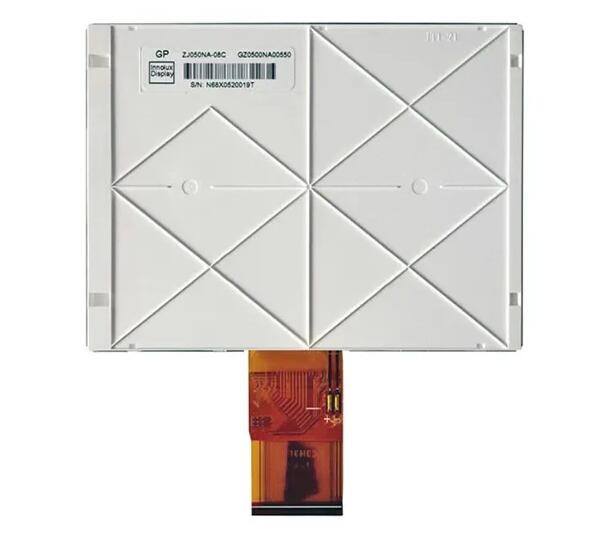

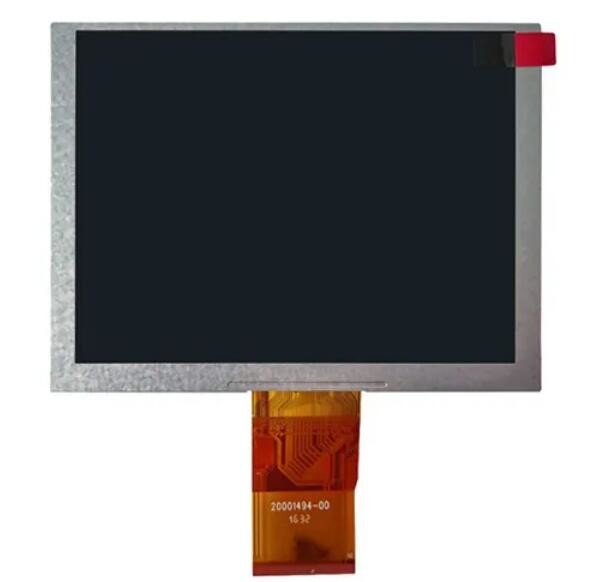

The ZJ050NA-08C is a 5.0-inch LCD module product using a-Si TFT-LCD technology. It is equipped with a WLED backlight, no backlight drive, and no touch. Up / down, left / right flip display, surface fog surface. It operates at temperatures of-20-70 C and has storage temperatures of-30-80 C. The ZJ050NA-08C displays a resolution of 640 (RGB) ×480 (VGA), an aspect ratio of 4:3 (width: height), and pixels in RGB vertical bars. Its display area size is 101.76×76.32 (width and height) mm, its appearance size is 117.65 (width)× 88.43 (height)× 5.9 (thick) mm, and its product net weight is 67.0g (Typ.). The ZJ050NA-08C has a Parallel RGB (1 ch, 8-bit) signal interface, a total of 50 pins, an FPC connection, and a drive voltage of 3.3/10.4/17.0/-7.0V (Typ.) (DVDD / AVDD / VGH / VGL).This model is suitable for electronic instrumentation, medical instruments,Handheld terminal,digital picture frames, video doorbell, video phone.

product details

Screen Size	5.0 inch
Screen Type	a-Si TFT-LCD , LCM
Resolution	640(RGB)×480, VGA, 159PPI
Pixel Format	RGB Vertical Stripe
Display Area	101.76(W)×76.32(H) mm
Outline Size	235(H)×145.8(V) ×6.4(D) mm
Brightness	250 (Typ.)(cd/m²)
Contrast Ratio	500:1 (Typ.) (TM)
Surface	Antiglare
Response Time	10/15 (Typ.)(Tr/Td)
Viewing Angle	70/70/50/70(Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Support Color	16.7M 50% NTSC
Lamp Type	WLED , 15K hours , Without Driver
Panel Weight	67g (Typ.)
Frame Rate	60Hz
Touch Panel	Without
Signal Interface	Parallel RGB (1 ch, 8-bit) , 50 pins FPC
Input Voltage	3.3/10.4/17.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

​

features

This model is suitable for electronic instrumentation, medical instruments,Handheld terminal,digital picture frames, video doorbell, video phone.

The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts and efforts have been made to reduce errors, but the parameters are not fully correct. Please refer to the specifications!










faq



1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.



2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.



3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.



4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.



5.Q:How about the warranty?
A: We supply one year warranty.



6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.



7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
