| Categories | Ultrasonic Vibrating Screen |
|---|---|
| Brand Name: | EVERSUN |
| Model Number: | YS |
| Certification: | ISO,CE |
| Place of Origin: | CHINA |
| MOQ: | 1 set |
| Price: | negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Delivery Time: | within 7-15 work days |
| Packaging Details: | Standard export wooden package |
| Name: | Ultrasonic Vibrating Sieving Machine |
| Type: | Circular |
| Application: | Superfine powders |
| Material: | Carbon steel, SUS304/316L, |
| Layer: | 1~5 |
| Clearing System: | Ultrasonic unit |
| Company Info. |
| EVERSUN Machinery (Henan) Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Product introduction

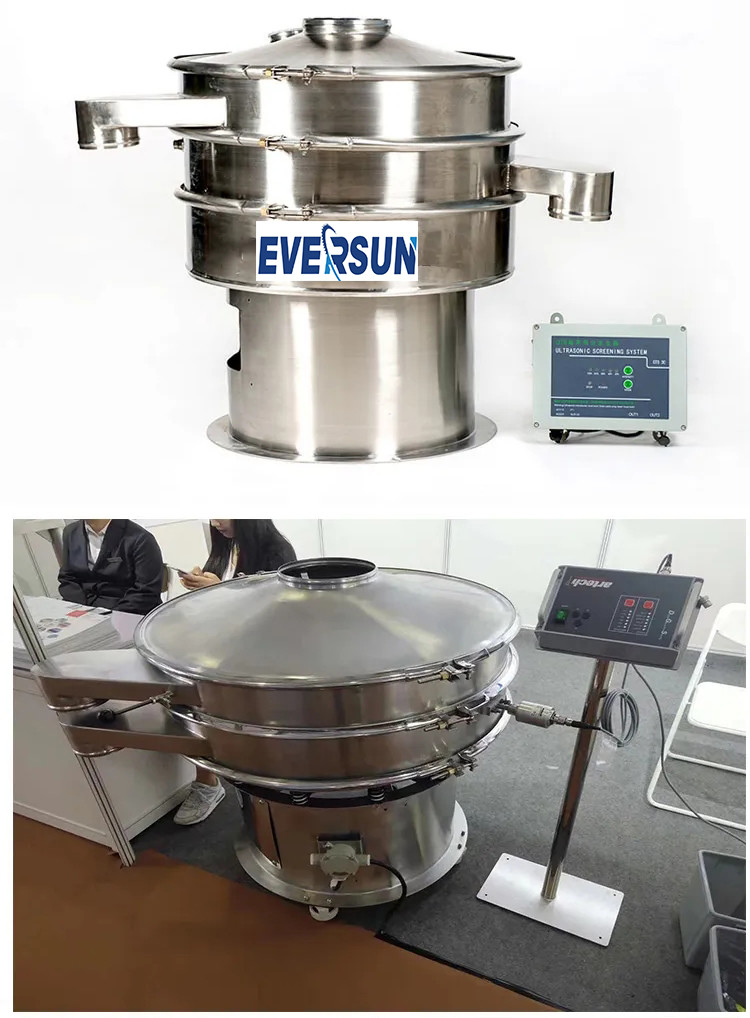

SUS/ Carbon steel Ultrasonic Vibrating Sieve Machine For fine Powder Siftering
Product parameter
Model | YS-600 | YS-800 | YS-1000 | YS-1200 | YS-1500 | YS-1800 | YS-2000 |
Diameter (mm) | Φ600 | Φ800 | Φ1000 | Φ1200 | Φ1500 | Φ1800 | Φ2000 |
Screen area (m) | 0.24 | 0.45 | 0.67 | 1.0 | 1.6 | 2.43 | 3.01 |
Screen size (Mesh number) | 2-500 | ||||||
Feed particle size (mm) | <Φ10 | <Φ15 | <Φ20 | <Φ30 | |||
Frequency of vibration (rpm) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
Effective screen area diameter (mm) | Φ560 | Φ760 | Φ930 | Φ1130 | Φ1430 | Φ1760 | Φ1960 |
Layer | 1-5 | ||||||
Power (Kw) | 0.25 | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3 |
Advantages
1. Compared to rotary vibrating screen, ultrasonic vibrating sieve screening accuracy is higher, such as screening 200 mesh graphite, the use of rotary vibrating sieve may feed 100kg screening for an hour rate of only 20kg, other fine powder on the frame is difficult to screen down. But the use of ultrasonic vibrating sieve also feed 100kg screening for an hour, the rate may be able to reach 50kg per hour. The precision of screening and the yield of fine powder can be greatly improved.
2. The same size of the ultrasonic vibrating screen its feeding amount can be greatly improved, mainly in the ultrasonic vibrating screen screening accuracy is high, can handle greater output.
3. In addition to the three dimensional vibration, the mesh surface produces superimposed ultrasonic vibration.
4. No mesh plugging, complete screen self-cleaning function, no screening efficiency attenuation.
5. Really solve static electricity, agglomeration, strong adsorption caused by difficult screening phenomenon, can achieve high mesh effective screening.
6. Ensure the properties of the materials handled are unchanged.
7. The accuracy of screening can be increased by 1~70% and the yield can be increased by 0. 5~10 times, the comparison of difficult screening materials is particularly significant.
8. Suitable for all kinds of powder, powder, particle screening, classification, impurity removal, sifting up to 625 mesh (18 microns)
Application
Ultrasonic vibrating sieve can screen 635 mesh of silicon carbide, tungsten alloy powder, vitamin powder, pollen, nickel powder, laundry powder, graphite powder, metal powder, sulfur powder, laundry powder, copper chloride powder, silicon powder, aluminum oxide powder, nylon powder, plastic powder, micromineral powder and other fine powder materials

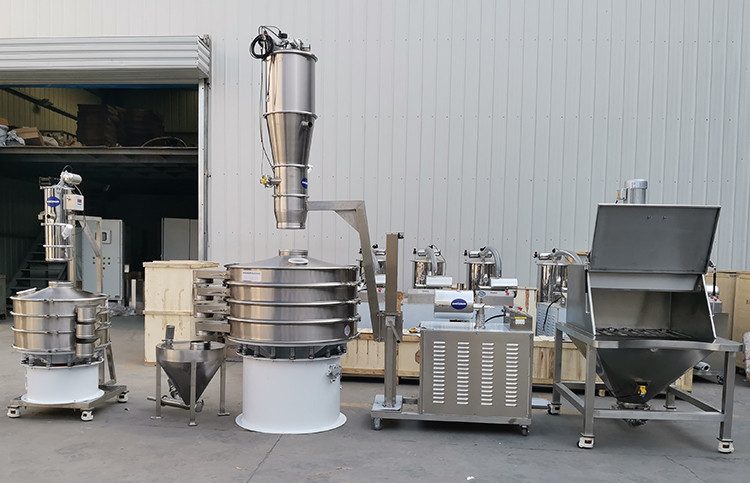

Most importantly, we can design the production line for you according to your application purpose, and provide corresponding supporting equipment.
|
