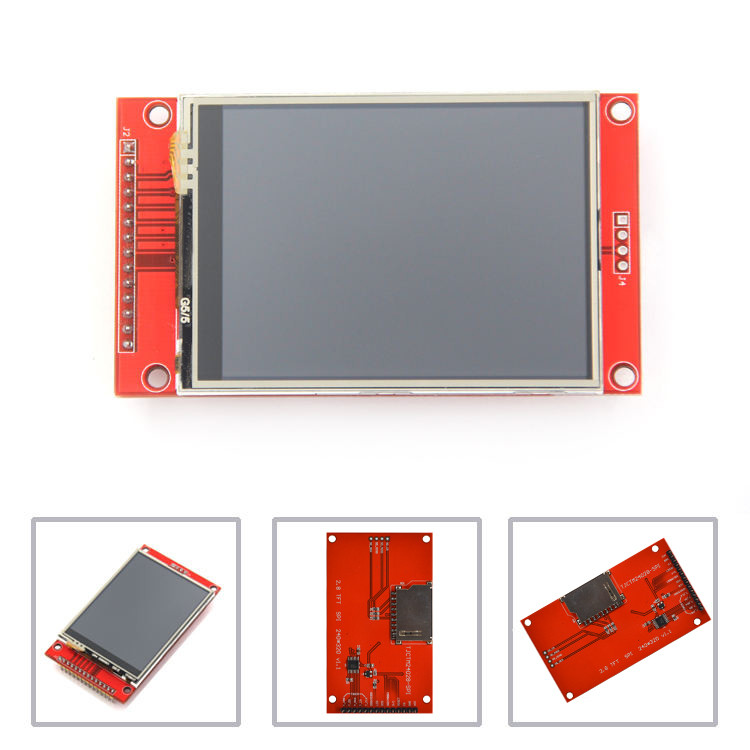

2.8 Lcd Module SPI Display Module 240*320 2.8 Inch Ili9341 Spi Tft Lcd Display

2.8 inch Resistance Touch 2.8" 240*320 ILI9341 Smart Display Screen SPI LCD TFT Module TFT display Factory Orginal

The LCD module uses a 4-wire SPI communication method with a driver IC of ILI9341 with a resolution of 240x320 and a touch function (optional). The module includes an LCD display, backlight control circuitry, and touch screen control circuitry.

●2.4-inch color screen,support 16-bit 65K color display,display rich colors

●240X320 resolution with optional touch function ·

●Using the SPI serial bus, it only takes a few IOs to illuminate the display

●Easy to expand the experiment with SD card slot ·

●Provide a rich sample program ·

●Military-grade process standards, long

●Provide underlying driver technical support

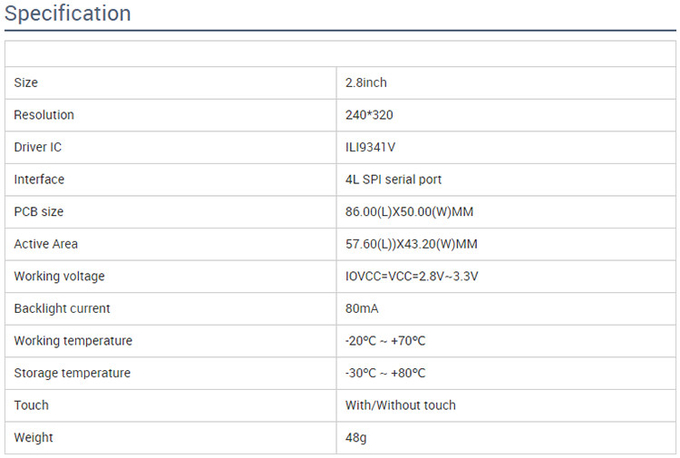

Product Parameters

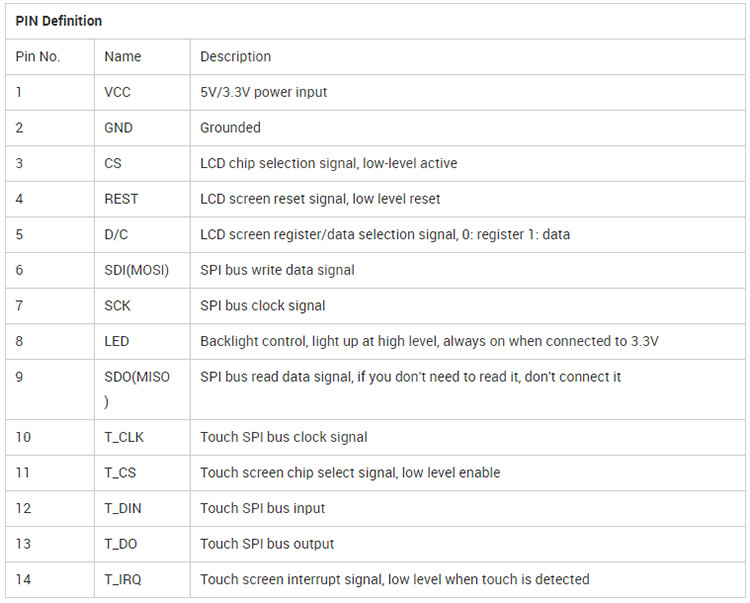

Interface Definition

Jingcai lntelligent is a high-speed growth technology enterprise integrating R&D, production and sales the company has always focused on the supply of "human-computer interactive display solutions" and"USART-HMl Display Module";, the product size covers 1.28"~21.5",the independently developed interface development software Guition , can help users quickly develop Ul interfaces and realize human-computer interactive functions.

Jingcai intelligent's serial port smart screen is widely used in different products in various industriessuch as 3D printers, air detection equipment, medical equipment, massage equipment, medical beauty equipment, financial equipment, audio equipment, commercial kitchens,smart homes,smart warehousing, automotive instruments,new energy vehicle charging piles, instruments, artificial intelligence,home appliances,industrial automation equipment, handheld equipment, security

Jingcai intelligent has a professional R&D team and service team, which not only meets the design and development of conventional products, but also provides customers with personalized customized services: customization in terms ofstructure, Ul, software, hardware, etc., in accordance with customers'actual needs!
