Wall-Mounted Face Recognition Biometric Device Office Access System

Categories Face Recognition Biometric Device
Brand Name: TS
Model Number: TS-RL03
Place of Origin: China
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 2000 sets per month
Delivery Time: 5-7 working days
Packaging Details: Plywood box
Minimum Order: 1 set
Price:: Negotiable
Packaging Details:: wooden carton
Delivery Time:: 5-7 working days
Payment Terms:: T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability:: 2000 sets per month
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Wall-Mounted Face Recognition Biometric Device Office Access System

Product Features:
Support 24000+ face comparison library and 160,000 recognition records
Rich interface protocols, support TCP / IP, UDP, RTP, RTSP, RTCP, Windows / Linux and other platforms
HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT protocols
Rich hardware interfaces (I / O, WG26, WG34, RJ45, USB, RS485)
8-inch IPS full-view high-definition display, no image smear and no delay
Auto gain, auto white balance, let the true color of the image naturally restore
8-inch temperature measuring face recognition all-in-one machine
Built-in black level sensor for video surveillance, low-light recognition is more accurate
3D noise reduction and fog-passing technology make the monitoring picture in low illumination more clear and delicate
Support code stream and I frame interval setting
Supports partial shielding in the video area
Automatic white balance, manual white balance
Support maximum exposure time setting
Support 2D noise reduction, 3D noise reduction
Support video plan time period and upload mode setting
Support video brightness, contrast, hue, saturation, gamma adjustment
Support to set the longest auto exposure time
Support smart face exposure, smart face enhancement settings


Specifications:

Recognize height1.2~2.2 meter, angle Adjustable
Recognition distance0.3~1.5 meter, Variable view lens
Recognition timeLess than 0.5 second
storage capacity160,000 snapshot records
Face capacity24000 faces
Screen brightness≥400cd/m2

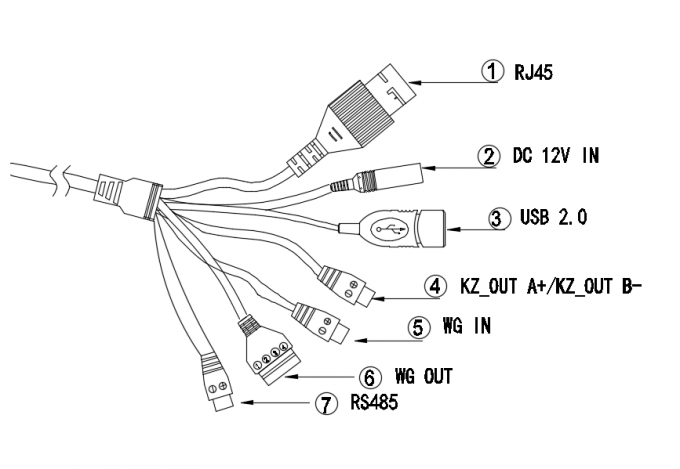

Interface
Switch output1 switch output, other GPIO ports can be customized
Network Interface1 RJ45 10M / 100M adaptive Ethernet port, customized Gigabit network port
Wiegand interface1 Wiegand interface input, 1 Wiegand interface output
USB interface1 USB interface as device
Communication Interface1 RS485 interface
Camera parameters
CameraBinocular camera, visible light and near infrared, support live detection
Effective Pixels2.1 million effective pixels, 1920*1080
Minimum illuminationColor 0.01Lux @ F1.2 (ICR); black and white 0.001Lux @ F1.2 (ICR)
Noise ratio≥50db(AGC OFF)
Wide dynamic120db,ISP algorithm partial face exposure
Video codingH.265 Main Profile encoding / H.264 BP / MP / HP encoding / MJPEG encoding

Image Resolution


main stream


50Hz: 25fps (1920×1080,1280×720)
60Hz: 30fps (1920×1080,1280×720)

Sub-stream


720 * 576, 1-25 (30) frames / second / 640 * 480, 1-25 (30) frames / second
320*240,1-25(30)frames/second

Product detailes:

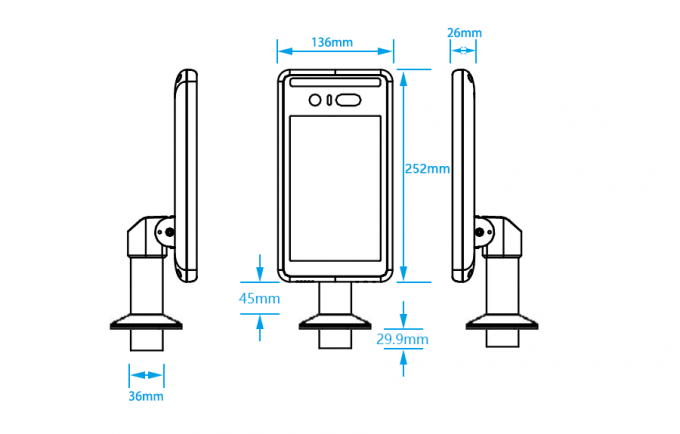

Facial Identification 20W Biometrics Access Control System 0

Facial Identification 20W Biometrics Access Control System 1

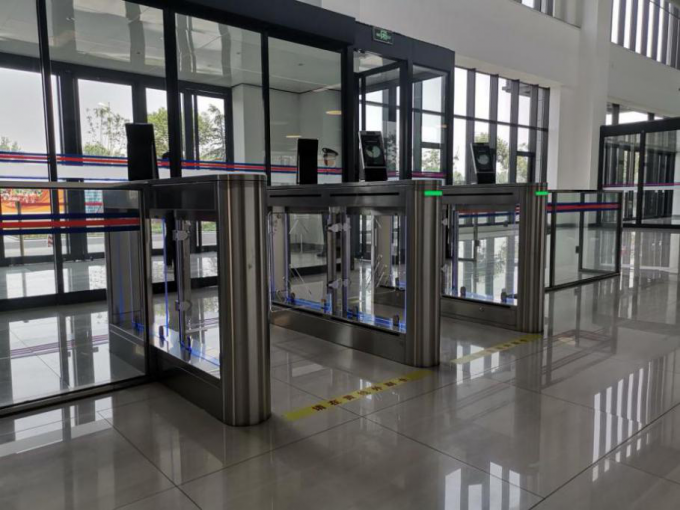

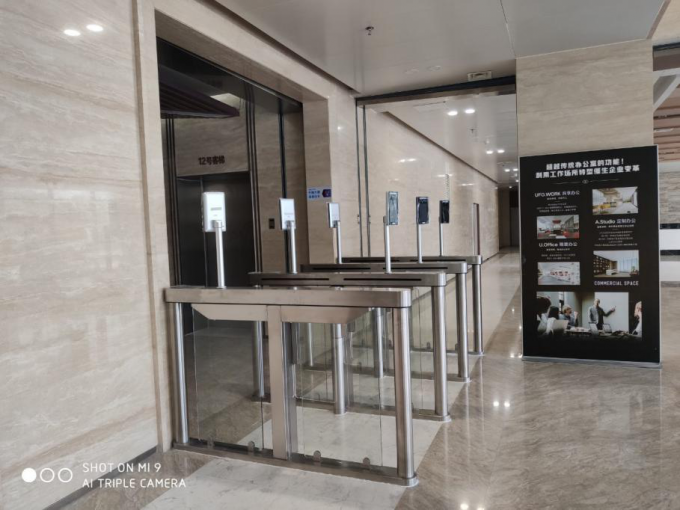

Application:

Facial Identification 20W Biometrics Access Control System 2Facial Identification 20W Biometrics Access Control System 3

Facial Identification 20W Biometrics Access Control System 4
