40kV Transmission Line Stringing Tools Digital Voltage Meter 50 – 60 Hz

Transmission Line Stringing Tools Digital Voltage Meter Operating Frequency 50 - 60 Hz

SPECIFICATIONS

Accuracy is affected in the field by the proximity of other conductive objects in the vicinity of this Meter.

Keeping the cord away from other objects will improve accuracy.

Accuracy is given as [% of reading] ± [number of least significant digits]

Performance Characteristics of Digital Phase Nucleator Phase Sequence Measurement: It can measure the phase sequence of transmission and distribution lines and transformers with electricity, including the voltage between phases and ground. There are two types of phase nucleus specifications: 0-20KV and 0-40KV 0-20KV with external resistance, the range can be expanded to 80KV 0-40KV with external resistance, and the range can be expanded to 240KV LCD display numbers, with a font height of 12.5mm and accurate data to 0.1KV in case of insufficient light, You can turn on the back lighting switch to ensure clear data display. Equipped with a 9V battery, if the battery level is low, the display screen will indicate a curled and retractable cable with a length of 0.4m, Fully expandable up to 3.04m6711: 0~40KV phase detector set (including 6702 host, 2 1.8m operating rods, tool bag, and portable case) 6713: 0~20KV phase detector set (including 6706 host, two 1.8m operating rods, tool bag, and portable case) 6719: Phase detector self check device Note: Other length operating rods can be selected.

0-40KV Digital Volt Meter: two-stick voltmeter for measuring and phasing overhead distribution voltages up to 40KV and up to 240KV if used with resistors. Digital voltage phasing meter. Instrument for measuring overhead and underground voltages.

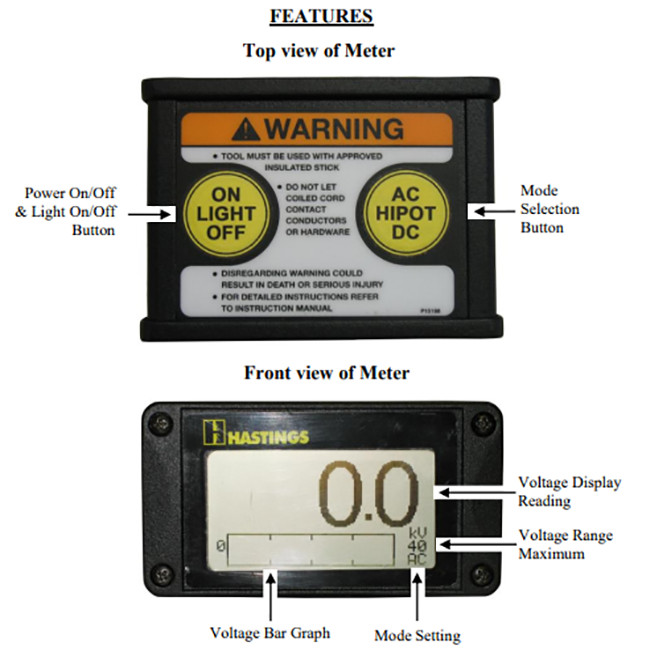

FEATURES

Auto self test and battery voltage level check during startup.

Large digital display with backlight on/off function.

Three modes of operation are available: AC, Hi-Pot (Hi-Pot Adapter must be installed to use in Hi-Pot mode, seepage 6), and DC.

Maximum value of voltage range is displayed.

Long battery life from three “AA” batteries.

High quality rugged extruded aluminum enclosure.

Established in 1993, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery, CE certified.

We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

    1. Main configurations of our machine are from Germany and USA

• Engine: American Cummins
• Main pump: German Rexroth
• Main motor& speed reducer: German Rexroth
• Tail bracket hoisting motor: American Eton
• Hydraulic meter: German

    2. Our company have more than 25 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.

    3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.

    4. We can supply the specific components to the buyers with cost price after warranty period.
