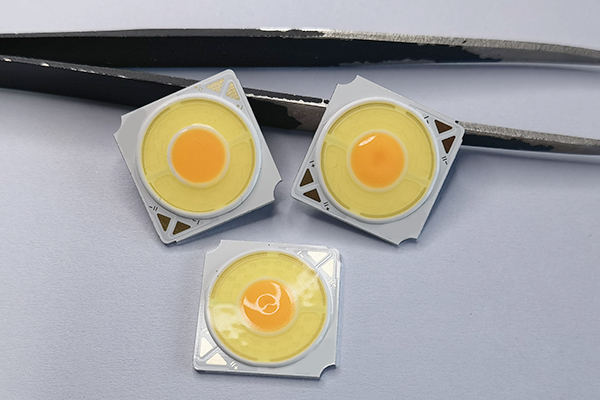

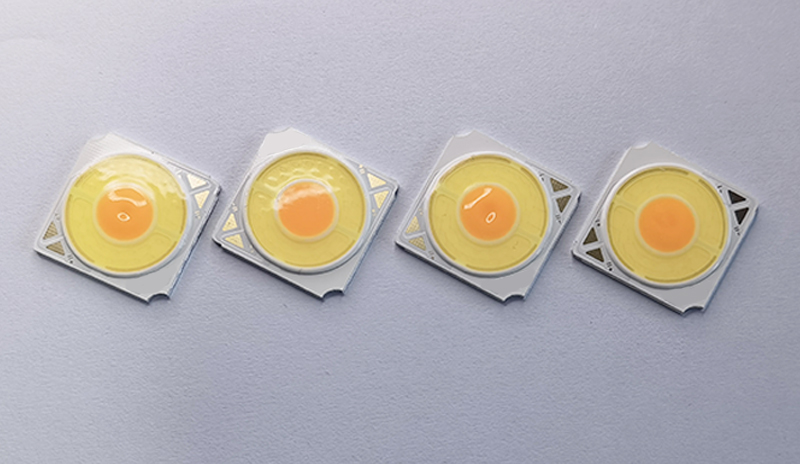

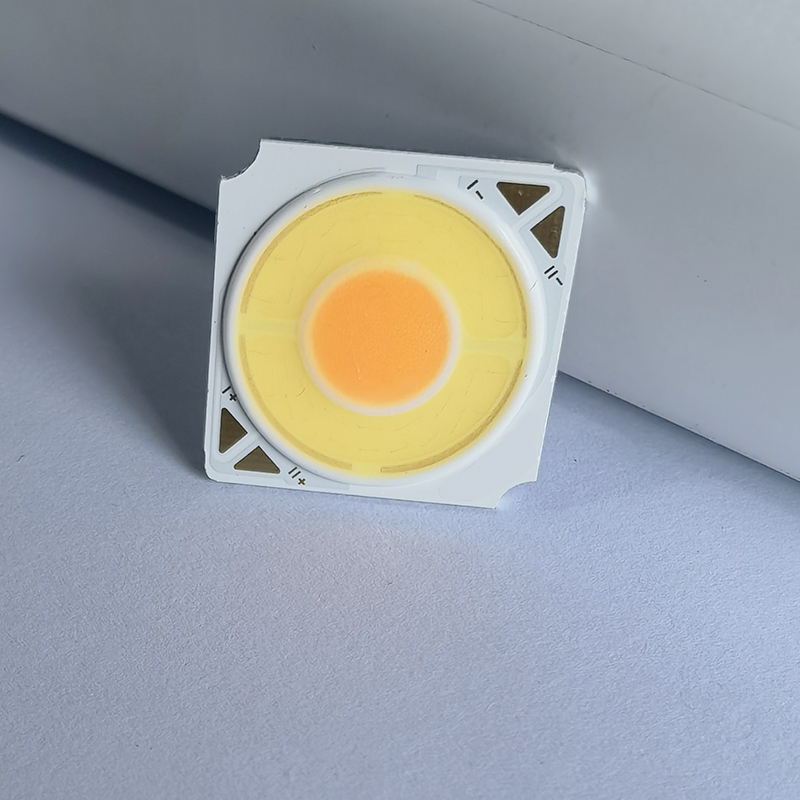

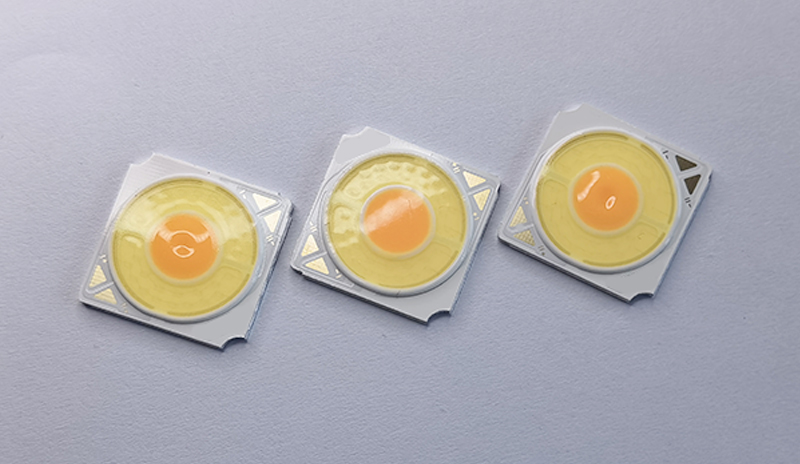

1919 Bi-Color COB LED Chip 8W+8W 300mA CCT 2000K-7000K With High CRI 90

1919 Bi-color COB Led Chip Introductions

COB LEDs are basically multiple LED chips packaged directly to a substrate by light to form a single LED module. The multiple chips take up less space and the highest potential of the LED chips can be obtained. When the COB LED package is energized, it appears more like a lighting panel.

With the advanced knowledge and packaging technology for years, COB LED has excellent reliability and high‑flux, multi‑die chips in a smaller, easy‑to‑use platform. With LED lighting‑class reliability, LED array’s small, uniform emitting surface enables both directional and non‑directional lighting with new levels of flux and efficacy. COB LED series covers a wide range of luminous flux from 3W to 300W. The element arrangement of LED package is capable of utilizing light more effectively and higher performance. Due to success of reducing the thermal resistance significantly,COB LED creates more options to match luminaire’s products design with perfect performance, cost effective, high lumen density, etc

* Dimension 19.0mm×19.0mm×1.5mm

* CRI: 90

* Wide viewing angle : 120°

* RoHS compliant

* Sulphation corrosion resistance

* Manual Soldering

* The White LED which was fabricated using a blue chip and phosphor

1919 Bi-color COB Led Chip Package Dimension

1919 Bi-color COB Led Chip Details

Electrical - Optical Characteristics at Ta=25℃

Absolute Maximum Ratings at Ta=25℃

Optica Characteristic curve

1919 Bi-color COB Led Chip Applications

Shenzhen Huanyu Dream Technology Co., Ltd., Ltd. is a high-tech enterprise and specializing in LED package.

Our products: SMD series - 2835, 3030, 3528, 5050, 5054, 5730, 7070 and other models;

High-power COB series- 1919, 2828, 3838, 4040, 6060 and other models. We are focusing on High μmol, High Color, High CRI, High Efficiency, High Power, High Brightness, etc. They are widely used in Plant Growth, Smart home, Commercial lighting,

Education Lighting, Outdoor Lighting, Film Lighting, Automotive Lighting, Lure fish Lighting, Stage Lighting, Photography Lighting and other fields. We well received the high praise from our customers, they are from China, South Korea, Iran, Czech Republic,Chile,

the United States, the United Kingdom, France, Russia, and Canada,and other countries.

US Wal-Mart is our long term cooperative partner and we have the completely Sales & Services network.

Our Dust-Free workshop is at thousand-level. We have the Automatic die-bonding machine, ASM Wire bonding machine, Automatic molding machine, Automatic sorting machine, Automatic taping machine, etc. , and Temperature Humidity Cycle test machine, Automatic Tensile testing machine, X-Ray and others inspection machine to assure our products quality.

Our company has the BSCI and ISO9001 Certification. Our parts have the CE, ETL,FCC,LM-80,ROHs and other certifications, also the Patents.Huanyu Dream is well-known for our high quality, good reputation and best service.

Our company is with humanistic management and full of professional engineers and experienced sales. With the strongest support from our vendors, we achieved resource sharing, complementary advantages and high efficient work;

Our purpose is: Customer First, High quality, Good Reputation and trustworthy cooperation. We are willing to cooperate with you and create the bright future together.
