RS-901Q 2-Row Lead LED Segment Display Leg Cutting Machine
Intro:
RS-901Q is a semi-automatic lead cutting machine for 2-row radial components, like LED Segment Displays, inductor,etc. Can be customized acccording to componnets and cutting requirements.
Machine can cut two-row leads at same time with double-cutter. Also the cut-length for each row leads can be adjustable seprately.
Suitable:
Machine is for 2-row components lead trimming. Lead cut length is adjustable.
Parameters:
| Model | RS-901Q LED Segment Display components Lead cutting machine |
| Efficiency | 40-80PCS/Min |
| Component width | 8-16mm. Can be customized for wider components. |
| Cut length | Can cut leads shortest to 2.8. Tolerance: +-0.3mm (The lead length is from the white edge height) |
| Function | Can cut single-row or two-row leads. Adjust both feet separately |
| Lead diameter | 0.4-0.8mm |
| Power supply | AC220V/110V 50/60HZ |
| Size | 450x450x480CM |
| Weight | 35KG |

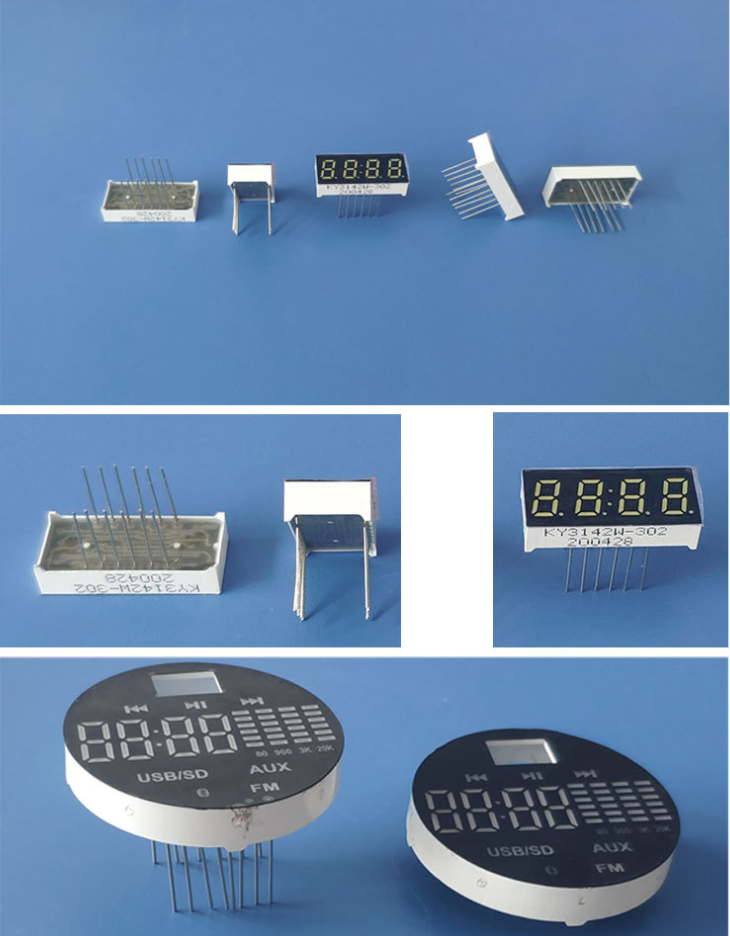

Cutting Samples

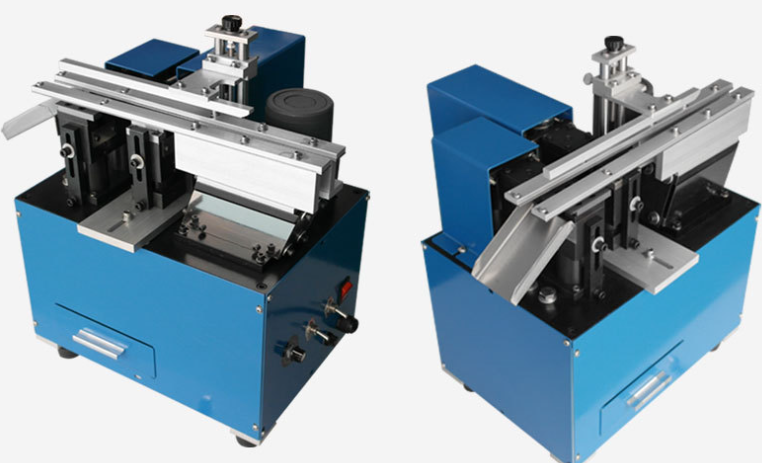

Machine picture
|
