10.1 Inch Capacitive Touch Screen Module 800*1280 Full HD TFT LCD Display

10.1 inch Capacitive Touch Screen Module 800*1280 Full HD Tft Lcd Display

Description of 10.1 inch tft lcd

Introducing the Full HD 10.1 inch lcd Module with TP, Model No. CH101WS05A-CTB, a high-quality display module that is perfect for elevators. The module boasts a resolution of 800*1280 pixels and features IPS/Transmissive/Normally Black display technology, providing clear and vibrant images from any angle with a viewing direction of 80/80/80/80.

The module has a module size of 2043095.53mm and a viewing area of 135.66(W)×216.88(H)mm, with an active area of 135.36(W)×216.576(H)mm. It can withstand a wide range of temperatures, with an operating temperature range of -20 ~ +70 ℃ and a storage temperature range of -30 ~ +80 ℃. With a life span of 30000 hours, this display module is built to last.

Specification of 10.1 inch lcd display

Quick detail of 10.1 inch lcd display module

Keywords: 10.1 inch lcd display module

Lcd Type: 10.1” TFT+CTP

Display Mode:Transmissive/Normally Black/IPS

Number of dots: 800*(RGB)*1280

Viewing Direction:80/80/80/80

CTP NOTE:

1.G+G

ITO Glass: 0.55mm

Lens Glass: 2.0mm

IC: GT911

2.Operation Voltage: 2.8V-3.3 V

3.Transmittance:≥80％

4.The cover hardness: 6H

Luminance: 300 cd/m2

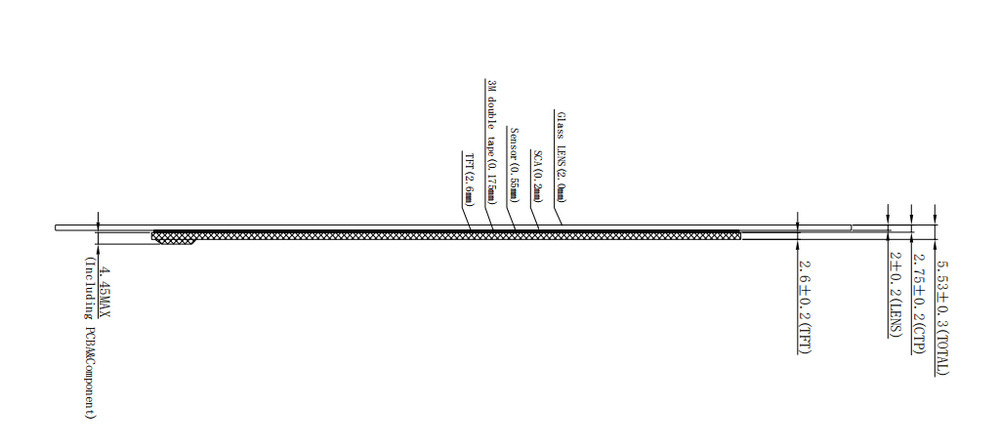

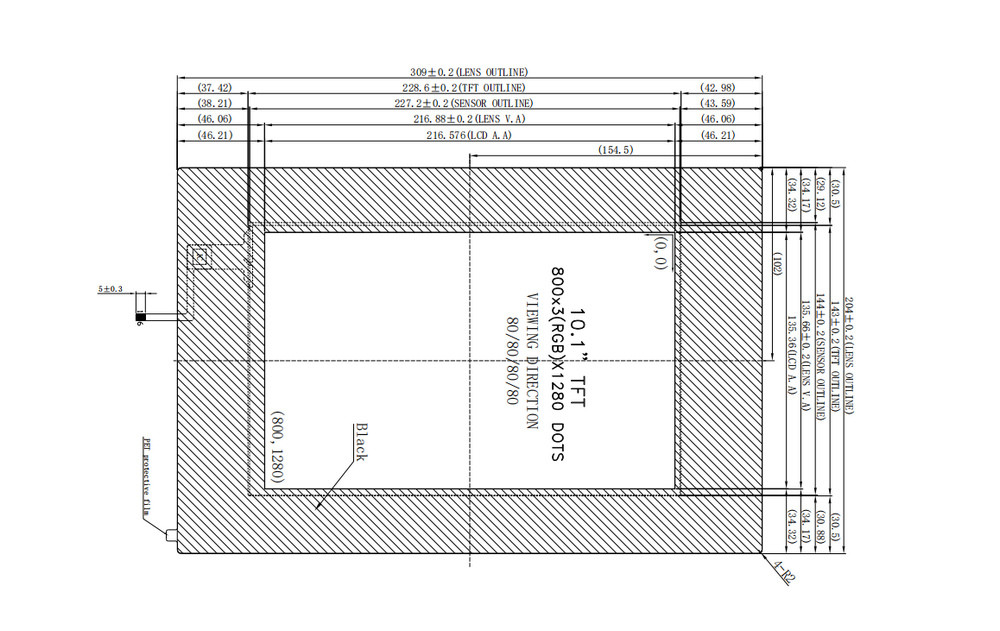

Lens Outline Size: 204*309*5.53 mm

TFT Outline Size: 143*228.6 mm

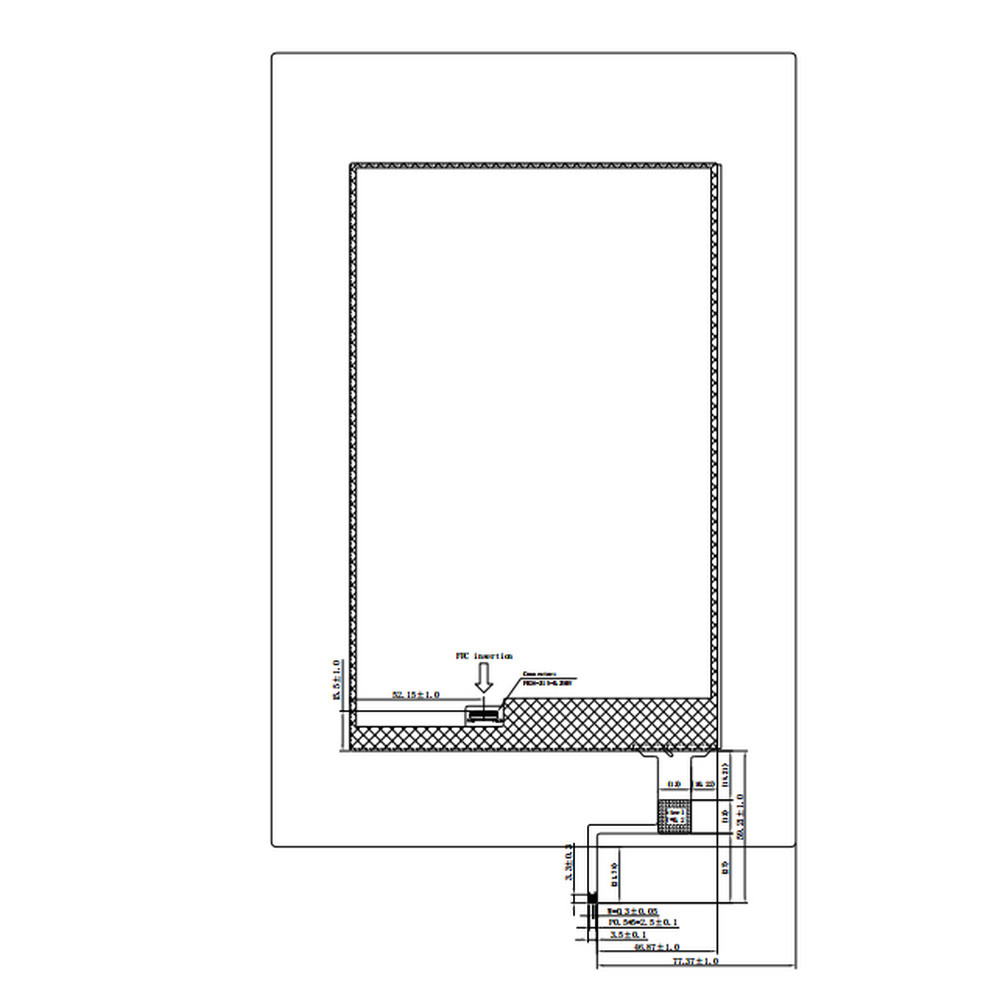

Sensor Outline Size: 144*227.2 mm

Viewing Area: 135.66*216.88 mm

About After-sales

This product is certified with RoHS, CE, and FCC, ensuring its compliance with international safety and quality standards. It is available for delivery in 7-15 working days and can be shipped to Shenzhen, China.

For payment, we accept T/T, a secure and reliable method of payment. In addition, we offer one-year warranty service and remote online technical support to ensure complete customer satisfaction.

We offer flexible packaging options to suit your needs, including tray + carton for small sizes and foam slot + carton for larger sizes. We can also customize the packaging to meet your specific requirements.
