| Categories | Cummins Diesel Generator Set |
|---|---|
| Brand Name: | Ai Power |
| Model Number: | A270 |
| Certification: | CE, ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 unit |
| Payment Terms: | L/C, T/T, |
| Supply Ability: | 200 units per month |
| Delivery Time: | 30 to 35 days |
| Packaging Details: | Foam & plastic |
| Rated Speed: | 1500rpm/1800rpm |
| Rated voltage: | 230V-480V |
| Alternator Brand: | Leroysomer, Meccalte, Stamford, Marathon |
| Options: | Silent canopy/trailer/ATS/Daily Fuel Tank |
| Rated current: | 800A |
| Phase: | Single/Three Phase |
| Control panel: | Smartgen, Deepsea, ComAp |
| Insulation Class: | H |

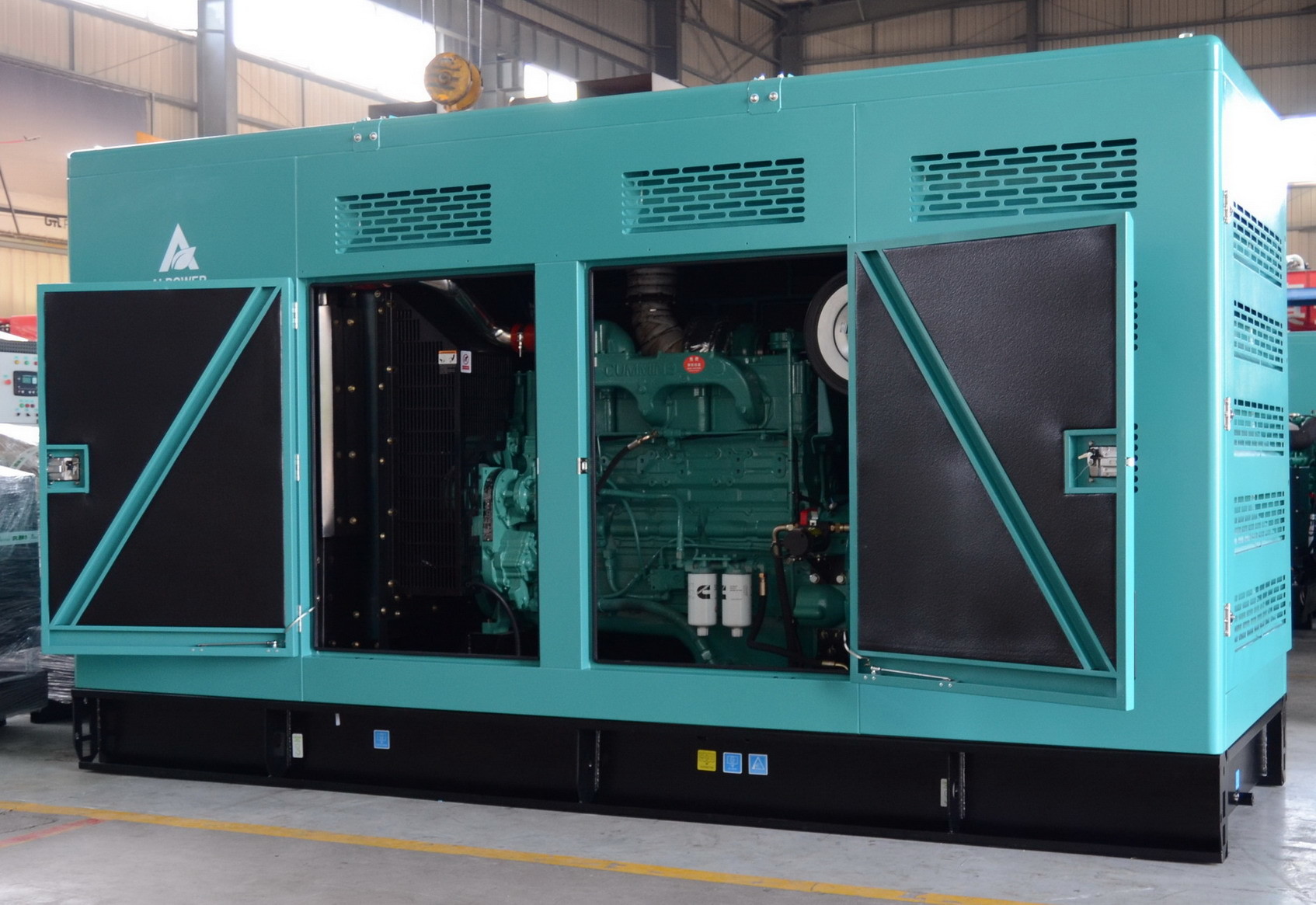

Ai power USA Cummins generator set adopts USA Cummins engine as the power source. it’s a global power leader who is devoted to the engine R&D and manufacturer since 1919 in Columbus, now it has become the largest engine manufacturer in the world providing more than 160 countries sales and aftersales service. Ai Power Cummins series generator has adopted Cummins engine include 4B, 6B, 6C, 6L, NTA, MTA, KTA series etc.
Cummins Engine Specifications:
| Engine manufacturer | Dongfeng Cummins Engine Co. Ltd | |||||
| Engine brand | Cummins | |||||
| Engine model | NTA855-G2A | |||||
| Engine speed (rpm) | 1500 | |||||
| Engine output(kWm) | ||||||
| Standby Power | 344 | |||||
| Prime Power | 313 | |||||
| Continuous Power | 250 | |||||
| No. of Cylinder | 6 | |||||
| Aspiration | Turbocharged and Charge Air Cooled | |||||
| Bore * Stroke (mm) | 140*152 | |||||
| Displacment (litre) | 14 | |||||
| Compression Ratio | 14:1 | |||||
| Engine Idle Speed (rpm) | 700-900 | |||||
| FUEL SYSTEM | ||||||
| Type Injection System | BYC P7100/GAC | |||||
| Fuel Consumption (litre/hour) | ||||||
| 100% prime power | 71.9 | |||||
| 75% prime power | 54.9 | |||||
| 50% prime power | 38.9 | |||||
| 25% prime power | 21.8 | |||||
| EXHAUST SYSTEM | ||||||
| Maximum Back Pressure (kPa) | 10.1 | |||||
| Exhaust Gas Temperature (standby/prime power) (°C) | 580/510 | |||||
| Exhaust Gas Flow(standby/prime power) (litre/sec.) | 547/480 | |||||
| AIR INDUCTION SYSTEM | ||||||
| Maximum Intake Air Restriction (kPa) | ||||||
| with Dirty Filter Element | 6.2 | |||||
| with Clean Filter Element | 3.7 | |||||
| Intake Air Flow (standby/prime power) (litre/sec.) | 191/183 | |||||
| LUBRICATION SYSTEM | ||||||
| Oil Pressure (kPa) | ||||||
| Idle Speed | 103 | |||||
| Governed Speed | 276 - 414 | |||||
| Maximum Oil Temperature (°C) | 121 | |||||
| Min. required Lube system capacity-sump plus filters (liter) | 23.8 | |||||
| COOLING SYSTEM | ||||||
| Coolant Capacity — Engine Only (liter) | 12.3 | |||||
| Standard Thermostat Modulating Range (°C) | 82-93 | |||||
| Maxi. Top Tank Temp. for Standby/Prime Power (°C) | 110/104 | |||||
| ELECTRICAL SYSTEM | ||||||
| Cranking Motor (Heavy Duty, Positive Engagement) (volt) | 12 | 24 | ||||
| Battery Charging System, Negative Ground (ampere) | 63 | 40 | ||||
| Minimum Recommended Battery Capacity | ||||||
| Cold Soak @ -18 to 0-C (0°F CCA) | TBD | TBD | ||||
Product Details
1.Control panel
2.High quality 3P Circuit breaker and terminal output
3.Strong hoisting structure
4.Durable stainless steel hinges
5.High performance exhaust silencer
6.Radiator coolant refill
7. 2MW, 3MW Diesel generator set
1.Assembled by UK diesel engine and high quality branded
alternator.
2.Radiator and fan with safety guard, or heat exchanger.
3.Heavy duty steel base frame with great capacity fuel tank for
options.
4.Vibration damping supports between engine/alternator and base
frame.
5.Heavy duty industrial type exhaust silencer with flexible bellow.
6.High capacity sealed lead acid battery with battery cable.
7.Intelligent control panel, Deepsea or Comap brand for options.
8. 50MW small power plant

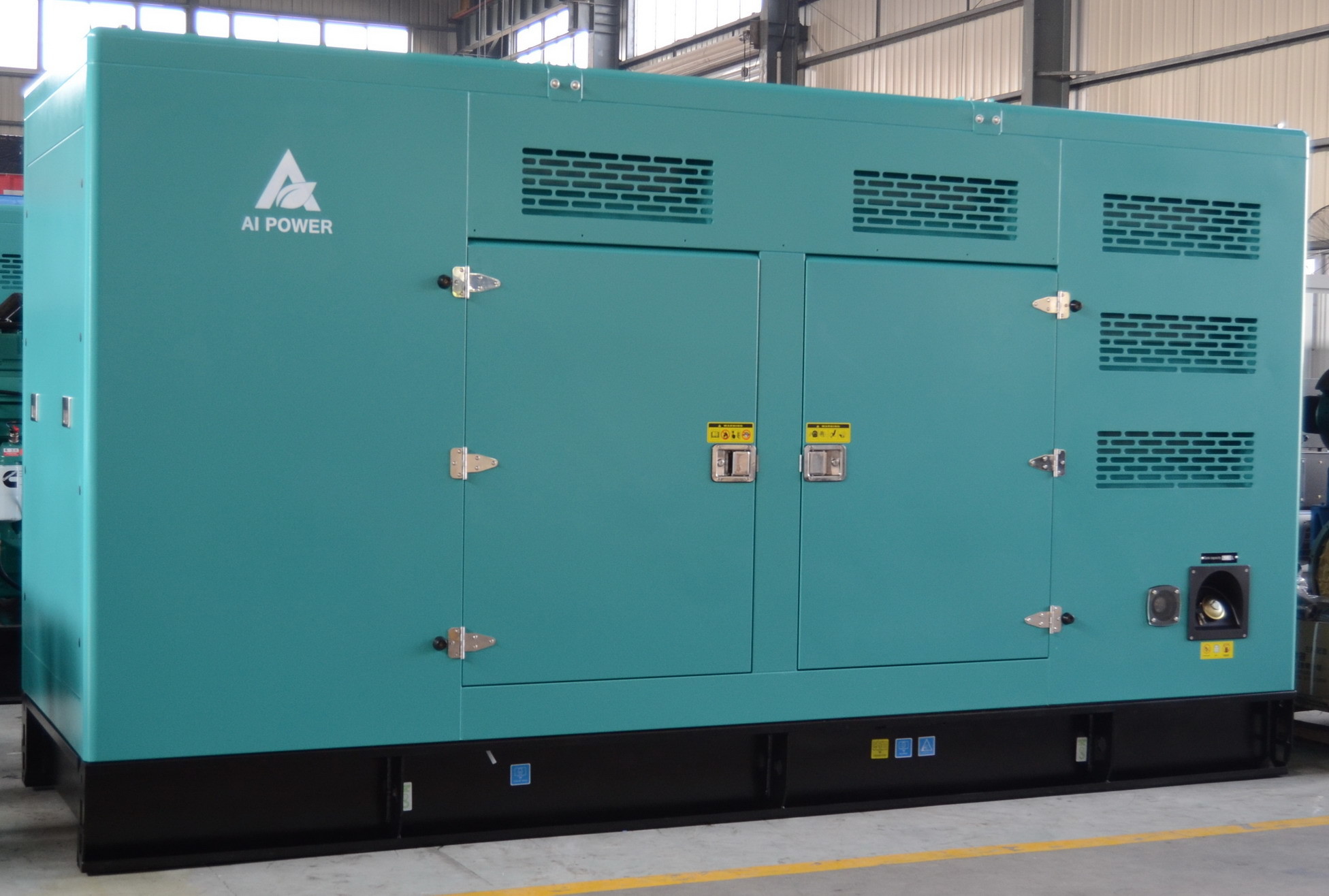

● More than 2mm thick steel to make the canopy.
● High quality paint materials and strict powder paint processing.
● large-scale impedance combined type silencer effectively reducing
noise of the generator.
● Stainless steel door locks and hinges and 180° revolvable and
disassemble door for easy maintenance.
● High quality soundproof and insulation materials could
efficiently reduce noise.
● Transparent viewing window make the control panel clear at a
glance.
● Lifting ear is mounted in the base frame for easy pull.
● Elegant appearance and reliable quality.
●From 10kva to 700kva we use normal silent canopy, more than 700kva
we are using containerized canopy.
A: It’s 1 year or 1000 running hours whichever comes first. But based on some special project, we can extend our warranty period.
A. Yes, we can accept OEM.
A: We can accept T/T 30% in advance and the balance 70% shall be paid before shipment or LC at sight.
|
