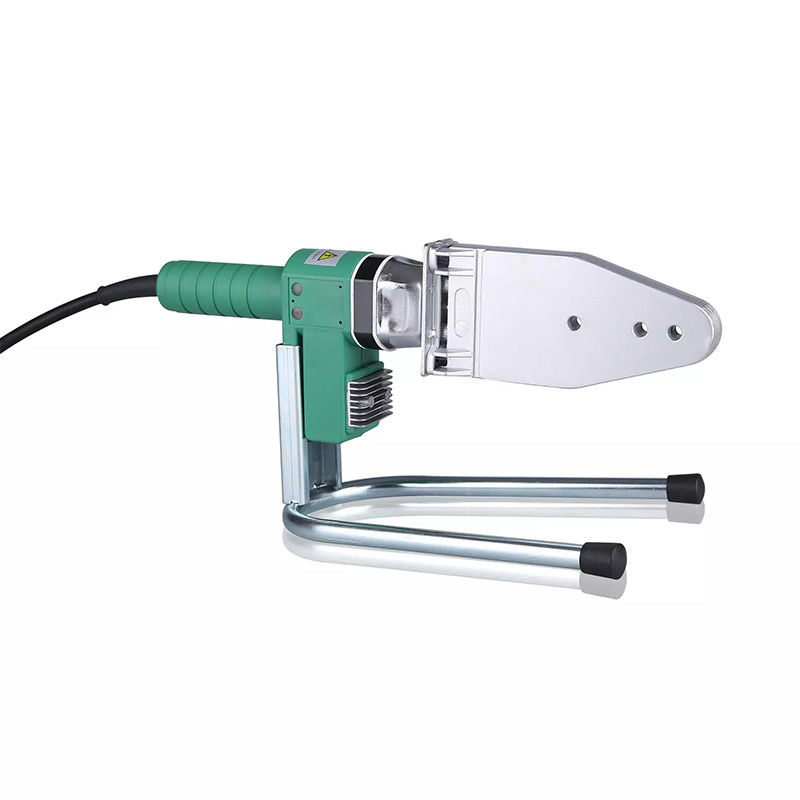

Heat Fusion Socket Welding Machine 20mm 63mm With DVS2208 Structure Design

ZRJQ-63 20 - 63mm Heat Fusion Welding Machine For Hdpe Pp Ppr Pipe

Socket Fusion Machine Introduction for Use:

1. Apply die head
Place the welding machine on the stander, chose die head according to pipe's diameter, and fix it on the machine. In regular, the small end is at the front, the bigger end at the back.
2. Power on
Power on (make sure the power should be with leakage current protector) , the green light and the red light on, wait till the red light off and keep greenlight on, which indicates the machine enter into auto temperature control mode and the machine can be used.
Note: during the auto temperature control mode, the red and the green light will be on and off alternatively, this indicates that the machine is under control and it will not affect operating.
3. Fusion pipes
Using cutter to cut pipe vertically, push the pipe and fitting into die head without any rotation. Take them off immediately when heating time reached (see the table below) and insert

Socket Fusion Machine Specification:

Socket Fusion Machine Application and Feature:

1. Suitable for socket welding pipes and fitting made of PE or PP,PB
2. Preprogrammed welding parameter enables to choose the heating time by inputting out diameter of pipe to be welded.
3. Socket fusion is the oldest and most economical method of fusing.
4. Socket fusion is used for gas, plumbing, water, waste water, industrial piping, mining and oil patch applications.
5. The structure design complies with DVS2208
6. Limited two-year warranty.

Package:

After-sales Service:

We always provide high quality products and workable price for every clients and have won the trust,

enjoy a good reputation in the market.
Machine Quality Guarantee: 24 months.--If any parts broken or does not work under normal operating,

we provide them for free!
