| Categories | Spring Snap Hook |
|---|---|
| Brand Name: | LKY |
| Model Number: | 322 |
| Certification: | CE, ISO |
| Place of Origin: | CHINA |
| MOQ: | 1 ton |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 200 tons per month |
| Delivery Time: | 60 days |
| Packaging Details: | Carton + Pallet |
| Product Name: | 322 US Type Lifting Swivel Hook |
| Material: | Carbon Steel, alloy |
| Surface: | Color Painted |
| Size: | M32 - M105 |
| Packing: | Cartong + Pallet |
| WLL: | 0.5 - 30 tons |
| Company Info. |
| HUIXING INDUSTRY (QINGDAO) CO.,LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |

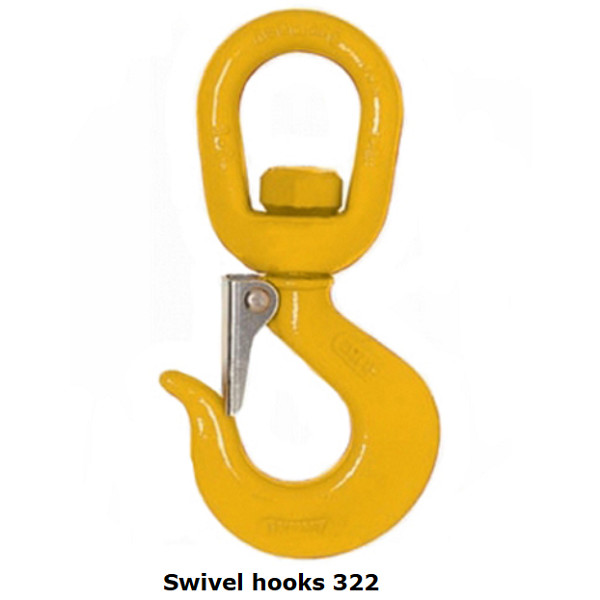

Sweivel hooks 322 is more flexible and convenient than other solid hooks, bacause its lifting angel and rotation angle can be changed aibitratrily. Their work load limited is different according to their material quality. The maximum test load is 2 times of work load, and the minimum break load is 4 times of work load.
Product details:
1. Item: Swivel hooks 322
2. Type: US type
3. Material: alloy steel or carbon steel
4. Surface: zinc plated or color painted
5. Technology: drop forged
6. WLL: A322:1T-11T/ C322:0.75T-7.5T
7. Breaking load: 4 times of working load
8. Usage: lifting, rigging
9. Size: 0.75lbs-16.25lbs
Special specifications and marks can be made according to customers requirement

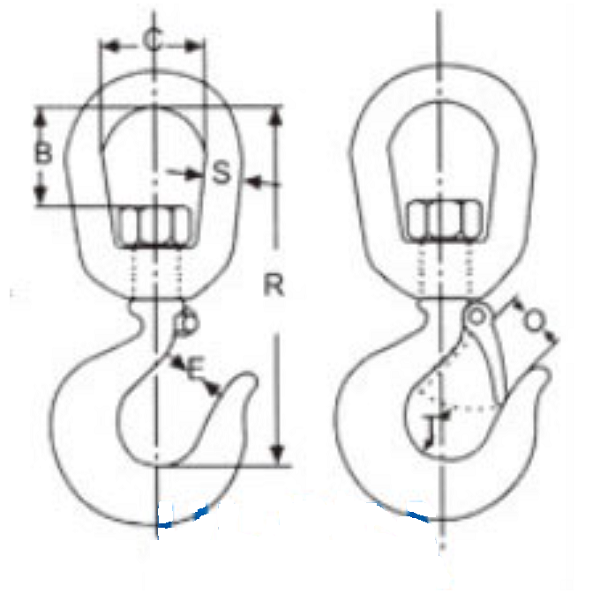

Specification:
| W.L.L.(T) | Dimention(in) | Weight | |||||||
| 322C | 322A | B | C | E | R | S | T | O | lbs |
| 0.75 | 1 | 0.94 | 1.25 | 1.31 | 4.47 | 0.38 | 0.81 | 0.87 | 0.75 |
| 1 | 1.5 | 1.31 | 1.5 | 1.03 | 5.28 | 0.5 | 0.81 | 0.97 | 1.25 |
| 1.5 | 2 | 1.63 | 1.75 | 0.06 | 6.02 | 0.63 | 0.84 | 1 | 2.25 |
| 2 | 3 | 1.56 | 1.75 | 1.22 | 6.38 | 0.63 | 1.19 | 1.13 | 2.57 |
| 3 | 4.5 | 1.75 | 2 | 1.5 | 7.41 | 0.75 | 1.37 | 1.34 | 4.75 |
| 5 | 7 | 2.31 | 2.5 | 1.88 | 9.59 | 1 | 1.78 | 1.69 | 10.29 |
| 7.5 | 11 | 2.37 | 2.75 | 2.25 | 11.13 | 1.13 | 2.13 | 2.06 | 16.25 |
