Medical High Accuracy Weighing Scale Sensor With 0.6M Cable Length

Categories Weight Scale Sensor
Brand Name: Ruijia
Model Number: RJ-6502
Place of Origin: China
Operating Temperature Range: -20~+60 ℃
Safe Overload: 120 %FS
Material: Aluminum Alloy
Creep(5min): 0.02 %FS
Hysteresis: 0.02 %FS
Insulation Resistance: ≥5000 MΩ(100VDC)
Cable length: 0.6 Mm
Output Resistance: 1000±10 Ω
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Medical High Accuracy Weighing Scale Sensor With 0.6M Cable Length

Product Description:

Weighing Scale Sensor is designed for medical scales with a low profile load cell. It provides high accuracy with its sensitivity of 1.0±0.2mV/V or 1.5±0.2mV/V and non-linearity of 0.05%FS. This load cell ensures reliable performance in a wide range of temperature, from -20℃ to +60℃. In addition, it is equipped with a high overload protection of 120%FS and IP65 protection for better safety. This medical scale load cell is an ideal choice for medical scales due to its low profile design and excellent performance.

Features:

  • Product Name: Weighing Scale Sensor
  • Output Resistance: 1000±10 Ω
  • Non-linearity: 0.05 %FS
  • Input Resistance: 1090±30 Ω
  • Temperature Effect on Zero: 0.05 %FS/10℃
  • Zero Balance: ±2 %FS
  • Low Profile Load Cell: Yes
  • Thin Load Cell: Yes
  • Planar Beam Load Cell: Yes

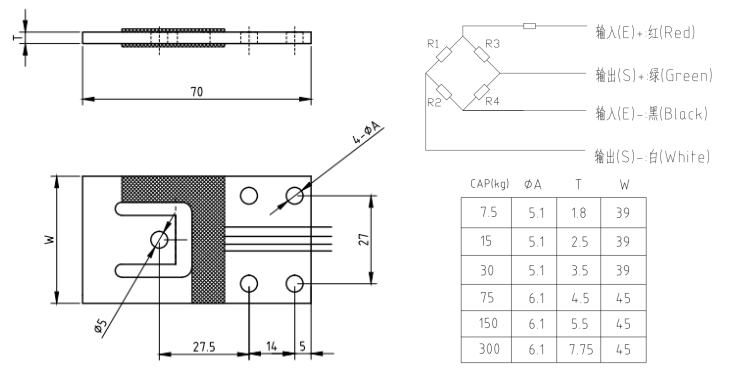

Dimensions:

Technical Parameters:


CapacityKg7.5153075150300
SensitivitymV/V

1.0±0.2

1.5±0.2
Creep(5min)%FS

0.02

Linearity Error%FS0.05
Hysteresis Error%FS0.02
Repeatability Error%FS0.02
Input ResistanceΩ1090±30
Output ResistanceΩ1000±10
Insulation ResistanceM Ω≥5000(100VDC)
Zero Balance%FS±2
Temperature Effects on Span%FS/10℃0.05
Temperature Effect on Zero%FS/10℃0.05
Rated Temperature Range-10~+40
Operating Temperature Range-20~+60
Proposed Excitation VoltageV6~12
Allowed Excitation VoltageV3~15
Safe Overload%FS120
Ultimate Overload%FS150
ProtectionIP65
Cable specificationmmΦ3.8UL & Φ1Electronic wiring
Cable lengthm0.6
MaterialAluminum Alloy

Customization:

Weighing Scale Sensor - Customized Service

Ruijia RJ-6502 Weight Scale Sensor is a low profile load cell, planar beam load cell, and planar beam load cell, made of aluminum alloy material with great strength. Its Zero Balance is ±2 %FS, Non-linearity is 0.05 %FS, Output Resistance is 1000±10 Ω, Hysteresis is 0.02 %FS, and its Place of Origin is China.

Support and Services:

Weighing Scale Sensor Technical Support and Service

Weighing Scale Sensor is committed to providing technical support and service for our customers. Our aim is to ensure that our products are working properly and efficiently, and that our customers are receiving the best service possible.

We provide assistance via phone, email, and online chat. Our team of experienced customer service representatives are available to answer any questions you have about using our products. We also offer troubleshooting and advice to help you resolve any issues you may be having.

We are dedicated to providing our customers with the highest quality support and service. If you have any questions or concerns, please do not hesitate to contact us. We look forward to helping you get the most out of your Weighing Scale Sensor products.
